1) Description and feature

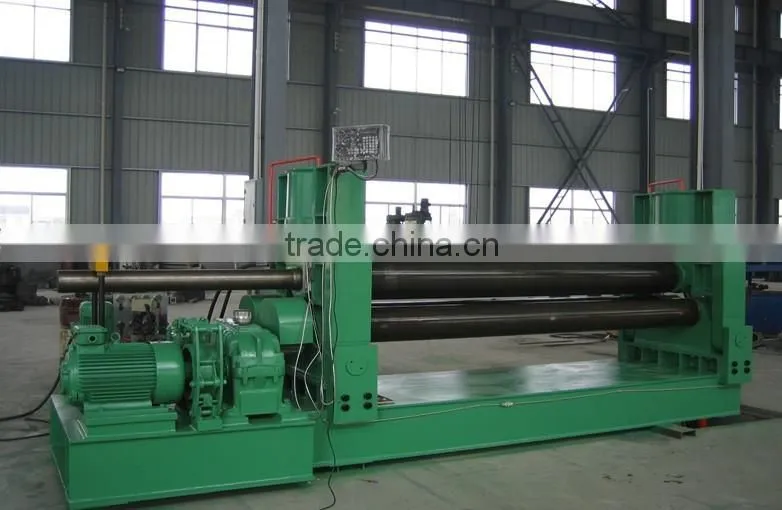

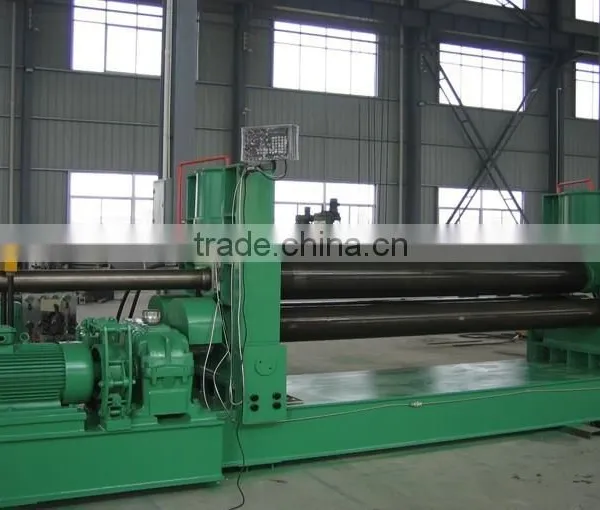

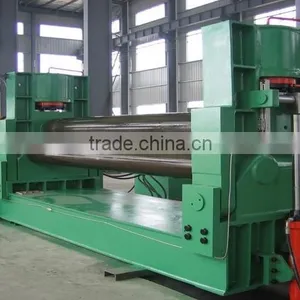

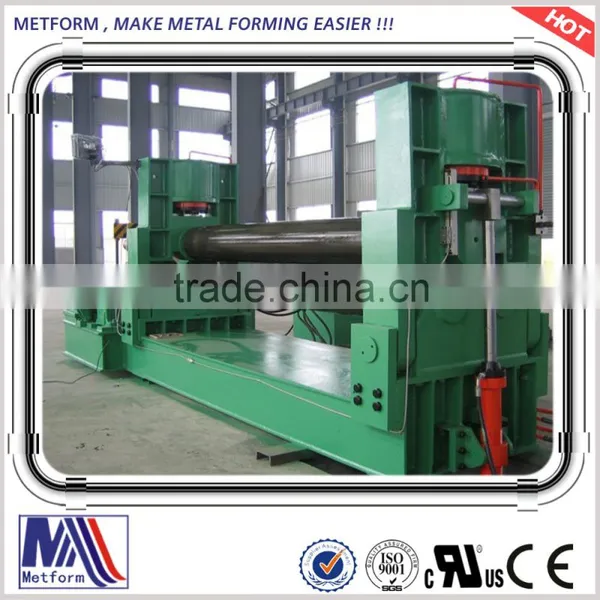

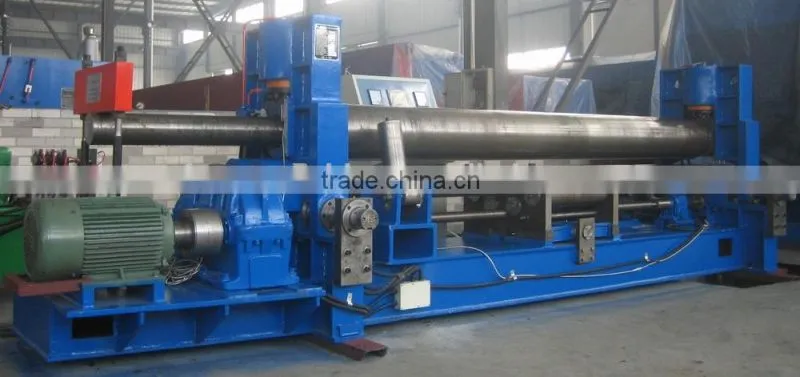

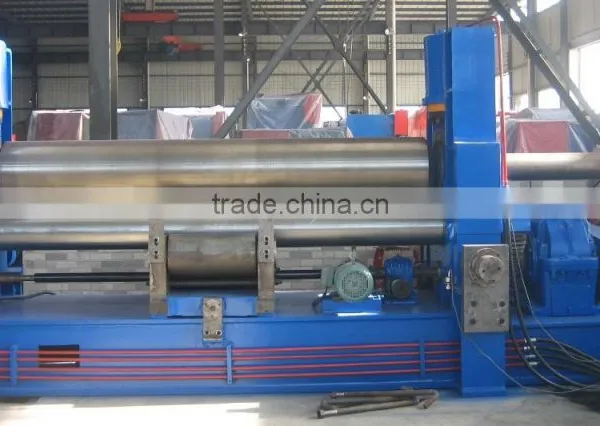

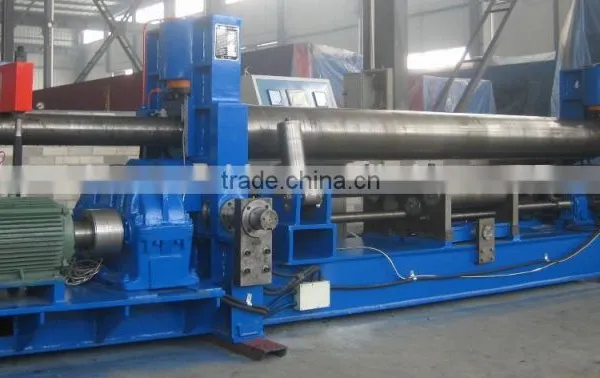

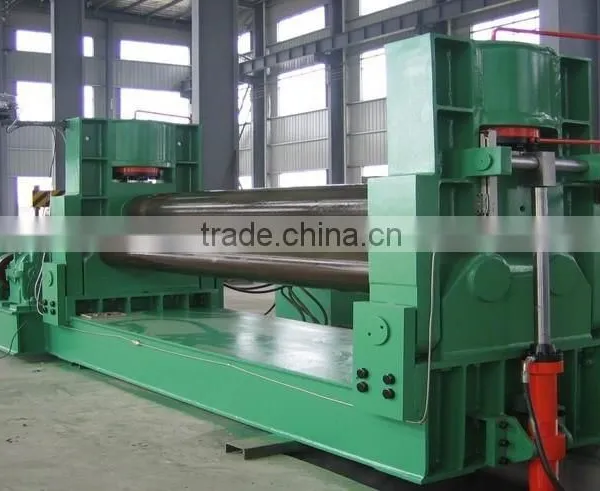

With 3-roller structure the Universal Bending machine is high reliable and high precision Roll form machine. It is capable of conical rolling. The machine is consist of upper roller assembly, horizontal moving unit, lower roller unit, supporting roller unit, driving gear, hydraulic tilting unit, counterbalance, stand and base, Hydraulic system and electric system.
The upper roller is made of forged alloy steel 42CrMo4, hardened and ground in crown shape. It is pressed by 2 cylinders at pressure 19.5 Mpa. It is moved vertically by hydraulic cylinder and horizontally by motor driving in operation.
High precious pre-bending.
Suitable for different bending shape
High efficiency with NC control.
With OMRON intelligent high-speed PLC, the control system has function of upper roller position control, machine monitoring and inter-locking, storage and recalling in power failure.
Hydraulics system and Electrics are from famous brand, like Siemens, VALQUA, Parker.
2)Specification
Pressure force on upper roll: 30,000 N
Max. bending Thickness: 8 mm
Max. pre-bending thickness: 6 mm
Min. bending diameter: 500 mm
Working Length: 2000 mm
Upper roller Dia.: 205 mm
Bottom Roller Dia.: 125 mm
Centre Distance between bottom roll: 160
Main Motor: 3 kw
Hydraulic motor: 2.2 kw
Moving Motor: 0.75kw
Overall Dimension: 3500*1400*1400 mm
3) bought-in component List
S.N. |
Components |
Description |
Manufacturer |
1 |
Upper roller |
42CrMo4(4140) |
China |
2 |
Lower roller |
C45E(1450) |
China |
2 |
Bearings |
DOUBLE ROW SELF-ALIGNING BEARINGS |
China |
3 |
Main motor |
YZR series motor |
Simens(China) |
4 |
Hydraulic valve |
All valves |
Taiwan |
7 |
PLC |
C200HE-CPU |
ORMON(Japan) |
8 |
Touch screen |
NT20-ST |
TouchWin(Canada) |
9 |
encoder |
|
China |
1 Packaging Details: green wood.
2 Fix with chanle steel to be make stable.
3 Accessories packging separate.
4 Sign core point.
ONE YEAR WARRANTY AFTER SALES.
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equipment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses, metalworking machines,coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mills.
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
