Specifications
Hydraulic Ring Section Bender Series1.payment T/T
2.Min. order 1 set
3.origin shanghai
petitive price

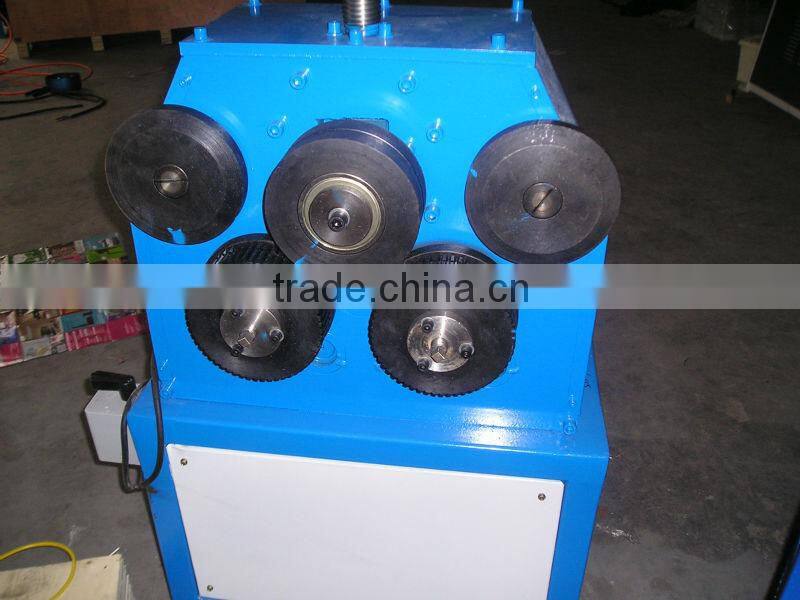

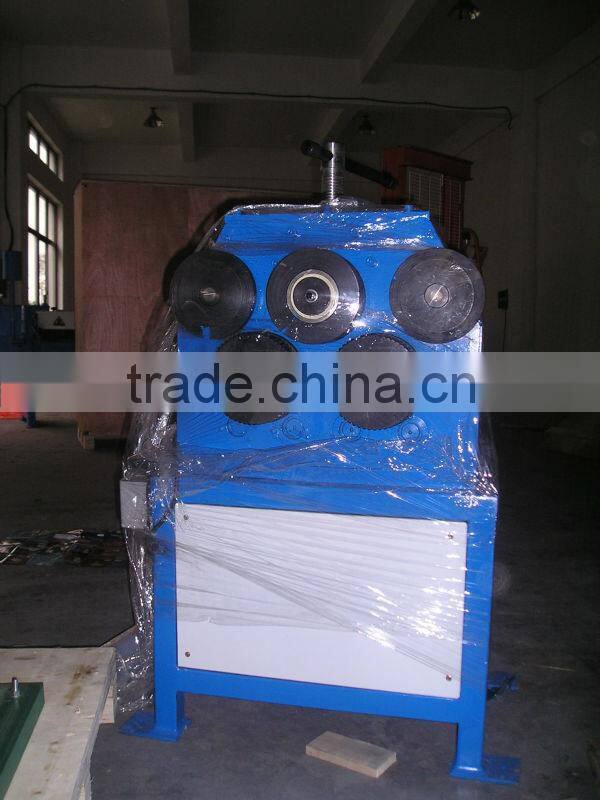

Hydraulic Ring Section Bender Series1. Scope of Supply and Technical Specification Perfectly complete pre-bending, rolled-up, roll calibrate. Working principle: two down rollers as main driving roller, or all three rollers as main driving roller, with upper roller fixed and two down rollers do up-and-town movement around one fixed center. Well hydraulic control, displacement liquid-crystal display with accuracy+_0.1mm.The two touch steel stick permit the good finishing quality of asymmetric plate section bending. Advanced and compact structure with full function . The yield strength bended profile with 245Mpa (Max).Full function, complicated structure, high precision.
1) Angle Steel Rolling Bending Machine FM-JY50 Max. size of angle steel to be bended: 80×80×58mm Yield limit: ≤245 Min. angle steel 20×20×2 mm Min. bending diameter: φ300(mm) Speed: 2m/min Main motor: 4kw Dimension: 820*560*1200mm Weight: 540kg
FAQs: Q:How to get a accurate quotation from us? A:provide us the detail of the material such as metal thickness and width Q:what’s the shipping cost from China to your country? A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery. Q: How to check imported charges or tax ? A:Call your l them machine HS code. Spiral duct forming machine is 8455229090 Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900 Q:Payment terms,MOQ,warranty,FOB... A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery minimum order quantity:1 set,FOB Shanghai. delivery time :20days after receipt of formal order and 30% deposit. warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us. Q: what’s the package? A:fumigation-free plywood case or without package Q:How to operate this machine ? A:video link of our factory .......or we send you the movie directly Q:what about commissioning service ? A:we can offer commissioning service,the buyer need to afford plane tickets Q:Do you offer teaching&training ? A:Training at supplier’s plant Q: what’s policy for guarantee and broken parts? A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
|
