METFORM , MAKE METAL FORMING EASIER!

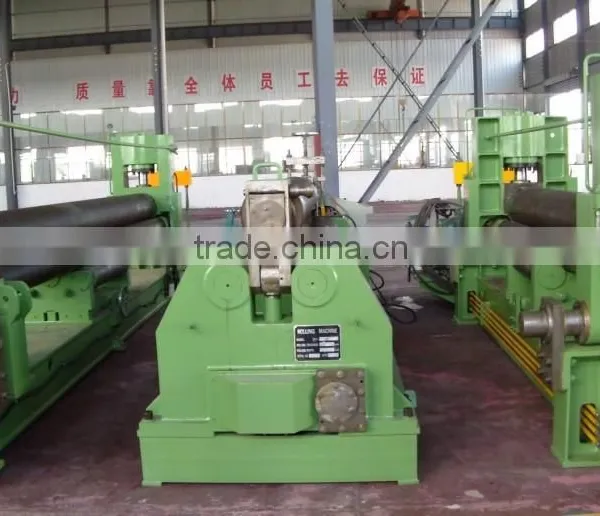

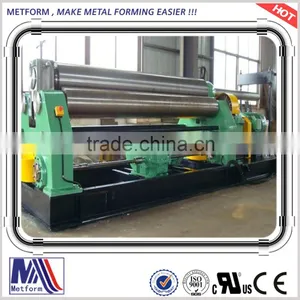

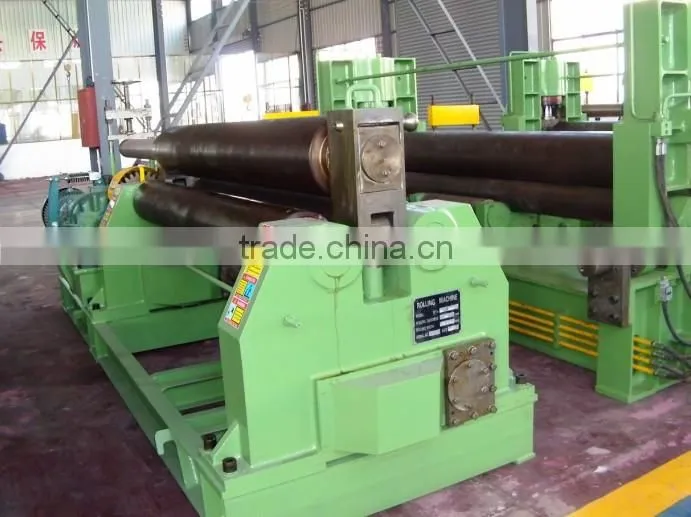

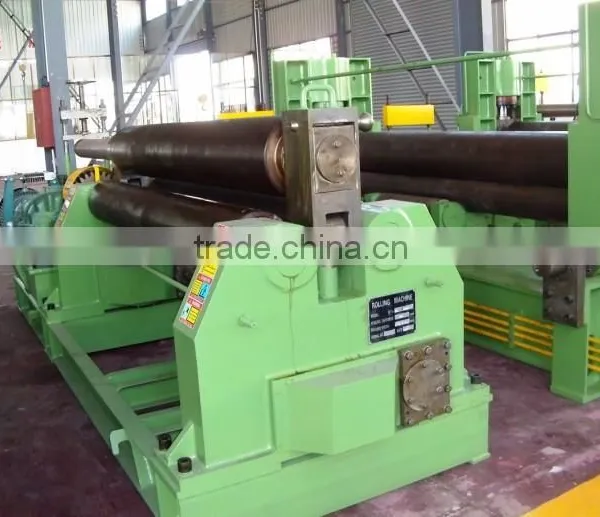

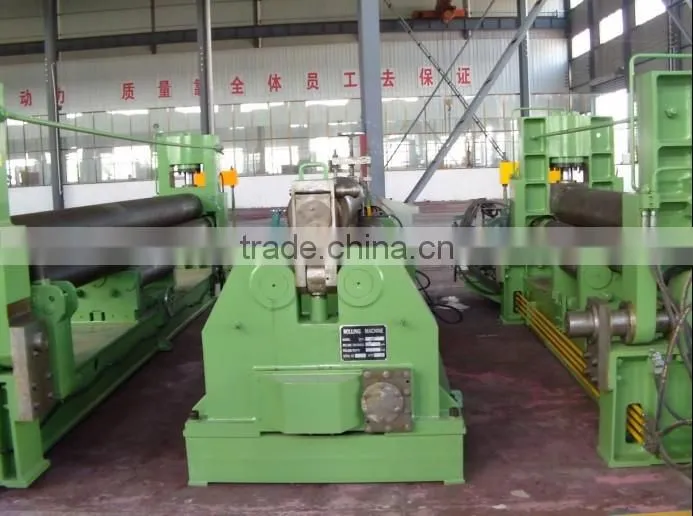

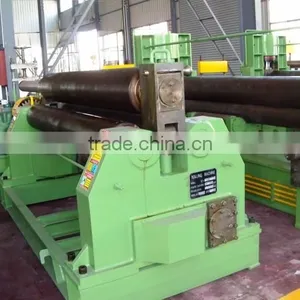

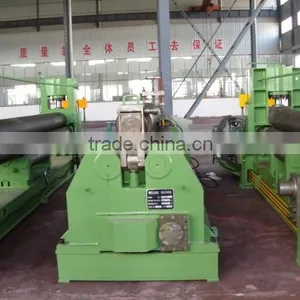

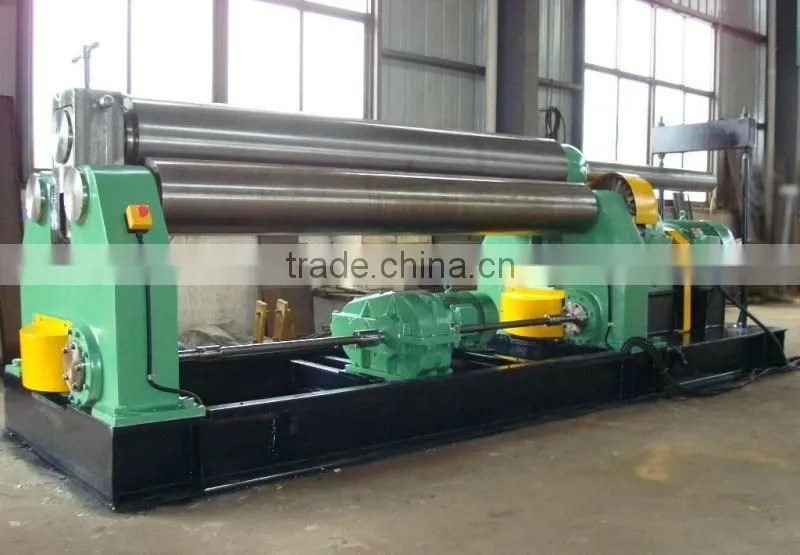

Plate rolling machine,Roll forming machine, roll bending machine W11 6X2500
Features
1. The Machine designed based on Germany Technology
2. Upper-roll fixed, the two bottom rollers go up and down in arc around a fixed center simultaneously or separately.
3. Pre-bending, rolling and round calibration can be completed in one pass (without turn the plate back).
4. All 3 rollers are driven, which ensure better feeding and bending both in thick and thin plate.
5. Due to the close location of the three roll, the small diameter rolling and round calibration can be achieved.
6. Easy to operate, diversification rolling available.
7. Very little fault in roller movement.
8. During rolling, plate is always in a state of clamping by roller, which avoid plate sliding.
9. All three roll are in same diameter.
10. Rollers can be open to any work position to release the work piece out, no need to reach the top position.
11. Microcomputer control, synchronization accuracy of ± 0.2mm.
Specification
1. Max. bending thickness: 6 mm
2. Max. bending width: 2500 mm
3. Min bending tube in max. thickness and width: 600 mm
4.Roller Diameter: 170-185 mm
5.Rolling Speed: 5 m/min
6. Motor: 5.5 kw
7. Overall Dimension: 4200*820*1050 mm
Other Types:
| Specification | Maximum thickness | Maximum width | Yield strength | Coil speed | Loaded with the minimum diameter | On the roll diameter | Under the roll diameter | Lower roll center distance | Main motor power |
| W11-6×1500 | 6 | 1500 | 245 | 7.16 | 380 | 180 | 170 | 210 | 4 |
| W11-6×2000 | 6 | 2000 | 245 | 7.16 | 380 | 180 | 170 | 210 | 5.5 |
| W11-6×2500 | 6 | 2500 | 245 | 7.16 | 500 | 190 | 170 | 260 | 5.5 |
| W11-6×3200 | 6 | 3200 | 245 | 6.46 | 500 | 240 | 200 | 310 | 7.5 |
| W11-8×2000 | 8 | 2000 | 245 | 7.16 | 450 | 190 | 170 | 260 | 7.5 |
| W11-8×2500 | 8 | 2500 | 245 | 6.46 | 500 | 240 | 200 | 310 | 11 |
| W11-12×2000 | 12 | 2000 | 245 | 6.46 | 500 | 240 | 200 | 310 | 11 |
| W11-12×2500 | 12 | 2500 | 245 | 5 | 750 | 280 | 240 | 360 | 11 |
| W11-12×3000 | 12 | 3000 | 245 | 5 | 650 | 280 | 240 | 360 | 11 |
| W11-16×2000 | 16 | 2500 | 245 | 5 | 750 | 280 | 240 | 360 | 11 |
| W11-16×2500 | 16 | 2500 | 245 | 5 | 750 | 330 | 240 | 360 | 11 |
| W11-16×3000 | 16 | 3000 | 245 | 5 | 900 | 340 | 280 | 440 | 11 |
| W11-20×2000 | 20 | 2000 | 245 | 5 | 750 | 280 | 240 | 440 | 11 |
| mm | mm | Mpa | M/min | mm | mm | mm | mm | kw |
PICS REFERENCE
1 Wood case for packaging by sea.
2 Fix with chanle steel to be make stable.
3 Accessories packging separate.
4 Sign core point.
Engineers available to service machinery overseas.
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Machinery Equipment: seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses.
Metalworking Machines: coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mills.
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
