- Description and Feature

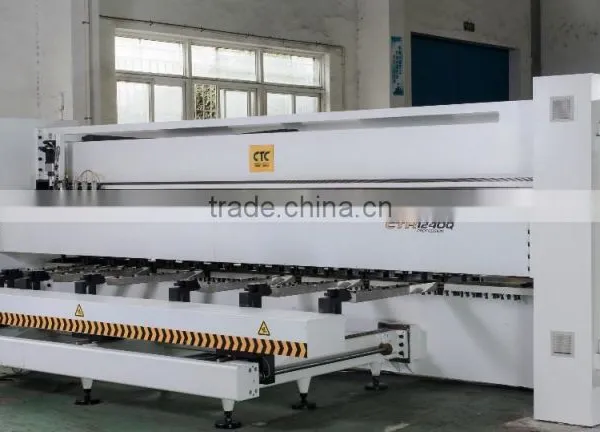

The machine is designed for cutting Grooves on metal sheets and plates, such as steel, aluminum, aluminum, copper, plastic, wood and acrylic panels. It is especially and widely used in Stainless sheet decoration field, to make V grooves before bending.
Vertical bolted machine frame, Whole frame stress annealed.
Open-architecture CNC controller, extensible for new function
3-blade cutting head, working with high efficiency.

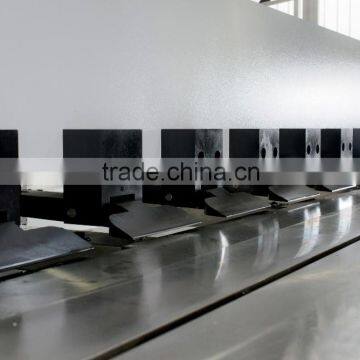

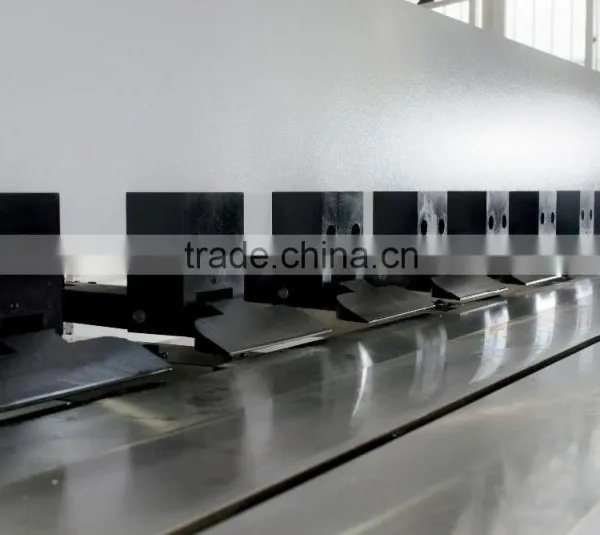

Wool brush and ball bearing front sheet support arms, movable and foldable, which ensure convenient operation and avoid scratching sheet surface.
Pneumatic lever clamping pad unit
Adjustable alloy steel working table, hardened, high strength, high precision and high wearability.
Powerful chip blowing system, Spray Cooling system

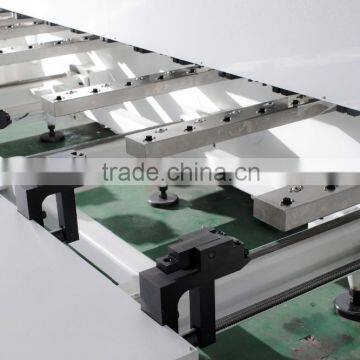

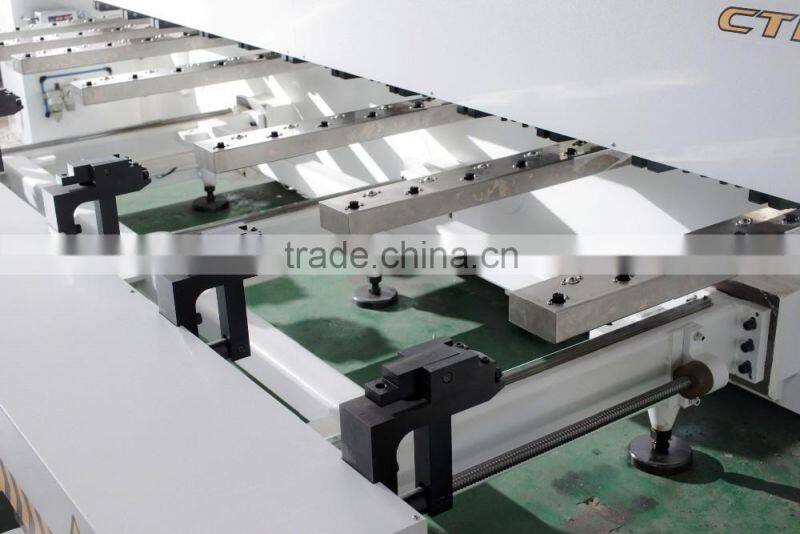

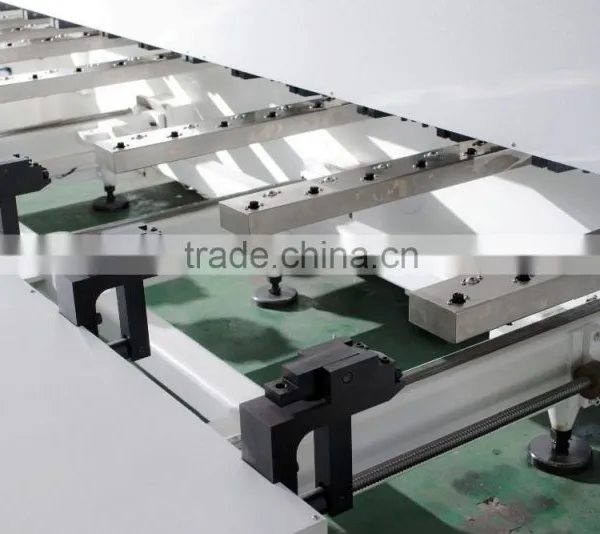

Back gauge equipped with linear rail and THK ball screw, wool brush and ball bearing back table with pneumatic clamps
Bought-in Parts and Components are World top class, THK high speed Liner Guide Rail, Panasonic AC Servo Motor, NEUGART Planetary Reducer, Schneider Electric Components, NSK Bearings, IGUST Power cable and Cable Towline, SMC Pneumatic systems, HERG Lubricating system.
HUST H6DKL-3 CNC system from Taiwan(Italian S510GW for option)
2. Main technical data
Term |
unit |
CTK1240Q |
CTK1260Q |
|
Max. sheet length |
mm |
4000 |
6000 |
|
Sheet width |
H12 |
mm |
9-1250 |
|
H17 |
9-1750 |
|||
H20 |
9-2050 |
|||
Thickness |
mm |
0.5-6 |
||
Max. speed in X axis |
m/min |
155 |
200 |
|
max. speed in Y axis |
m/min |
20 |
||
max. speed in Y axis |
m/min |
8 |
||
Y.Z repeat positioning accuracy |
mm |
±0.01 |
||
Blade Carrier Stroke |
mm |
100 |
||
X axis Motor Power |
kw |
3 |
4 |
|
Y axis Motor power |
kw |
2 |
3 |
|
Z axis Motor power |
kw |
0.75 |
||
Net Weight |
kg |
11,500 |
18,000 |
|
Overall Size |
H12 |
mm |
6300×3200×2200 |
6300×3200×2400 |
H17 |
6300×3700×2200 |
6300×3700×2400 |
||
H20 |
6300×4000×2200 |
6300×4000×2400 |
||
