2016 New Designed High performance-price ratio CNC Turret Punching Press

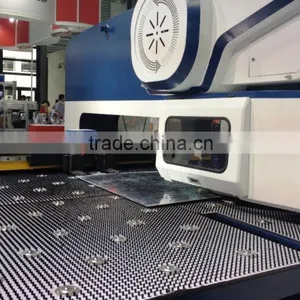

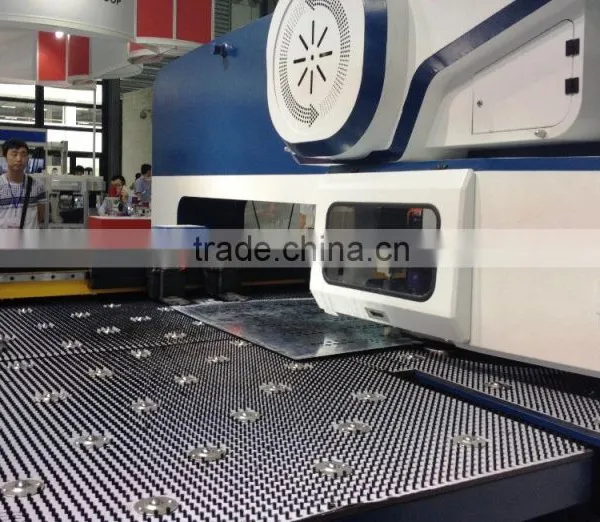

CNC Turret Press D-T3024X2 machines is an outstanding machine for punching and forming. And it is ideal for manufacturing a variety of products such as precision enclosures, control cabinets, and aerospace parts.
1. Description and Features
High Speed, Reliable and Good Cost-Effective.
2016 new designing, nice appearance
Mechanical punching press, stable, reliable and easy for operation and maintenances

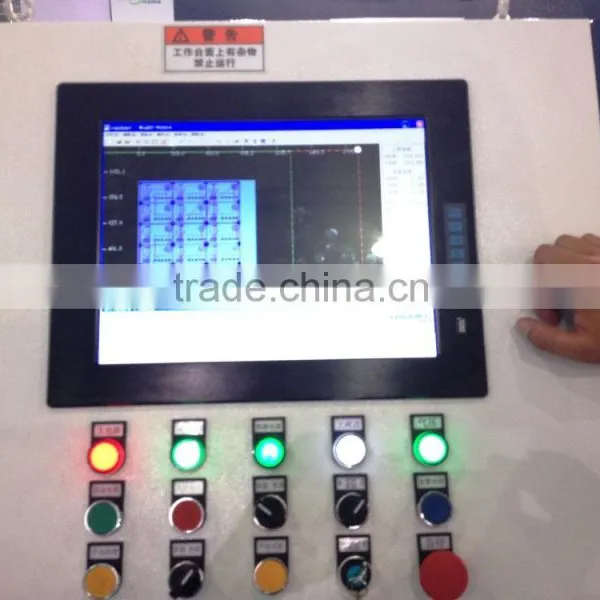

Independently developed CNC system.
Automatic reposition function, better for large volume production.
Unique designed, Automatic adjustable auxiliary table, for convinience of exchanging mould.
O type close press house, weld structure, stress relief annealed.
Specific clamp retract function. Automatic protection for the Clamps and no dead area for punching on sheet.
Centralized lubricating system

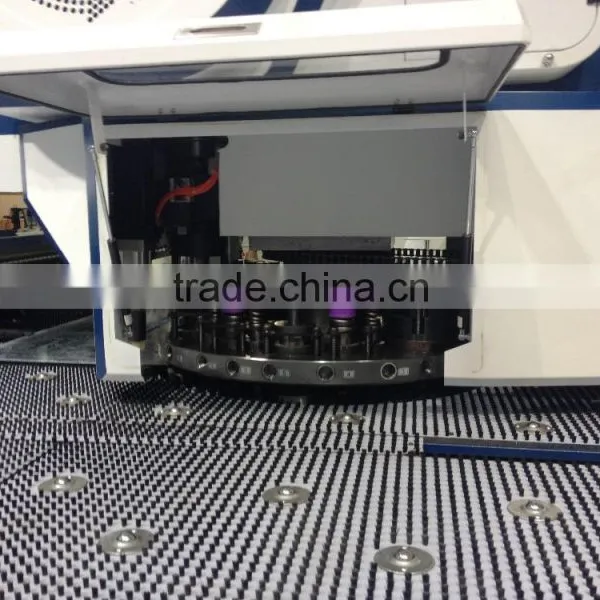

Die station allocated in Turret.
Station Type |
Tool Size(mm) |
16 station Turret |
20 station Turret |
24 station Turret |
32 station Turret |
A |
Φ1.5-φ12.7 |
6 |
8 |
12 |
16 |
B |
φ12.7-φ31.8 |
6 |
8 |
8 |
12 |
C |
φ31.8-φ50.8 |
2 |
2 |
2 |
2 |
D |
φ50.8-φ88.9 |
2 |
2 |
2 |
2 |
Turret Customized is available.
2. Specification
Punching Capacity KN 300
Max. sheet size mm 2500×1250
If repositioning 5000×1250
Max. thickness mm 4
Die Stations 24, including 2 auto index sttion
Distance accuracy between holes ±0.1 mm
Rate Hit rate HPM 280
Max. Feeding Speed m/min 80
Life Cycle of punching Die 500,000.00 hits
3-Axis Controlled X-Axis, Y-Axis and T
PneumaticClamps 2
Power Supply W 7200
Pneumatic pressure MPa 0.55
Overall Size mm 5000×4000×2100
Net weight kg 11500.
1. Instruction of Installation and Operation training are free
2. 1 Year warranty counting from delivery
Q: Why Metform's CNC Turret Press?
A: 1. Sheet Metal Mchinery expert in China
2. Best Price-Performance Ratio
3. Technology inherited from Germany, Reliable, Good appearance and high efficient.
4. After sales service, convenient and thoughtful for customer.
