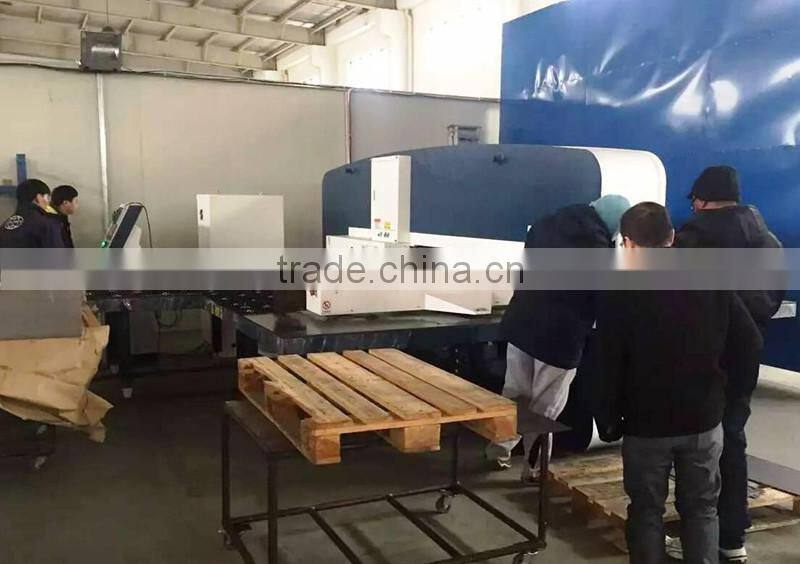

High Quality CNC mechanical punching Machine turret hole punching machine
D-T30 machines(D-T3016/D-T3020/D-T3024/D-T3032) areoutstanding machines for punching and forming. And it is ideal for manufacturing a variety of products such as precision enclosures, control cabinets, and aerospace parts.
1. Description and Features
- High Speed, Reliable and Good Cost-Effective.
- Mechanical punching press, stable, reliable and easy for operation and maintenances
- Independently developed CNC system, which will be upgraded periodically, and allow automatic conversion and punching from Auto CAD.
- Automatic reposition function, better for large volume production.Metform Control unit: the industrial integration PC, shockproof, suitable for anti-jamming workstation work environments.
- Inserted-sleeve Turret ensuing axiality of upper and down punching die as well as long usage life
- Electric and Pneumatic are famous brandlinear guide way and precision ball screw.
- metform Table surface with nylon brushes and balls, Unique designed, adjustable auxiliary table, for convinience of exchanging mould.
- O type close press house, weld structure, stress relief annealed.Specific clamp retract function.
- Automatic protection for the Clamps and no dead area for punching on sheet.
- Centralized lubricating system
Die station allocated in Turret.
Station Type |
Tool Size(mm) |
16 station Turret |
20 station Turret |
24 station Turret |
32 station Turret |
A |
Φ1.5-φ12.7 |
6 |
8 |
12 |
16 |
B |
φ12.7-φ31.8 |
6 |
8 |
8 |
12 |
C |
φ31.8-φ50.8 |
2 |
2 |
2 |
2 |
D |
φ50.8-φ88.9 |
2 |
2 |
2 |
2 |
Turret Customized is available.
2. Specification
Punching Capacity KN 300
Max. sheet size mm 2500×1250
If repositioning 5000×1250
Max. thickness mm 4
Die Stations 24, including 2 auto index sttion
Distance accuracy between holes ±0.1 mm
Rate Hit rate HPM 280
Max. Feeding Speed m/min 80
Life Cycle of punching Die 500,000.00 hits
3-Axis Controlled X-Axis, Y-Axis and T
PneumaticClamps 2
Power Supply W 7200
Pneumatic pressure MPa 0.55
Overall Size mm 5000×4000×2100
Net weight kg 11500.
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equipment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses, metalworking machines,coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mill,CNC Turret Punching Press Machine.
High Quality CNC mechanical punching Machine turret hole punching machine
1. Instruction of Installation and Operation training are free
2. 1 Year warranty counting from delivery
Q: Why Metform's CNC Turret Press?
A: 1. Sheet Metal Mchinery expert in China
2. Best Price-Performance Ratio
3. Technology inherited from Germany, Reliable, Good appearance and high efficient.
4. After sales service, convenient and thoughtful for customer.
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q: You are Manufacturer or trading company?
A: We are 100% manufacturer with 17 year's manufacturing experience
Q: Can you do OEM service?
A: Yes, we can. Your design is accepted. Your own logo can be used on the machine.
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane.
Please kindly tell us your nearest port or address with postcode.We have
reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.
rolling machine is 8455229090,seam welding machine is 85152900
Q: Do you accept LC payment?
A: Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares
caused by quality can be offered free.
