Gantry Type CNC Sheet Metal V Grooving Machine/Slotting Machine/V Groove Skiving Machine CTL1240Y/CTL1260Y
- Description and Feature
The machine is designed for cutting Grooves on metal sheets and plates, such as steel, aluminum, aluminum, copper, plastic, wood and acrylic panels. It is especially and widely used in Stainless sheet decoration field, to make V grooves before bending.

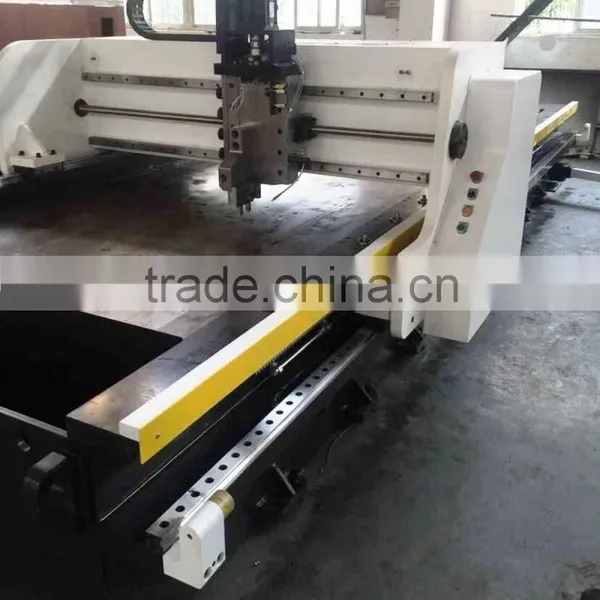

Gantry type machine, alloy steel welded structure, and whole frame stress annealed, having good rigidity and strength and durability.
Whole table planed in house with good flatness
Open-architecture CNC controller, extensible for new function
3-blade cutting head, working with high efficiency.
High speed sliding Blade Carrier, driven through Ball screw and Linear Guide rail, with high repeat positioning accuracy.
Hydraulic clamping pad unit
Spray Cooling system

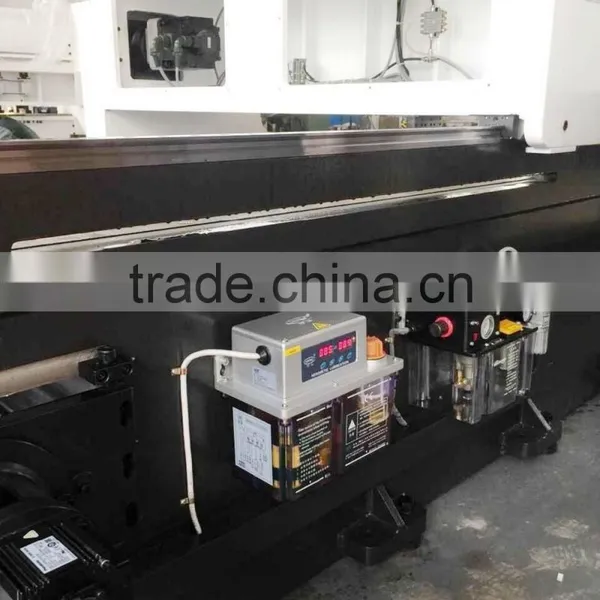

Bought-in Parts and Components are world top class, Parker hydraulic piping and fittings, THK hydraulic and heavy duty Linear Guide Rail, Panasonic AC Servo Motor, Newcastle Planetary Reducer, Schneider Electric Components, NSK Bearings, IGUST Power cable and Cable Towline, YUKEN hydraulic Valves, HERG Lubricating system, R+W Coupling.
HUST H6DKL-4 CNC system from Taiwan
2. Main technical data
Term |
unit |
CTL1240Y |
CTL1260Y |
|
Max. sheet length |
mm |
4000 |
6000 |
|
Sheet width |
K12 |
mm |
12-1250 |
|
K15 |
12-1550 |
|||
Thickness |
mm |
0.5-6 |
||
Max. speed in X axis |
m/min |
80 |
||
max. speed in Y axis |
m/min |
96 |
||
max. speed in Z axis |
m/min |
15 |
||
Y.Z repeat positioning accuracy |
mm |
±0.01 |
||
Blade Carrier Stroke |
mm |
100 |
||
X axis Motor Power |
kw |
5 |
||
Y1,Y2 axis Motor power |
kw |
1 |
||
Z axis Motor power |
kw |
1.5 |
||
Net Weight |
K12 |
kg |
11,000 |
16,500 |
K15 |
13,700 |
20,600 |
||
Overall Size |
K12 |
mm |
6020×2354×1592 |
8020×2354×1592 |
K15 |
6020×2654×1592 |
8020×2654×1592 |
||
