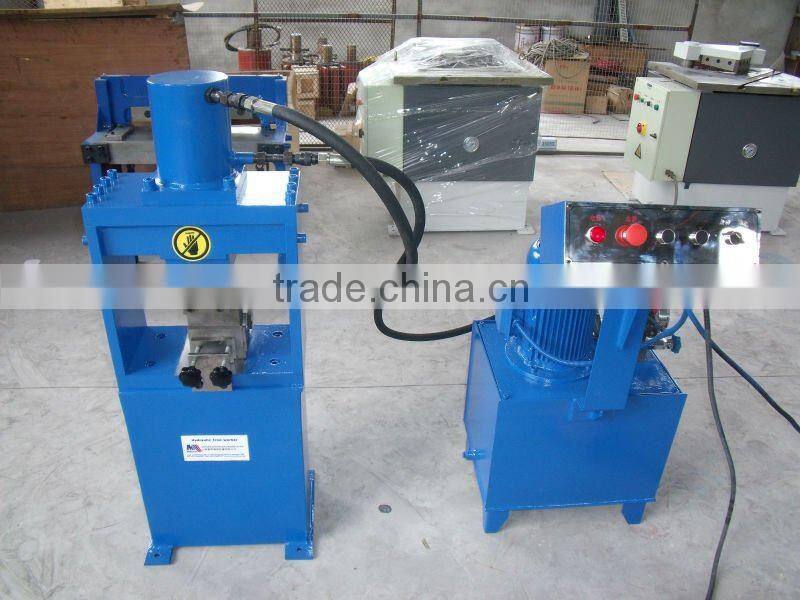

Angle steel bending machine
- 5 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Shanghai, China | Brand Name: | Metform | Model Number: | BM-75 |
Product Description
Specifications
Angle steel bending machine1.High Speed Operation
2.Robust Compact Design
3.lower price
Angle steel bending machine
Angle iron bending cutting punching machine
1. Features
Angle corner cutting, punching, bending machines and other processing
1. contribute 23Ton, weight 50kg
cessing angle size: 75 × 75 × 6mm
3.can be achieved by replacing the mold
4. cut, angle cutting , angle bending, hole punch function
5. Body size: 320 × 220 × 300mm (L × W × H)

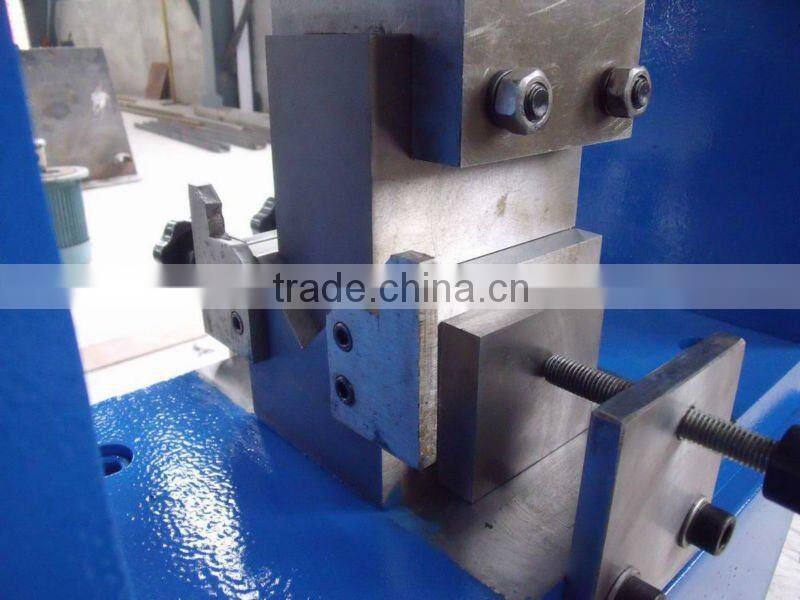

6.Standard: host and bending die, 45-degree cutting angle die.
90 ° cutting angle die, cutting die
7.Optional: round, oval-shaped punching die
8.Weight:300kg
Multifunctional, Dual worktable
Rectangular notching at main table and hole punching at auxiliary table.
Foot Switch control
Notching blade gap adjustable
T-Slotted main table, recessed measuring scales on both tables
Chute stops on both tables
Blade suitable for mild or stainless steel
3 guide pillar Structure delivers high rigidity which assures unmatched cutting precision and blade life.
Easy maintenance
2. Specification
Model | QF28Y-6*200ZA | |
function | Hole Punching | Rectangle cutting |
Capacity mm | Dia.25 | L50×W100 |
Max. sheet thickness 6mm(Q235) 3mm(Stainless) | ||
Working Table Dimension mm | 530×430 | 1000×660 |
Working table height mm | 850 | |
Overall dimension mm | 1800×1250×1310 | |
Motor kw | 4 | |
Weight kg | 1650 | |
Oil Tank L | 60 |
