Section Bending Machine W24Y-30
- 5 Set / Sets per Month
- Shanghai
- T/T Credit Card
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Metform, Metform | Model Number: | W24Y-30, W24Y-30 |
Machine Type: | Beading Machine | Raw Material: | Steel Bar | Material / Metal Processed: | Carbon Steel |
Power: | Other, Hydraulic, hydraulic | Automation: | Automatic | Extra Services: | Other |
Certification: | ISO 9001:2000 |
Product Description
Specifications
Section Bending machine W24Y-301.Heavy duty steel fabricated frame

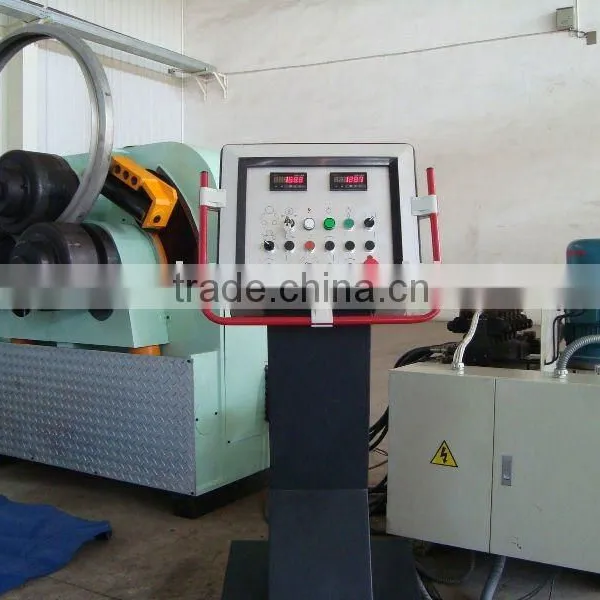

2. Roving electrical box control with forward/reverse
Section Bending Machine W24Y-30
Profile bending machine, angle roll, tube/bar bending machine
Profile roll bending machine W24Y-30 is a versatile, economical yet powerful universal profile bender with hydraulic forming. It is easy to operate and is well suited for bending angle, pipe, tube, aluminum extrusions and other sections. This model will save you set up time.
Both Horizontal and Vertical Working Positions
Double pinch hydraulic forming rolls.
Hardened precision threadedx shafts.
Dual adjustable lateral guides
Rolls are driven via 3 separate hydraulic motor
Lower rolls hydraulic moveable up and down.
Technical Specification
The Machine is designed for max. Bending section modulus 30 cm 3 and the capacity is calculated on basis of yield strength 245 MPa.
Capacity:
Flats, Hard Way | Max. section 90x25mm, Min. Bending Dia. Ø900mm |
Flats, Easy Way | Max. section 180x25mm, Min. Bending Dia. Ø800mm |
Angle, Leg-out | Max. section 90x90x10mm, with Min. Bending Dia. Ø1000mm Min. section 35x35x3mm,with Min. Bending Dia. Ø500mm |
Angle, Leg-in | Max. section 90x90x10mm, with Min. Bending Dia. Ø1200mm Min. section 35x35x3mm,with Min. Bending Dia. Ø560mm |
Channel, Leg-out | Max. section 180x70mm, Min. Bending Dia. Ø900mm |
Channel, Leg-in | Max. section 180x70mm, Min. Bending Dia. Ø1000mm |
Round Bar | Max. section 62mm, Min. Bending Dia. Ø600mm |
Round Tube | Max. section 89x5mm, Min. Bending Dia. Ø900mm |
Square Tube | Max. section 70x4mm, Min. Bending Dia. Ø1000mm |
Rolling Speed: 5 m/min
Shaft Diameter: 125 mm
Motor Power: 7.5 Kw
Net weight: 5000 kg
Overall Size: 2060×1190×1300 mm
Standard Accessory: 1 set of general purpose rolls for Angle, flat and Rectangular tubes.
