Specifications
Steel sheet hydraulic punching machine*High Speed Operation
*Robust Compact Design
*High Quality
Steel sheet hydraulic punching machine This machine used for punching all kinds of the whole hole, notch,slot of aluminium window profile,work with single mould
andit is equipped with aluminum profile single mold and combination mold, capable of complete punch machining of all kinds of bores and slots of sliding window or casement window. The equilibrium of that machine is good, and the accuracy is high. It is easy to change the combination mold. It is the ideal equipment for aluminum window profile processing.
The Metform, hydraulic punching machines have been designed by experienced technicians, assisted by powerful equipment and adapted to the ongoing suggestions many users.
FEATURES
* Technically dimensioned bed
* Cylinder with additional guide.
* Strong and accurate shaft system to avoid distortions
* Gradual centring of punch
* Quick punch change
* Safety protection.
* Ample space for mounting special equipment
* Optimum operation speed
* Large number of optional, standard and special accessories to perform a wide range of jobs
* Range of punching machines from 60T to 200 T with punching throats
To cater to the demands of transmission industries, Metform Machinery offer a complete range of hydraulic presses such as notching machines,iron workers,hydraulic press brake and shears punching machines, roll bending machine and many more. Sturdily constructed to perfection, our hydraulic presses can be operated easily and used for a long time. These premium quality hydraulic presses are known in international markets for excellent functioning, time saving and cost efficiency. They are offered by us at industry leading prices.
Company Introduction
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equiment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine, CNC plasma/ laser cutting machine, punch presses, metalworking machines, coil processing machinery, leveling machine, slitting line, cut-to-length lines, rolling mills.
Type |
FM-60D |
FM-90D |
FM-120D |
FM-165D |
FM-200D |
Pressure(ton) |
60 |
90 |
120 |
165 |
200 |
Punching capacity (mm) |
Φ22*20 |
Φ26*22 |
Φ31*27 |
Φ36*32 |
Φ40*35 |
Max diameter*thickness(mm) |
Φ50*9 |
Φ50*12 |
Φ50*17 |
Φ50*23 |
Φ50*28 |
Throat depth(mm) |
400 |
400 |
500 |
500 |
600 |
Ram stroke(mm) |
80 |
80 |
80 |
80 |
80 |
Cycles(20mmstroke) |
28 |
28 |
28 |
27 |
25 |
Power of main motor(kw) |
4 |
5.5 |
7.5 |
11 |
15 |
Dimension(mm) |
1350*730*1770 |
1380*800*1900 |
1720*960*2090 |
1870*1040*230 |
1975*1040*2300 |
Weight(kg) |
1400 |
1600 |
3200 |
4300 |
5200 |

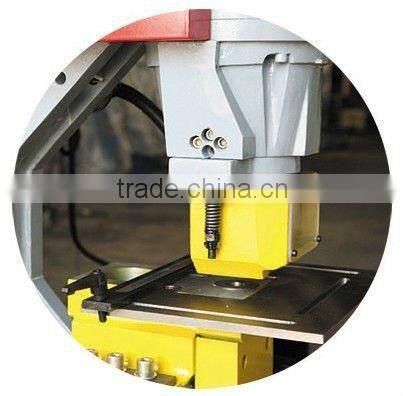

Punching parts
variety molds are available for upper and down molds .
The unique structure can punch large angle steel and channel steel

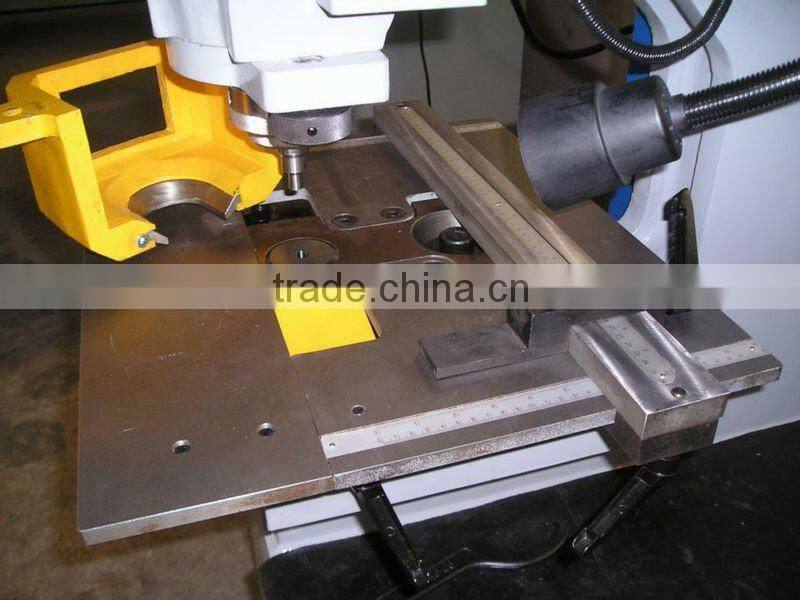

Missing device equipped with a wide range of Windows, rotate the design easy to operate, Two pieces of larger gauge plates as a standard accessory with a ruler. Quick exchange membrane of nut and screw set of easy to change mode.
can be equipped with bending moud(not included in standard)

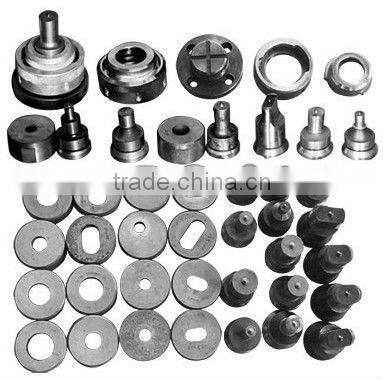

all sorts of molds
with cover
