Specifications
iron pipe punch aluminium sheet metal punching machine*High Speed Operation
*Robust Compact Design
*High Quality

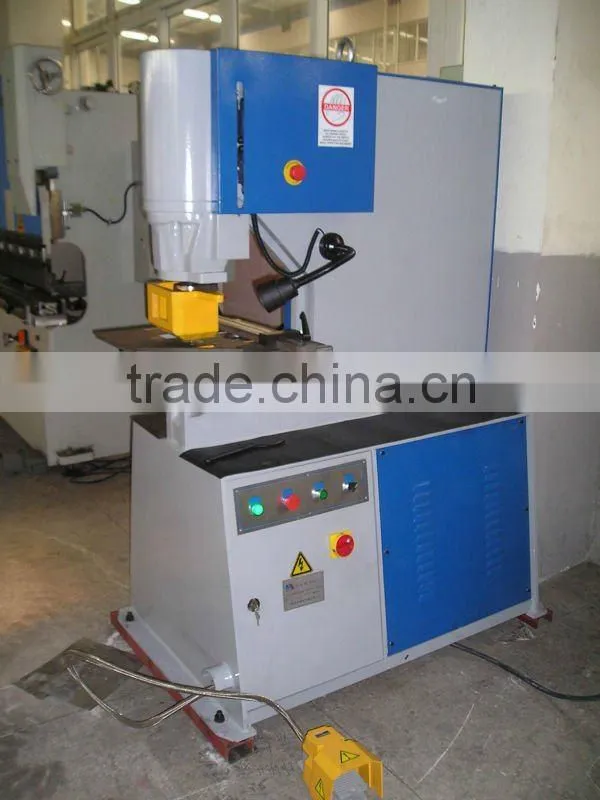

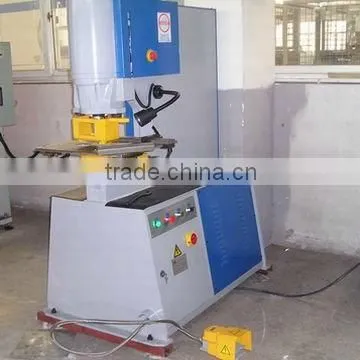

iron pipe punch aluminium sheet metal punching machine
The Metform, hydraulic punching machines have been designed by experienced technicians, assisted by powerful equipment and adapted to the ongoing suggestions many users.
FEATURES
* Technically dimensioned bed
* Cylinder with additional guide.
* Strong and accurate shaft system to avoid distortions
* Gradual centring of punch
* Quick punch change
* Safety protection.
* Ample space for mounting special equipment
* Optimum operation speed
* Large number of optional, standard and special accessories to perform a wide range of jobs
* Range of punching machines from 60T to 200 T with punching throats
To cater to the demands of transmission industries, Metform Machinery offer a complete range of hydraulic presses such as notching machines,iron workers,hydraulic press brake and shears punching machines, roll bending machine and many more. Sturdily constructed to perfection, our hydraulic presses can be operated easily and used for a long time. These premium quality hydraulic presses are known in international markets for excellent functioning, time saving and cost efficiency. They are offered by us at industry leading prices.
Company Introduction
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equiment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine, CNC plasma/ laser cutting machine, punch presses, metalworking machines, coil processing machinery, leveling machine, slitting line, cut-to-length lines, rolling mills.
Type |
FM-60D |
FM-90D |
FM-120D |
FM-165D |
FM-200D |
Pressure(ton) |
60 |
90 |
120 |
165 |
200 |
Punching capacity (mm) |
Φ22*20 |
Φ26*22 |
Φ31*27 |
Φ36*32 |
Φ40*35 |
Max diameter*thickness(mm) |
Φ50*9 |
Φ50*12 |
Φ50*17 |
Φ50*23 |
Φ50*28 |
Throat depth(mm) |
400 |
400 |
500 |
500 |
600 |
Ram stroke(mm) |
80 |
80 |
80 |
80 |
80 |
Cycles(20mmstroke) |
28 |
28 |
28 |
27 |
25 |
Power of main motor(kw) |
4 |
5.5 |
7.5 |
11 |
15 |
Dimension(mm) |
1350*730*1770 |
1380*800*1900 |
1720*960*2090 |
1870*1040*230 |
1975*1040*2300 |
Weight(kg) |
1400 |
1600 |
3200 |
4300 |
5200 |
