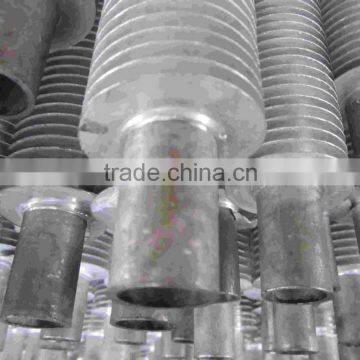

Waste heat recovery heat exchanger with carbon steel fin tube
This kind of heat transfer equipment are to recovers heat from waste heat source, such as waste water and waste gas in the factory. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
Type: compact heat exchanger
Heat transfer source: waste gas, waste water
Pressure-bearing: high
Heat transfer Function: medium level
Material feature:carbon steel tube with carbon steel fin by high frequency welding, outer frame spray painted.
Array: staggered arrangement
Fin Shape:
Performance Parameter
Model |
Air Flow(m3/h) |
Windward Tubes |
Effective Height (mm) |
Heat Exchange Area |
Header Tube Diameter |
Total Heat Load (kw) |
L×W×H |
||
Steam |
Conduction Oil |
Hot Water |
|||||||
YCCC-14×6×0.5 |
5000 |
14 |
575 |
47 |
φ57×3.5 |
156 |
104 |
69 |
900×600×679 |
YCCC-15×6×0.8 |
8000 |
15 |
823 |
72 |
φ76×4 |
249 |
166 |
111 |
1000×600×923 |
YCCC-17×6×0.9 |
10000 |
17 |
926 |
92 |
φ76×4 |
312 |
208 |
138 |
1100×600×1026 |
YCCC-20×6×1.1 |
15000 |
20 |
1157 |
135 |
φ89×4.5 |
467 |
312 |
208 |
1300×600×1257 |
YCCC-22×6×1.2 |
18000 |
22 |
1282 |
164 |
φ89×4.5 |
561 |
374 |
249 |
1400×600×1382 |
YCCC-24×6×1.3 |
20000 |
24 |
1323 |
185 |
φ89×4.5 |
623 |
415 |
277 |
1500×600×1423 |
YCCC-27×6×1.4 |
25000 |
27 |
1447 |
227 |
φ114×6 |
779 |
519 |
346 |
1700×600×1547 |
YCCC-29×6×1.5 |
28000 |
29 |
1525 |
257 |
φ114×6 |
872 |
582 |
388 |
1800×600×1625 |
YCCC-29×6×1.6 |
30000 |
29 |
1634 |
276 |
φ114×6 |
935 |
623 |
415 |
1800×600×1734 |
Waste heat recovery heat exchanger with carbon steel fin tube is mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
