Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger

Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger thumbnail-1
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger thumbnail-2
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger thumbnail-3
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger thumbnail-4
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger photo-1
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger photo-2
Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger photo-3

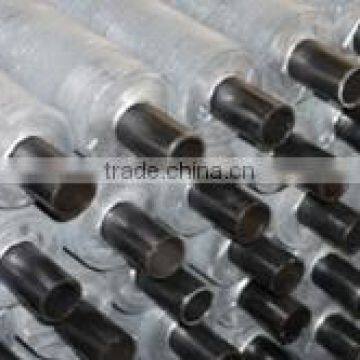

Carbon Steel Tube With Extruded Aluminum Fin Heat Exchanger photo-4
US$ 200 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number YCCL
Structure Tube Heat Exchanger
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided

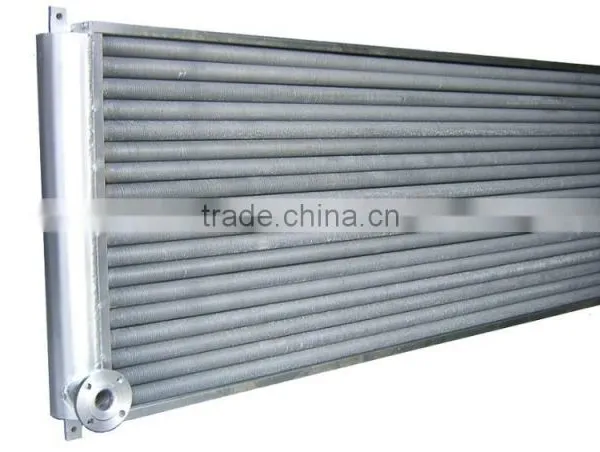

Carbon steel tube with extruded aluminum fin heat exchanger



Heat transfer equipment are to recovers heat from waste heat source, such as waste water and waste gas in the factory. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.

Product Description

Type: compact heat exchanger

Heat transfer source: waste gas, waste water

Pressure-bearing: high

Heat transfer function: medium level

Material feature: carbon steel tube with extruded aluminum fin, outer frame spray painted.

Array: staggered arrangement

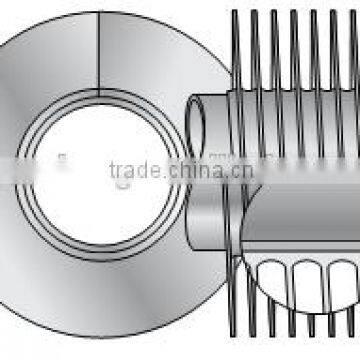

Fin shape

carbon steel tube with extruded aluminum fin heat exchanger



carbon steel tube with extruded aluminum fin heat exchanger



Performance Parameter



Model

Air Flow(m3/h)

Windward

Tubes

EFCTV.

Height(mm)

HX.

Area
(m2)

Header Tube

Diameter
(mm)

Heat Load(kw)

L×W×H
(mm)

Steam

CNDT. Oil

  Hot

Water

YCCL-14×6×0.5

5000

14

575

47

φ57×3.5

156

104

69

900×600×679

YCCL-15×6×0.8

8000

15

823

72

φ76×4

249

166

111

1000×600×923

YCCL-17×6×0.9

10000

17

926

92

φ76×4

312

208

138

1100×600×1026

YCCL-20×6×1.1

15000

20

1157

135

φ89×4.5

467

312

208

1300×600×1257

YCCL-22×6×1.2

18000

22

1282

164

φ89×4.5

561

374

249

1400×600×1382

YCCL-24×6×1.3

20000

24

1323

185

φ89×4.5

623

415

277

1500×600×1423

YCCL-27×6×1.4

25000

27

1447

227

φ114×6

779

519

346

1700×600×1547

YCCL-29×6×1.5

28000

29

1525

257

φ114×6

872

582

388

1800×600×1625

YCCL-29×6×1.6

30000

29

1634

276

φ114×6

935

623

415

1800×600×1734

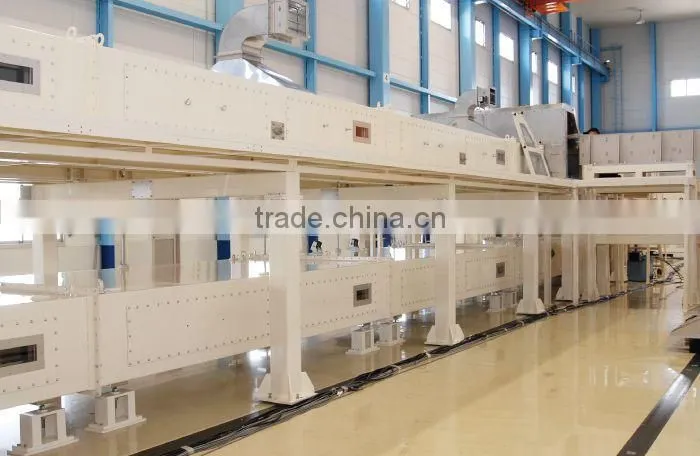

Application Field

 Applied in Pharmacy, Chemical. Electronic Industies etc.



 carbon steel tube with extruded aluminum fin heat exchanger



ISO Certificate

 carbon steel tube with extruded aluminum fin heat exchanger
