Copper Tube With Extruded Copper Fin Waste Heat Exchanger

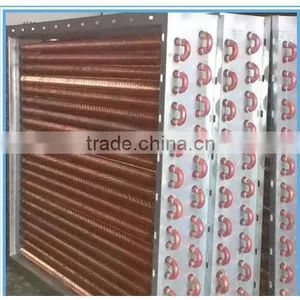

Copper Tube With Extruded Copper Fin Waste Heat Exchanger thumbnail-1
Copper Tube With Extruded Copper Fin Waste Heat Exchanger thumbnail-2
Copper Tube With Extruded Copper Fin Waste Heat Exchanger thumbnail-3
Copper Tube With Extruded Copper Fin Waste Heat Exchanger thumbnail-4
Copper Tube With Extruded Copper Fin Waste Heat Exchanger photo-1
Copper Tube With Extruded Copper Fin Waste Heat Exchanger photo-2
Copper Tube With Extruded Copper Fin Waste Heat Exchanger photo-3
Copper Tube With Extruded Copper Fin Waste Heat Exchanger photo-4
US$ 600 - 3,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number YCTT
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided

Copper tube with extruded copper fin waste heat exchanger



This kind of heat transfer equipment are to recovers heat from waste heat source, such as waste water and waste gas in the factory. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.



Product Description

Type: Compact Heat Exchanger

Heat transfer source: waste gas, waste water

Pressure-bearing: low

Heat transfer Function: high

Material feature: copper tube with extruded copper fin, outer frame spray painted.

Array: staggered arrangement

Tube:

Copper tube with extruded copper fin waste heat exchanger



Fin Shape:

Copper tube with extruded copper fin waste heat exchanger



Copper tube with extruded copper fin waste heat exchanger



Performance Parameter



Model

Air Flow(m3/h)

Windward

Tubes

Effective

Height
(mm)

Heat Exchange

Area
(m2)

Header Tube Diameter
(mm)

Total

Heat

Load(kw)

L×W×H
(mm)

YCTT-14×6×0.5

5000

14

575

47

φ57×3.5

95

900×600×679

YCTT-15×6×0.8

8000

15

823

72

φ76×4

152

1000×600×923

YCTT-17×6×0.9

10000

17

926

92

φ76×4

190

1100×600×1026

YCTT-20×6×1.1

15000

20

1157

135

φ89×4.5

286

1300×600×1257

YCTT-22×6×1.2

18000

22

1282

164

φ89×4.5

343

1400×600×1382

YCTT-24×6×1.3

20000

24

1323

185

φ89×4.5

381

1500×600×1423

YCTT-27×6×1.4

25000

27

1447

227

φ114×6

476

1700×600×1547

YCTT-29×6×1.5

28000

29

1525

257

φ114×6

533

1800×600×1625

YCTT-29×6×1.6

30000

29

1634

276

φ114×6

571

1800×600×1734

Application Field

Copper tube with extruded aluminum fins heat exchanger mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.





ISO Certificate



Copper tube with extruded copper fin waste heat exchanger
