Specifications
1) Build-in WLAN drivers - easy to integrate2) Rich command set to control device
3) External antenna

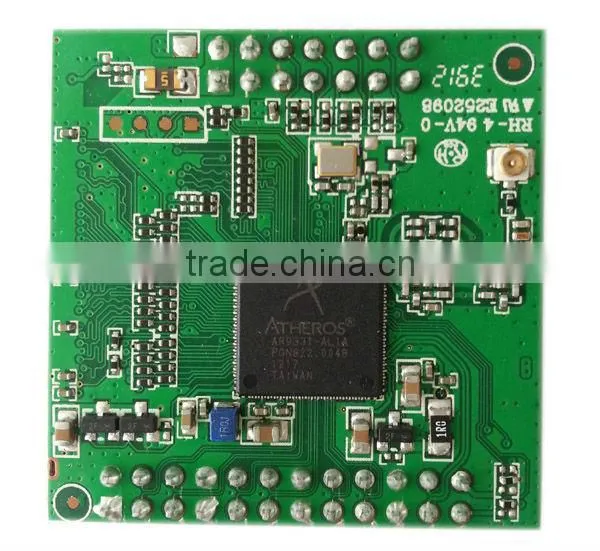

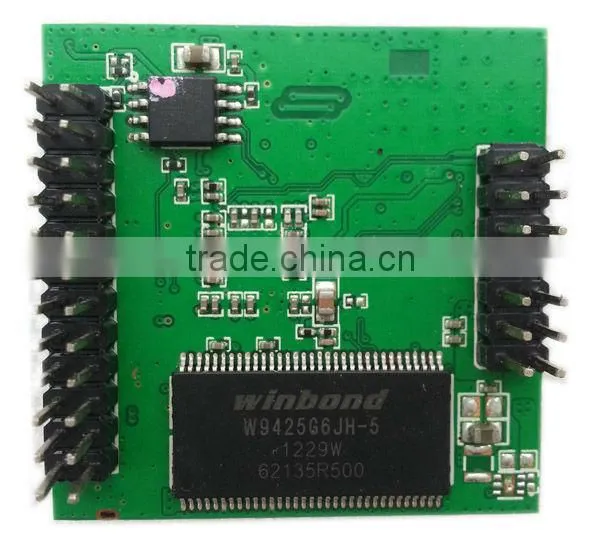

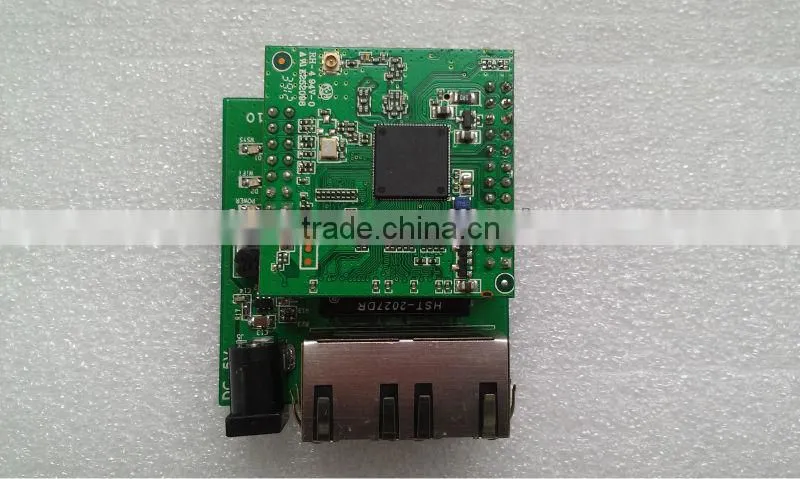

AR9331 WIFI MODULE WLM113H
Introduction
WLAN module WLM113H is developed by V-SOLUTION. This module can be easily integrated in any telecommunication products which need WiFi feature. It will help you to add WiFi function quickly and shorten the time to market.
Technical parameters
Chipset |
ATHEROS |
Connector |
38 male pins, used for connecting with customer’s PCB, including power signal, Ethernet signal, indicator signal, etc. |
Embedded OS |
Linux V2.6.31 |
LAN |
2*10/100M auto-adaptive, AUTO MDIX, full/half duplex, IEEE802.3x, according to IEEE802.3, 802.3u, 802.3x |
WAN |
10/100M auto-adaptive, AUTO MDIX, full/half duplex, IEEE802.3x, according to IEEE802.3, 802.3u, 802.3x |
Console |
1, RS-232, used for CLI and telnet management |
Indicator |
Using LEDs to show status of Power, Ethernet, and WiFi |
Button |
2, reset/default configuration, WPS |
Operating condition |
operating temperature: -5 - +55°C operating humidity: 10 - 90%(non-condensed) |
Storing condition |
storing temperature: -30 - +60°C storing humidity: 10 - 90%(non-condensed) |
Power |
+3.3V DC, 2A, external AC-DC adaptor |
Power consumption |
<5W |
Dimension |
40mm*40mm (length*width) |
PCB thickness |
1.6mm |
Net weight |
0.01Kg |
Features
1) Build-in WLAN drivers - easy to integrate
2) Rich command set to control device
3) Automatic mode to create wireless cable replacement
4) External antenna
Main Function
1) Support for UART data serial, four baud rate options: 19200 / 38400 / 57600 / 115200bps.
2) Wireless data rates support the 802.11b/g/n Standard, the maximum rate is 150Mbps.
3) Integrate the functions of 802.11 MAC protocol Software.
4) Support for the STA appliances in the Infrastructure Network.
5) Support for the OPEN/WEP/WPA/WPA2 mode authentication.
6) Support for the wep64/wep128/ccmp/tkip data encryption transmission in the shared key mode
7) Support for the automatic networking mode and manual networking mode.
8) In the automatic networking mode. The module can automatically scan the target network, and automatically connect when disconnection.
9) In the manual networking mode, operation of connect and disconnect is touched off by order, this supports a flexible control space.
10) Support the network data transmission in RAW/UDP/TCP format.
11) Support seven groups of the basic parameters set, and can connect to seven target networks the most.
12) Support to configure the parameters through user serial.
13) Support to upgrade the firmware on line by the internet.
Need more informations and get best price, Please free to contact with me!
SKYPE: mickeycc3
*******************************************************************************************************************************************

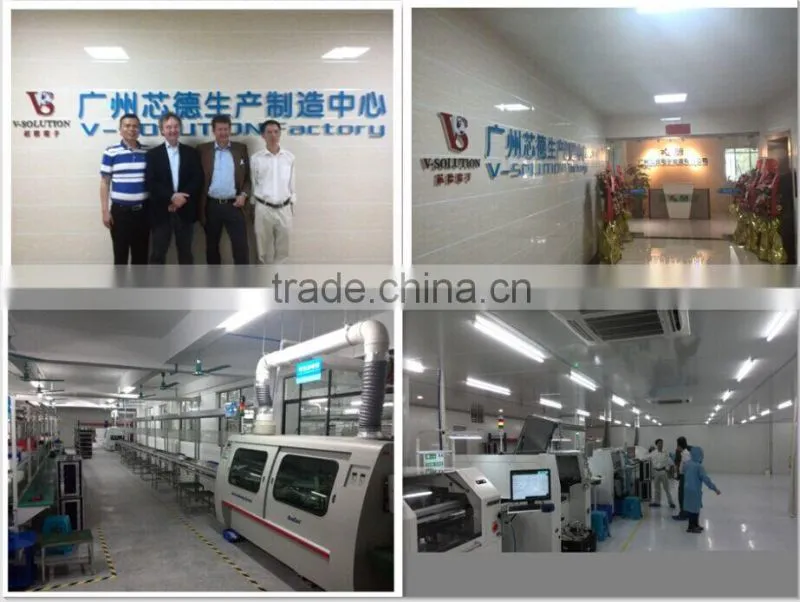

Why you choose V-Solution?
V-SOLUTION currently employs 35-40 R&D engineers. Our engineers have a good knowledge of communication network protocols and have rich experiences in developing products. We can provide the strong support for you. And We are a OEM/ODM manufacturer which located in GuangZhou,China. Welcome to visit our factory!
V-Solution, your best business partner!
