Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > IGBT INVERTER SUBMERGED-ARC WELDER

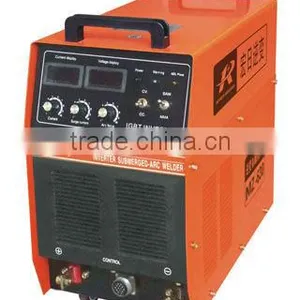

IGBT INVERTER SUBMERGED-ARC WELDER
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
hongri
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
hongri
Model Number
MZ-630
Motor Type
AC Motor
Dimensions
630*310*500mm
Voltage
3*380V
Power(W)
35.8KVA
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
smallest welding machinehas two kinds of welding modes
a high level of automation
can load 10L flux
|
MZ-630 IGBT inverter submerged arc welder is the smallest welding machine manufactured by our company according to automatic submerged arc process.
This machine has two kinds of welding modes, manual welding and submerged arc welding and each mode has different range of current, 40 to 620A for manual welding and 60-630A for submerged arc welding.
Instead of a handle, there are two rings on the top of the safety box, facilitating the upgrading of the mechanical lift.
At the same time, this product has a high level of automation. To be more specific, the external barrel of MZ-630 IGBT inverter submerged arc welder can load 10L flux, wire reel can take 20 kg of wire and the entire welding speed can reach 20-150cm/min.
|
| Input power | 3×380V 50/60HZ |
| Rated Input Power | 35.8KVA |
| Rated Input Current | 49A |
| Duty Cycle | 100% |
| No-load voltage | 70-90V |
| Adjustment range of current(MMA) | 40-630A |
| Adjustment range of current(SAW&CC) | 60-630A |
| Adjustment range of current(SAW&CV) | 17V-50V |
| Diameter of wire | 2-4mm |
| Weight of welder | 58KG |
| Dimension(L×W×H) | 630×310×500mm |
| Wire feeding speed | 30-360cm/min |
| Welding speed | 20-150cm/min |
| Capacity of flux container | 10L |
| Capacity of wire container | 20KG |
| Weight of tractor | 45KG |
| Air Switch | 63A |
| Insulation class | F |
| Raising means | LIFT |
| Protection grade | IP21S |
