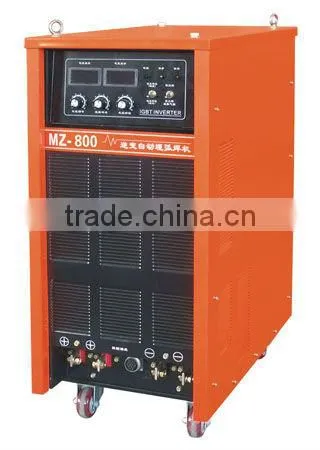

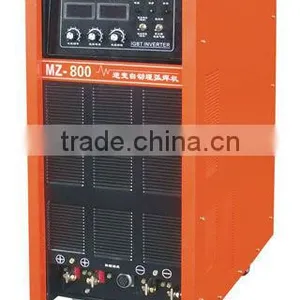

IGBT INVERTER SUBMERGED-ARC WELDER
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
hongri
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
hongri
Model Number
MZ-800
Motor Type
AC Motor
Dimensions
720*420*1000mm
Voltage
3*380V
Power(W)
47KVA
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
perfect automatic protectionsuitable for 24 hour operation
designed with imported high-power
high-power output
|
MZ-800 IGBT inverter submerged arc welder has a perfect automatic protection so the service life is extended and with duty cycle of 100% which means that it is suitable for 24 hour operation under full load.
With all these features, it is the ideal welding machine for industrial applications. The input power for this machine is three-phase 380V and the range of submerged arc welding voltage is from 17 to 50V. Designed with imported high-power double-barreled IGBT inverter technology, this product has high-power output, anti-interference performance and stable arc.
Besides that, the diameter of wire used is 2-5mm depending on the welding steel. The flux used in MZ-800 IGBT inverter submerged arc welder has an excellent quality so metal mechanical properties of weld can be enhanced and the incidence of welding defects can be reduced.
|
| Input power | 3×380V 50/60HZ |
| Rated Input Power | 47KVA |
| Rated Input Current | 65A |
| Duty Cycle | 100% |
| No-load voltage | 70-90V |
| Adjustment range of current(MMA) | 40-800A |
| Adjustment range of current(SAW&CC) | 80-800A |
| Adjustment range of current(SAW&CV) | 17V-50V |
| Diameter of wire | 2-5mm |
| Weight of welder | 100KG |
| Dimension(L×W×H) | 720×420×1000mm |
| Wire feeding speed | 30-360cm/min |
| Welding speed | 20-150cm/min |
| Capacity of flux container | 10L |
| Capacity of wire container | 20KG |
| Weight of tractor | 45KG |
| Air Switch | 100A |
| Insulation class | F |
| Raising means | LIFT |
| Protection grade | IP21S |
