Prestressing Round Working Anchorage for Bridge
US$ 12 - 23.5
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
HM
Model Number:
Round anchorage
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Shenzhen; Guangzhou; Pingxiang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MBV80 Electric Prestressing Vacuum PumpUS$ 1,200 - 1,500MOQ: 1 Set -
YDC1500-200 Lightweight Hydraulic Core-through Tensioning(stretching) JackUS$ 600 - 1,000MOQ: 2 Sets
-
2YBZ2-80 High-Pressure Electric Oil PumpUS$ 1,500 - 2,000MOQ: 1 Set
-
DY255-22 Type Prestressed Top-pressure Pusher Hydraulic Special for Tensioning JackUS$ 100 - 200MOQ: 2 Sets
-
High-Pressure Oil PumpUS$ 1,500 - 2,000MOQ: 1 Set
Place of Origin
Guangxi, China
Brand Name
HM
Model Number
Round anchorage
Material
Steel
Prestressing round working anchorage
Product Description
Specifications and models meaning:
HM13-10 anchorage:
HM --- brand
13 --- 12.7mm steel pc strand
10 --- anchorage holes
Product composition:
Each set anchorage consist of 4 parts:

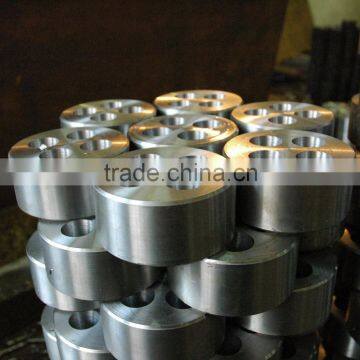

1. Working anchorage plate

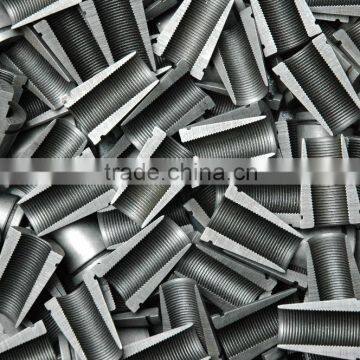

2. Working wedge
3.Bearing plate
4.Spiral reinforcement
Technology parameter of HM15 anchorage Unit:mm
| Model | Anchorage plate | Bearing plate | Spiral tendon | Mateching equipment | |||||||
| φA*B | Round | Flat | Installation hole φC
|
φF | φG | H | Turns | ||||
| φC'*D | E | C*D | E | ||||||||
| HM15-1 | 50*48 | - | - | 80 | 6.5 | 30 | 4 | YDQ260 | |||
| HM15-2 | 83*46 | 125*80 | 90 | 125*65 | 44 | 105 | 130 | 8 | 40 | 4 | YDC1000 |
HM15-3 |
85*46 |
135*97 | 90 | 130*65 | 46 | 110 | 130 | 8 | 40 | 4 | YDC1000 |
| HM15-4 | 95*46 | 145*105 | 98 | 140*90 | 50 | 120 | 140 | 10 | 50 | 4 | YDC1000 |
| HM15-5 | 105*48 | 150*120 | 96 | 155*155 | 55 | 135 | 150 | 10 | 50 | 4 | YDC1000 |
| HM15-6 | 125*48 | 165*130 | 110 | 170*120 | 60 | 145 | 170 | 10 | 50 | 4 | YDC1500 |
| HM15-7 | 125*50 | 165*130 | 110 | 180*120 | 66 | 145 | 170 | 10 | 50 | 4 | YDC1500 |
| HM15-8 | 135*52 | 185*478 | 126 | 195*130 | 72 | 162 | 210 | 10 | 60 | 4 | YDC2000 |
| HM15-9 | 145*52 | 200*155 | 122 | 201*195 | 75 | 175 | 210 | 10 | 60 | 4 | YDC2000 |
| HM15-10 | 155*55 | 210*185 | 132 | 214*265 | 73 | 190 | 210 | 10 | 60 | 4 | YDC2500 |
| HM15-11 | 155*57 | 210*185 | 132 | 223*210 | 76 | 190 | 210 | 10 | 60 | 4 | YDC2500 |
| HM15-12 | 165*60 | 218*195 | 136 | 231*225 | 87 | 190 | 220 | 12 | 60 | 4 | YDC2500 |
| HM15-13 | 165*63 | 218*195 | 136 | 240*265 | 80 | 190 | 220 | 12 | 60 | 4 | YDC3000 |
| HM15-14 | 175*65 | 235*215 | 148 | 248*310 | 85 | 200 | 240 | 12 | 60 | 5 | YDC3000 |
| HM15-15 | 175*65 | 235*215 | 148 | 258*340 | 100 | 220 | 240 | 12 | 60 | 5 | YDC3000 |
| HM15-16 | 185*70 | 245*230 | 148 | 266*380 | 105 | 220 | 250 | 14 | 70 | 5.5 | YDC4000 |
| HM15-17 | 185*70 | 245*230 | 148 | 273*445 | 105 | 220 | 250 | 14 | 70 | 5.5 | YDC4000 |
| HM15-18~19 | 195*75 | 265*245 | 148 | 287*375 | 112 | 230 | 270 | 14 | 70 | 5.5 | YDC4000 |
| HM15-20~22 | 226*80 | 300*325 | 150 | 312*375 | 110 | 250 | 300 | 16 | 70 | 6 | YDC6500 |
| HM15-23~24 | 244*82 | 330*430 | 150 | 342*475 | 120 | 280 | 330 | 16 | 60 | 6 | YDC6500 |
| HM15-25~27 | 244*85 | 330*430 | 155 | 342*475 | 120 | 280 | 330 | 16 | 60 | 6 | YDC6500 |
| HM15-28~29 | 260*88 | 352*415 | 155 | 367*465 | 130 | 290 | 352 | 16 | 60 | 7 | YDC6500 |
| HM15-30~31 | 260*90 | 352*415 | 175 | 367*465 | 130 | 290 | 352 | 18 | 60 | 7 | YDC6500 |
| HM15-32~34 | 296*95 | 386*510 | 175 | 401*560 | 140 | 330 | 386 | 18 | 60 | 8 | YDC6500 |
| HM15-35~37 | 296*100 | 394*510 | 190 | 394*510 | 140 | 330 | 394 | 18 | 60 | 8 | YDC6500 |
| HM15-38~39 | 324*105 | 438*585 | 190 | - | - | 360 | 438 | 20 | 60 | 8 | YDC9000 |
| HM15-40~42 | 324*112 | 438*585 | 190 | - | - | 360 | 438 | 22 | 60 | 8 | YDC9000 |
| HM15-43~45 | 324*112 | 438*585 | 205 | - | - | 360 | 438 | 22 | 60 | 8 | YDC9000 |
| HM15-46~47 | 244*115 | 470*655 | 205 | - | - | 400 | 470 | 22 | 60 | 8 | YDC12000 |
| HM15-48~49 | 344*116 | 470*655 | 205 | - | - | 400 | 470 | 22 | 60 | 8 | YDC12000 |
| HM15-50~52 | 344*120 | 470*655 | 205 | - | - | 400 | 470 | 22 | 60 | 8 | YDC12000 |
| HM15-53 | 344*130 | 470*655 | 205 | - | - | 400 | 470 | 22 | 60 | 8 | YDC12000 |
| HM15-54~55 | 344*130 | 470*655 | 205 | - | - | 400 | 470 | 22 | 60 | 8 | YDC12000 |
Advantages:
1.GB/T 14370-2015 Standard
2.Type:round anchorage
3.Stable,reliable anchorage performance
4.Providing after-sale service
5.Resistant to rust
Application:
1.be often used in bridge construction
2.be used in pre - installed location, dock
3.be used in carbon fiber reinforcement
4.be used in bridge and building reinforcement
5.prestressed engineering,cable,subway
6.be used in kinds of warehouse building, tower building, weight lifting
7.permanent anchor device are usually used on the concrete
8.smooth steel-strand anchorage(HM15) (applicable for 12.7, 15.27, 17.8, 21.8 and 28.6 steel strands) working with 2YBZ4-630 type electric pump and YDQ series jack fixed tension.
Company Information
Certifications
Our Services
Why choose us?
1.Our company established 2007 and join Alibaba for 3 years, and we are the Alibaba gold supplier.
2.We have own factory and production flow, and professional prestressed products.
3.Through our research and development, we have 21 independent patents.
4.Supplier ability: 30,000 sets anchorage per month.
5.Free anchorage sample(1-2 pieces) provide to you for international express, but the bill at your cost.
