Preduct Detail:
Specification and model meanings:
2YBZ2-80
2——Double Oil Ways
YBZ——Hydraulic Axial Plunger Pump
2——Nominal Flow of 2L/min for Single Oil Way
80——Nominal Pressure of 80MPa
Structure:
1.a motor 2.a pump body 3.control valves 4.pipelines 5. electric switches

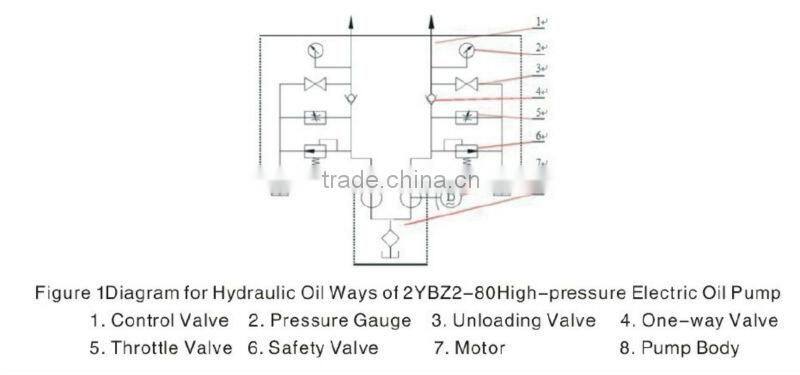

The oil ways of the hydraulic control valve:
pump body:
control valves
Working Principle:
It adopts the structural form of swashplate axial plunger,and belongs to an oil pump with small flow and high pressure and service performance.By the methods of pre-tensioning and post-tensioning.It is widely applied to the construction of prestressed concrete structure,bridge,power stations,highways,high-rise building,ground anchorage,etc. matching with various prestressing jacks with the rated pressure of 80MPa and below,hydraulic wire button head machines,hydraulic bend cutters and various stretchers,and it is the main operating and power part of prestressing hydraulic equipment.
Advantages:
1.more compacter structure
2.good sealing performance
3.lightweight
4.small volume
5.convenient installation and dismantlement
6. 2YBZ2-80 high pressure electric oil pump is our product through self-researched and self-developed in many years of production practice .
Detailed Parameters:
Our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building,etc.
