Help CenterMBV80 Electric Prestressing Vacuum Pump
Related Products
-
YDC1500-200 Lightweight Hydraulic Core-through Tensioning(stretching) JackUS$ 600 - 1,000MOQ: 2 Sets -
2YBZ2-80 High-Pressure Electric Oil PumpUS$ 1,500 - 2,000MOQ: 1 Set
-
DY255-22 Type Prestressed Top-pressure Pusher Hydraulic Special for Tensioning JackUS$ 100 - 200MOQ: 2 Sets
-
High-Pressure Oil PumpUS$ 1,500 - 2,000MOQ: 1 Set
-
The Filled Epoxy Coating Steel StrandUS$ 600 - 800MOQ: 5 Metric Tons
Structure:
1.a pump body
2.a vacuum pumping pipe
3.water circulation system
4.negative pressure container
5.a flushing pipeline
6.a frame part

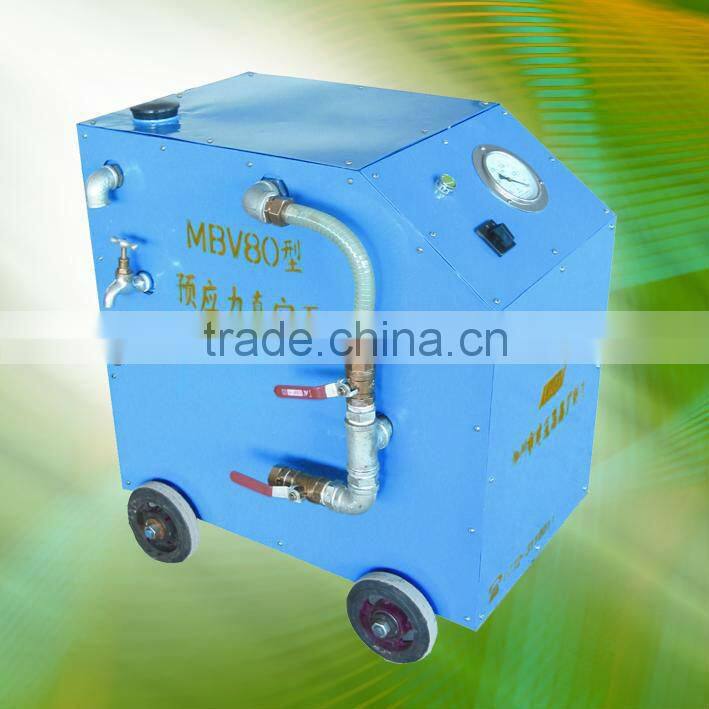

As the power source, the liquid ring vacuum pump and a vacuum pressure gauge, an integrated power switch and a power indicating lamp all assembly in a compact box body.
Working principal:
MBV80 Type vacuum pump is a forming equipment through pressure of post-tensioned prestressed duct vacuum grouting.
Step1:Connecti the vacuum pump and one end of good-sealing prestressed duct before grouting to post-tensioned prestressed duct
Step2:Starting,making the inner of duct reaching -0.06~-0.1 MPa negative pressure and holding.
Step3:Grouting from another end of prestressed duct until the entire channel filled with cement slurr.
Specifications and models meaning:
MBV80
M means used for prestressing
B means pump
V means vacuum
80 means pumping 80 cubic meters per hour.
Advantages:
Through the function of vacuum negative pressure
1.It can reduce water and cement ratio of the cement slurry for perfusion
2.eliminate pore and mixed in cement slurry bubble
3.reduce porosity and bleeding phenomenon
4.guarantee the grouting fullness,compactness and strength
5.This type of vacuum pump with HDPE plastic corrugated pipe and a screw type filling machine can achieve very good grouting effect
6.can work with ordinary metal bellows formation pore and good performance of the piston mortar pump .
Detailed parameter
MBV80 vacuum pump performance parameter as follows:
|
Type
|
Maximum volume m3 /h
|
Ultimate vacuum -MPa
|
Motor power kw
|
Pump speed r.p.m
|
Working fluid flow rate L/min
|
Noise dB(A)
|
Weight kg
|
MBV80 |
80 |
0.097 |
2.35 |
2850 |
2.5 |
66 |
98 |
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
