YDQ Series Lightweight Hydraulic Pipe Jacking Machine

Working Principle:

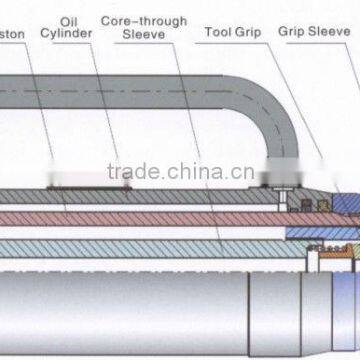

 Under the function of oil presurre,the moving part moves relative to the fixed part to realize tensioning the jack.The design tensioning force can be obtained by controlling the area of the tensioning cavity and the oil pressure.In order to reduce the weight of the jack,the stroke of the jack is designed as 120mm,160mm and 200mm.the front-jaming jack has the performance of  continuously progressive repeated tensioning,and it can realize the tensioning of prestressing tendons of different lengths.The structure diagram of the YDQ front-jaming jack is shown in the figure below:

Specifications and models meanings:

YDQXXX-XXX

YDQ——Hydraulic Front-jamming Jack

XXX——Nominal Tensioning Force(kN)

XXX——Hydraulic Front-jamming Jack

Advantages:

1.light weight

2.small volume

3.convenient use

4.used for steel strand

5.portable

Technical Performance Parameters:

YDQ front-jaming jacks have multiple specification,including 100kN,260kN,500kN,750kN etc.,the standard strokes of tensioning are 160mm and 200mm.it can also be customized according to the customer demand. Technical Performance Parameters are shown in Table 1:

Our Services:

We provide after-sale service, technical support, personalization and processing, production on-demand  and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for  bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
