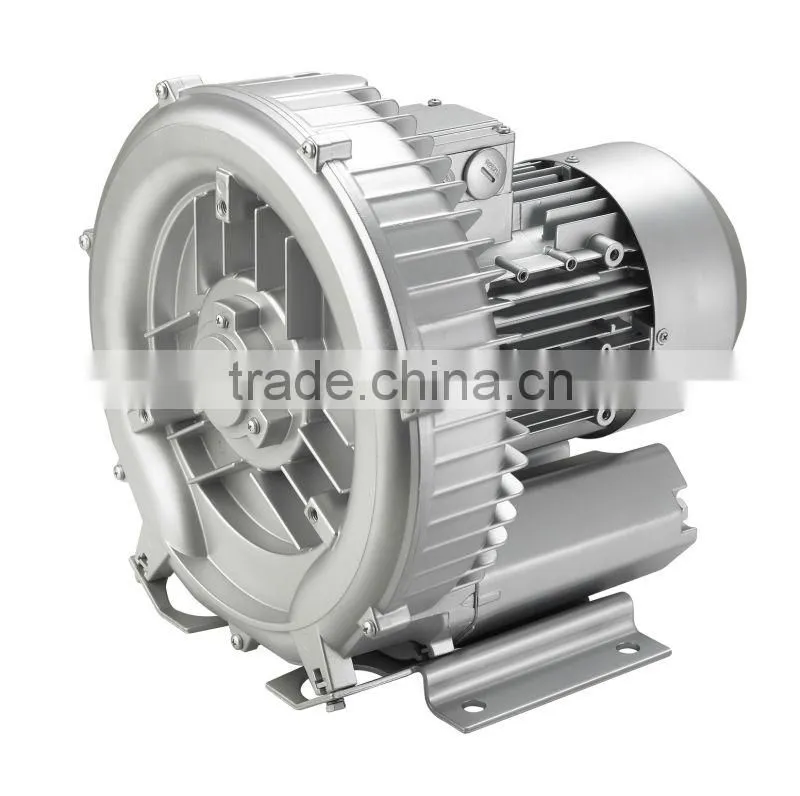

Help CenterRing Blower 2RB 5 Series
US$ 80 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
zhangoco
Model Number:
2RB
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
zhangoco
Model Number
2RB
Type
Pump
Specifications
1. CE aprroved2. High Pressure and vacuum
3. IP 54
4. Die cast Aluminium
5. Oil free ring blower
Air pumps/ Air Blower/Side Channel blower / Ring Blower/ Regenerative Blower
Advantage:
- Oil Free
- Compact light weight design
- Maintenance free
- Handles vacuum or pressure applications
- Operate quietly
- Cooler running outboard bearing
- Increase service life
- Ideal alternative to standard rotary
- CE approved, IP55, insulation class F
- Easy to install
Certification
CE
Detailed specifiation:
| 24 | 2RB 590 H26 | Single | 50 | 1.1 | 200-240Δ 345-415Y | 5.7Δ/3.3 | 210 | -130 | 150 | 64 | 23 |
| 60 | 1.7 | 220-275Δ 380-480Y | 6.0Δ/3.5Y | 255 | -180 | 210 | 70 | ||||
| 25 | ·2RB 510 H06 | Single | 50 | 0.85 | 200-240Δ 345-415Y | 4.2Δ/2.4Y | 210 | -110 | 100 | 64 | 18 |
| 60 | 0.95 | 220-275Δ 380-480Y | 4.0Δ/2.3Y | 255 | -80 | 70 | 70 | ||||
| 26 | ·2RB 510 H16 | Single | 50 | 1.3 | 200-240Δ 345-415Y | 6.6Δ/3.8Y | 210 | -170 | 170 | 64 | 20 |
| 60 | 1.5 | 220-275Δ 380-480Y | 6.9Δ/4.0Y | 255 | -150 | 140 | 70 | ||||
| 27 | ·2RB 510 H26 | Single | 50 | 1.6 | 200-240Δ 345-415Y | 7.5Δ/4.3Y | 210 | -200 | 190 | 64 | 21 |
| 60 | 2.1 | 220-275Δ 380-480Y | 7.6Δ/4.4Y | 255 | -220 | 210 | 70 | ||||
| 28 | ·2RB 510 H36 | Single | 50 | 2.2 | 200-240Δ 345-415Y | 9.7Δ/5.6Y | 210 | -220 | 270 | 64 | 25 |
| 60 | 2.55 | 220-275Δ 380-480Y | 10.3Δ/6.0Y | 255 | -260 | 290 | 70 | ||||
| 29 | 2RB 530 H06 | Single | 50 | 0.85 | 200-240Δ 345-415Y | 4.2Δ/2.4Y | 270 | -40 | 40 | 65 | 23 |
| 60 | 0.95 | 220-275Δ 380-480Y | 4.0Δ/2.3Y | 330 | -40 | 40 | 71 | ||||
| 30 | 2RB 530 H16 | Single | 50 | 1.3 | 200-240Δ 345-415Y | 6.6Δ/3.8Y | 270 | -100 | 100 | 65 | 24 |
| 60 | 1.5 | 220-275Δ 380-480Y | 6.9Δ/4.0Y | 330 | -70 | 50 | 71 | ||||
| 31 | 2RB 530 H26 | Single | 50 | 1.6 | 200-240Δ 345-415Y | 7.5Δ/4.3Y | 270 | -100 | 150 | 65 | 24 |
| 60 | 2.05 | 220-275Δ 380-480Y | 7.6Δ/4.4Y | 330 | -70 | 130 | 71 | ||||
| 32 | 2RB 530 H36 | Single | 50 | 2.2 | 200-240Δ 345-415Y | 9.7Δ/5.6Y | 270 | -150 | 230 | 65 | 26 |
| 60 | 2.55 | 220-275Δ 380-480Y | 10.3Δ/6.0Y | 330 | -150 | 210 | 71 | ||||
| No. | Model | Single or double grade | Frequency | Rating | Output voltage | Rating | Max. | Max.Inlet | Max.Outlet | Noise | Weight |
| Power | Current | Air flow | Pressure | Pressure | |||||||
| HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | |||

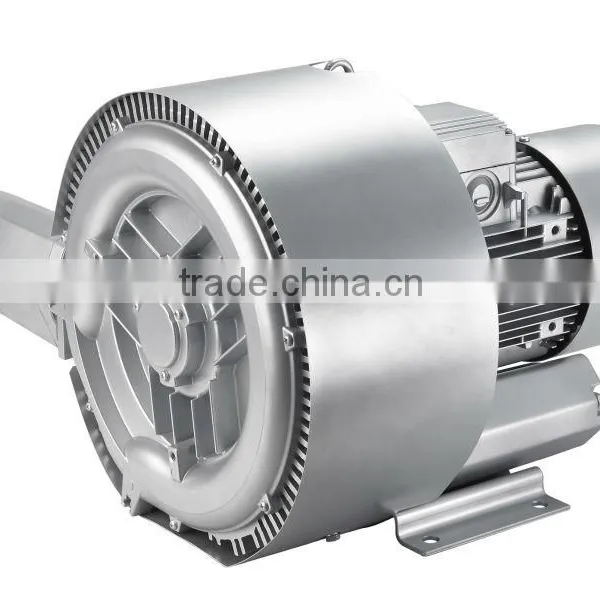

| 33 | ·2RB 520 H46 | Double | 50 | 3 | 200-240Δ 345-415Y | 12.5Δ/7.2Y | 230 | -340 | 410 | 72 | 39 |
| 60 | 3.45 | 220-275Δ 380-480Y | 12.5Δ/7.3Y | 275 | -380 | 360 | 74 |
Application:
PACKING AND STORAGE
Workshop
