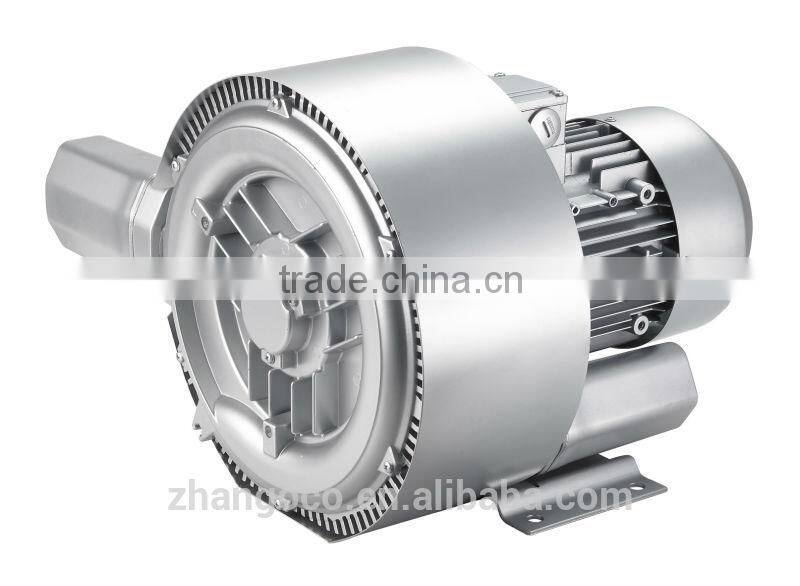

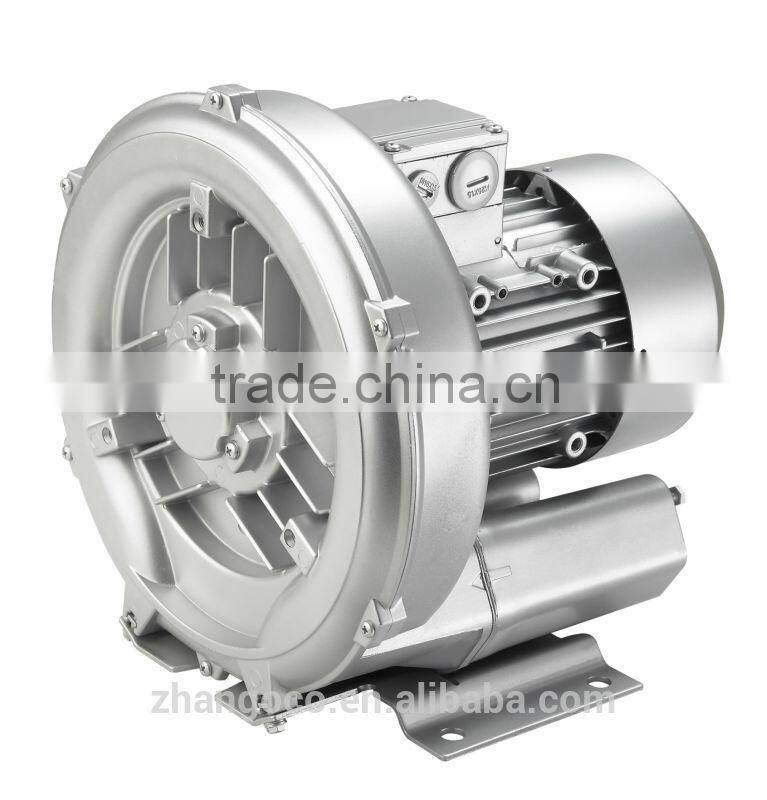

Air Blower of Ring Blower 2RB 3 Series

Air Blower of Ring Blower 2RB 3 Series thumbnail-1
Air Blower of Ring Blower 2RB 3 Series photo-1
US$ 80 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
zhangoco
Model Number:
2RB
Contact Supplier Request Quote Chat Now
Shanghai Zhangao Electric Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name zhangoco
Model Number 2RB
Type Pump

Specifications

1. CE aprroved Ring blower
2. High Pressure and vacuum air blower
3. IP 54
4. High quality Die cast Aluminium

Air Blower/Side Channel blower / Ring Blower/ Regenerative Blower



Advantage:

  1. Oil Free
  2. Compact light weight design
  3. Maintenance free
  4. Handles vacuum or pressure applications
  5. Operate quietly
  6. Cooler running outboard bearing
  7. Increase service life
  8. Ideal alternative to standard rotary
  9. CE approved, IP55, insulation class F
  10. Easy to install

Certification

CE



Detailed specifiation:



2RB 3 Series Three Phase Ring Blower
No. Model Single or double grade Frequency Rating Output voltage Rating Max. Max.Inlet Max.Outlet Noise Weight
Power Current Air flow Pressure Pressure
  HZ KW V A m3/h mbar mbar dB(A) Kg
3 2RB 210 H06 Single 50 0.25 200-240Δ 345-415Y 2.1Δ/1.2Y 80 -100 110 53 8
60 0.29 220-275Δ 380-480Y 2.0Δ/1.15Y 98 -110 110 56
4 ·2RB 210 H16 Single 50 0.4 200-240Δ 345-415Y 2.6Δ/1.5Y 80 -120 130 53 10
60 0.5 220-275Δ 380-480Y 2.6Δ/1.5Y 98 -150 160 56
5 2RB 230 H06 Single 50 0.25 200-240Δ 345-415Y 2.1Δ/1.2Y 105 -70 80 54 10
60 0.29 220-275Δ 380-480Y 1.7Δ/1.0Y 120 -80 80 57
6 2RB 230 H16 Single 50 0.4 200-240Δ 345-415Y 2.6Δ/1.5Y 105 -120 130 54 11
60 0.5 220-275Δ 380-480Y 2.6Δ/1.5Y 120 -150 150 57
7 2RB 230 H26 Single 50 0.7 200-240Δ 345-415Y 3.8Δ/2.2Y 105 -120 130 54 12
60 0.83 220-275Δ 380-480Y 3.75Δ/2.15Y 120 -150 180 57
8 ·2RB 220 H26 Double 50 0.7 200-240Δ 345-415Y 3.8Δ/2.2Y 88 -210 240 55 14
60 0.83 220-275Δ 380-480Y 3.75Δ/2.15Y 103 -250 250 61
9 ·2RB 310 H06 Single 50 0.55 200-240Δ 345-415Y 2.4Δ/1.7Y 95 -120 130 57 12
60 0.62 220-275Δ 380-480Y 2.6Δ/1.5Y 110 -120 130 60
10 2RB 310 H16 Single 50 0.7 200-240Δ 345-415Y 3.8Δ/2.2Y 100 -150 170 57 13
60 0.83 220-275Δ 380-480Y 3.75Δ/2.15Y 120 -160 180 60
11 2RB 330 H06 Single 50 0.55 200-240Δ 345-415Y 2.8Δ/1.6Y 140 -60 60 56 12
60 0.63 220-275Δ 380-480Y 3.0Δ/1.7Y 165 -40 40 58
12 2RB 330 H16 Single 50 0.75 200-240Δ 345-415Y 3.8Δ/2.2Y 140 -100 100 56 13
60 0.83 220-275Δ 380-480Y 3.8Δ/2.2Y 165 -115 100 58
13 2RB 320 H26 Double 50 0.85 200-240Δ 345-415Y 4.2Δ/2.4Y 110 -200 230 58 17
60 0.95 220-275Δ 380-480Y 4.0Δ/2.3Y 130 -240 240 60
14 2RB 320 H36 Double 50 1.3 200-240Δ 345-415Y 5.7Δ/3.3Y 110 -280 290 58 18
60 1.5 220-275Δ 380-480Y 6.0Δ/3.5Y 130 -300 400 60



 Air blower of Ring blower 2RB 3 Series

































Air blower of Ring blower 2RB 3 Series





Application:



Air blower of Ring blower 2RB 3 SeriesAir blower of Ring blower 2RB 3 Series



PACKING AND STORAGE





Air blower of Ring blower 2RB 3 Series

Air blower of Ring blower 2RB 3 Series





Workshop











Air blower of Ring blower 2RB 3 Series



Air blower of Ring blower 2RB 3 Series
