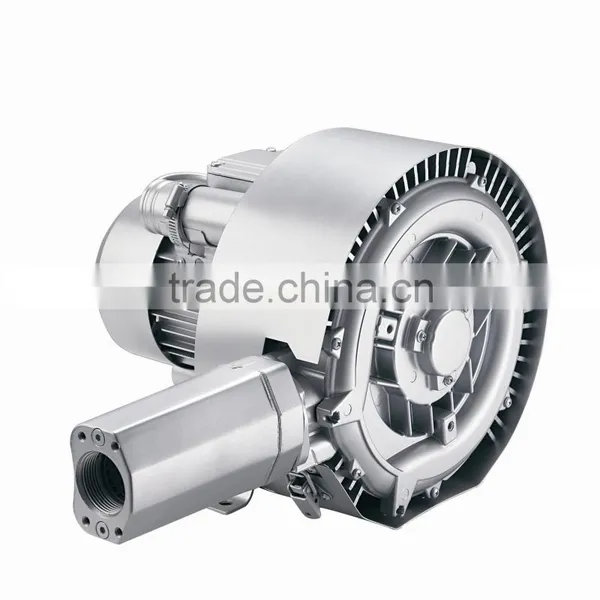

Ring Blower 2RB 7 Series

Ring Blower 2RB 7 Series thumbnail-1
Ring Blower 2RB 7 Series photo-1
US$ 80 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
zhangoco
Model Number:
2RB
Contact Supplier Request Quote Chat Now
Shanghai Zhangao Electric Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name zhangoco
Model Number 2RB
Type Pump

Specifications

1. CE aprroved
2. High Pressure and vacuum
3. IP 54
4. Die cast Aluminium
5. Oil free ring blower

Air pumps/ Air Blower/Side Channel blower / Ring Blower/ Regenerative Blower



Advantage:

  1. Oil Free
  2. Compact light weight design
  3. Maintenance free
  4. Handles vacuum or pressure applications
  5. Operate quietly
  6. Cooler running outboard bearing
  7. Increase service life
  8. Ideal alternative to standard rotary
  9. CE approved, IP55, insulation class F
  10. Easy to install

Certification

CE



Detailed specifiation:



41 ·2RB 710 H06 Single 50 1.6 200-240Δ 345-415Y 8.5Δ/4.9Y 318 -160 150 69 26
60 2.1 220-275Δ 380-480Y 8.8Δ/5.5Y 376 -160 150 72
42 ·2RB 710 H16 Single 50 2.2 200-240Δ 345-415Y 10Δ/5.6Y 318 -210 200 69 29
60 2.55 220-275Δ 380-480Y 10.3Δ/6.5Y 376 -210 200 72
43 ·2RB 710 H26 Single 50 3 200-240Δ 345-415Y 12.5Δ/7.2Y 318 -270 290 69 34
60 3.45 220-275Δ 380-480Y 12.5Δ/7.3Y 376 -250 230 72
44 2RB 710 H37 Single 50 4 345-415Δ600-720Y 9.0Δ/5.2Y 318 -290 330 69 42
60 4.6 380-480Δ660-720Y 9.4Δ/5.2Y 376 -330 330 72
45 2RB 730 H06 Single 50 1.6 200-240Δ 345-415Y 8.5Δ/4.9Y 420 -100 100 70 32
60 2.05 220-275Δ 380-480Y 8.8Δ/5.5Y 500 -110 80 73
46 2RB 730 H16 Single 50 2.2 200-240Δ 345-415Y 10Δ/5.6Y 420 -170 170 70 37
60 2.55 220-275Δ 380-480Y 10.3Δ/6.5Y 500 -160 120 73
47 2RB 730 H26 Single 50 3 200-240Δ 345-415Y 12.5Δ/7.2Y 420 -220 220 70 43
60 3.45 220-275Δ 380-480Y 12.5Δ/7.3Y 500 -200 190 73
48 2RB 730 H37 Single 50 4 345-415Δ600-720Y 9.0Δ/5.2Y 420 -260 310 70 43
60 4.6 380-480Δ660-720Y 9.0Δ/5.2Y 500 -260 280 73
No. Model Single or double grade Frequency Rating Output voltage Rating Max. Max.Inlet Max.Outlet Noise Weight
Power Current Air flow Pressure Pressure
  HZ KW V A m3/h mbar mbar dB(A) Kg





 Ring blower 2RB 7 Series





















Application:



Ring blower 2RB 7 SeriesRing blower 2RB 7 Series



PACKING AND STORAGE





Ring blower 2RB 7 Series

Ring blower 2RB 7 Series





Workshop











Ring blower 2RB 7 Series



Ring blower 2RB 7 Series
