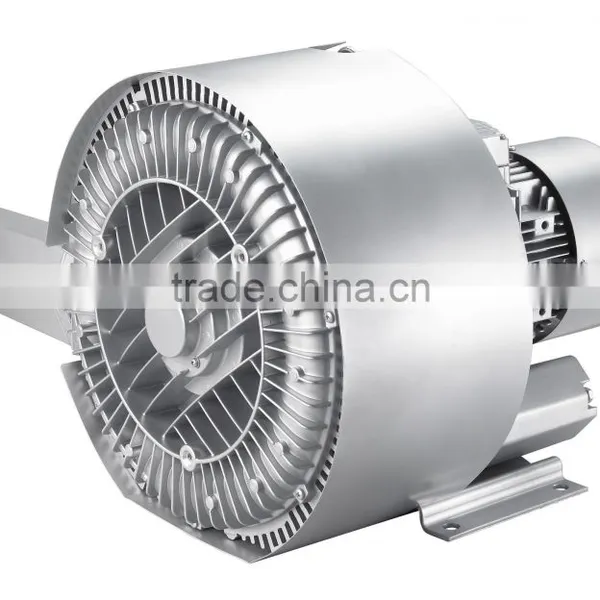

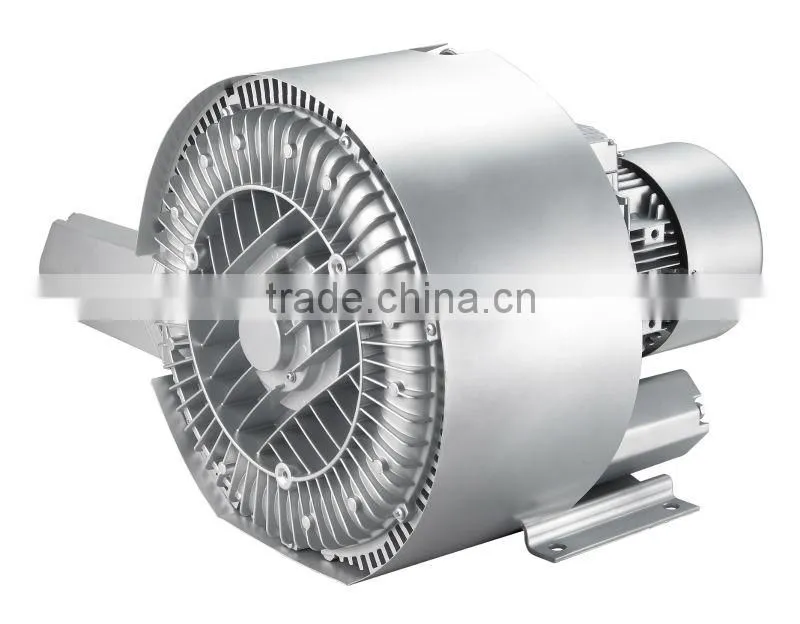

Ring blower 2RB 7 d Series

Specifications

1. CE aprroved
2. High Pressure and vacuum
3. IP 54
4. Die cast Aluminium
5. Oil free ring blower

Air pumps/ Air Blower/Side Channel blower / Ring Blower/ Regenerative Blower



Advantage:

1. Oil Free
2. Compact light weight design
3. Maintenance free
4. Handles vacuum or pressure applications
5. Operate quietly
6. Cooler running outboard bearing
7. Increase service life
8. Ideal alternative to standard rotary
9. CE approved, IP55, insulation class F
10. Easy to install

Certification

CE



Detailed specifiation:







No.	Model	Single or double grade	Frequency	Rating	Output voltage	Rating	Max.	Max.Inlet	Max.Outlet	Noise	Weight
				Power		Current	Air flow	Pressure	Pressure
			HZ	KW	V	A	m3/h	mbar	mbar	dB(A)	Kg
49	·2RB 720 H16	Double	50	2.2	200-240Δ 345-415Y	9.7Δ/5.6Y	320	-220	210	73	42
			60	2.55	220-275Δ 380-480Y	10.3Δ/6.0Y	385	-170	150	76
50	·2RB 720 H26	Double	50	3	200-240Δ 345-415Y	12.5Δ/7.2Y	320	-280	260	73	47
			60	3.45	220-275Δ 380-480Y	12.6Δ/7.3Y	385	-230	200	76
51	·2RB 720 H37	Double	50	4.3	345-415Δ600-720Y	10Δ/5.2Y	320	-360	380	73	53
			60	4.8	380-480Δ660-720Y	10.4Δ/6.0Y	385	-350	320	76
52	·2RB 720 H47	Double	50	5.5	345-415Δ600-720Y	13.3Δ/7.7Y	320	-440	500	73	70
			60	6.3	380-480Δ660-720Y	13.3Δ/7.7Y	385	-440	500	76
53	2RB 720 H57	Double	50	7.5	345-415Δ600-720Y	16.7Δ/9.6Y	320	-440	570	73	77
			60	8.6	380-480Δ660-720Y	17.3Δ/10Y	385	-460	660	76
54	2RB 740 H37	Double	50	4.3	345-415Δ600-720Y	9.0Δ/5.2Y	500	-150	140	74	54
			60	4.8	380-480Δ660-720Y	9.0Δ/5.2Y	600	-100	100	78
55	2RB 740 H47	Double	50	5.5	345-415Δ600-720Y	13.3Δ/7.7Y	500	-240	260	74	69
			60	6.3	380-480Δ660-720Y	13.3Δ/7.7Y	600	-210	200	78
56	2RB 740 H57	Double	50	7.5	345-415Δ600-720Y	16.7Δ/9.6Y	500	-240	320	74	75
			60	8.6	380-480Δ660-720Y	17.3Δ/10Y	600	-270	300	78
57	2RB 790 H26	Single	50	2.2	200-240Δ 345-415Y	12.5Δ/7.2Y	320	-160	200	69	36
			60	3.45	220-275Δ 380-480Y	12.6Δ/7.3Y	370	-240	250	72























Application:





PACKING AND STORAGE









Workshop
