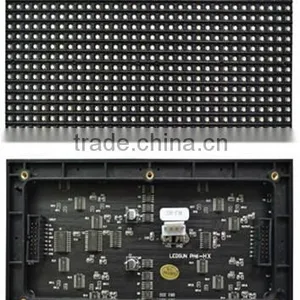

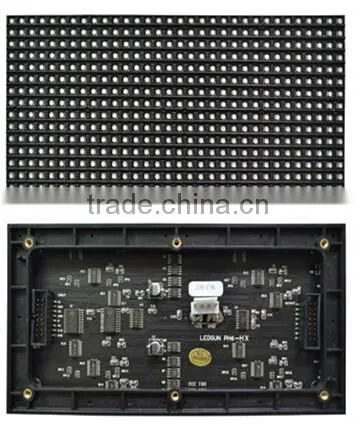

high bright p5 indoor smd full color led module
- 5000 Square Meter / Square Meters per Month
- Shenzhen
- Credit Card PayPal
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | China | Brand Name: | Proge p5 indoor led module | Model Number: | PG-IFC-P5 |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 5mm | Screen Dimension: | p5 indoor led module |
Product Description
high bright p5 indoor smd full color led module
Features:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Specification:
Indoor full color led display screen technical parameter | |
Items | P5 full color indoor led display |
Pitch size | 5mm |
Module size | 320mm*160mm/160mm*160mm |
Module pixel(dots) | 64dots*32dots/64dots*64dots |
Pixel configuration | 1Red, 1Green, 1Blue |
LED chip | Silan |
Color scale | 65536degree/16777216colors |
Pixel density | 40000pixels/square meter |
View angle(H/V) | ≥ 120/120degree |
Brightness | ≥ 800cd/square meter |
Brightness adjustment | 64 level automatic or manual |
View distance | 3--100m |
Power consumption | 100-1600W/square meter |
Net weight | less than 45kg/square meter |
Operating temperature | _ 25° C~+60° C |
Operating humidity | 10%_ 95%RH |
Life time | ≥ 100, 000hours |
Out of control dot | ≤ 1/10, 000 |
Whole Display Flatness | ≤ 1mm Juncture |
Exchange frame speed | > 150frames per second |
Refresh frame frequency | 600Hz |
Control distance | 120m (without repeater), single mode fiber: 20km, multi mode fiber: 500m |
Power | 110V/220V± 15% 50Hz |
Operating system | Windows98/Me/2000/Xp |
Drive mode | constant current driving, 1/8 scan |
Display mode | VGA640X480_ VGA1600X1024 |
Protections for outdoor display | IP54 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI |
full color smd 3528 indoor p5mm xxx small led display
