High Bright 4 Scan P10 Indoor Full Color Smd Led Module

Name: High Bright 4 Scan P10 Indoor Full Color Smd Led Module
Brand: Proge
SKU: 124865263
Availability: InStock

US$ 10 - 15 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

China

Brand Name:

Proge

Model Number:

PG-IFC-P10

Shenzhen Proge Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Proge

Model Number PG-IFC-P10

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension 320x160mm

high bright 4scan p10 indoor full color smd 3in1 led module

Features:

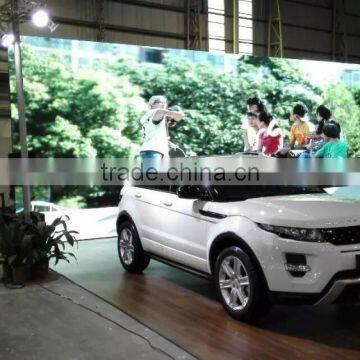

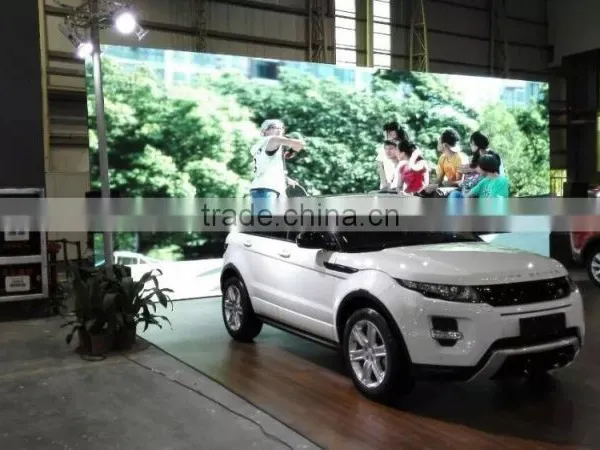

1,P10 indoor LED display is very popular in LED display advertising field. This type LED display is

widely used indoor LED video wall, on the stage of concert, as the background in the theater etc..

2,High brightness and support brightness automatically adjustment;

3,Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one

tenth of lamp or neon;

4,Easy & simple installation interface and user friendly software to ensure the user friendly interface

of the LED display system;

5,Rich indoor LED display engineering experience both in domestic and international market.

Specification:

No.	Specifications
1.	Part No.	P10 INDOOR LED SCREEN
2.	LED chip	Taiwan/Silan/Cree/Cree Cotco
3.	Physical Pixel Pitch	10mm
4.	Physical Pixel Density	10000dots/m 2
5.	Pixel composition	1Red, 1Green,1Blue
6.	Moduel Size	320mm*160mm
7.	Moduel resolution	32dots*16dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 4000nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥120°, Vertical : ≥ 120°
13.	Viewing distance	8m -150m
14.	Soft Rubber Mask	To protect player and LED display itself .
15.	Scan frequency	≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	less than 45Kg /sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Lowest power consumption	50W/sqm
23.	Peak power consumption	600W/sqm
24.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-25degree~+60degree Humidity:10%~95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI
