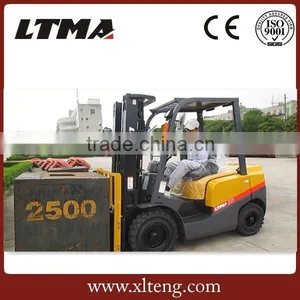

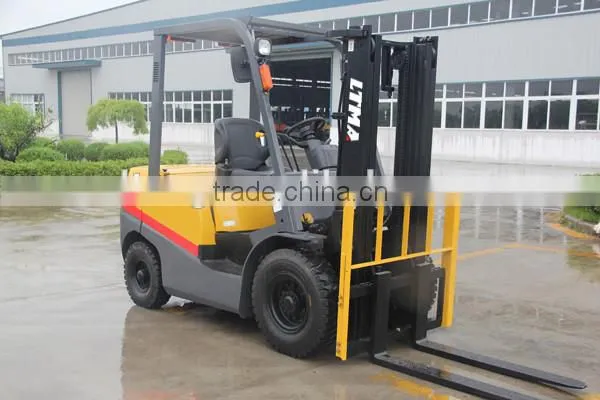

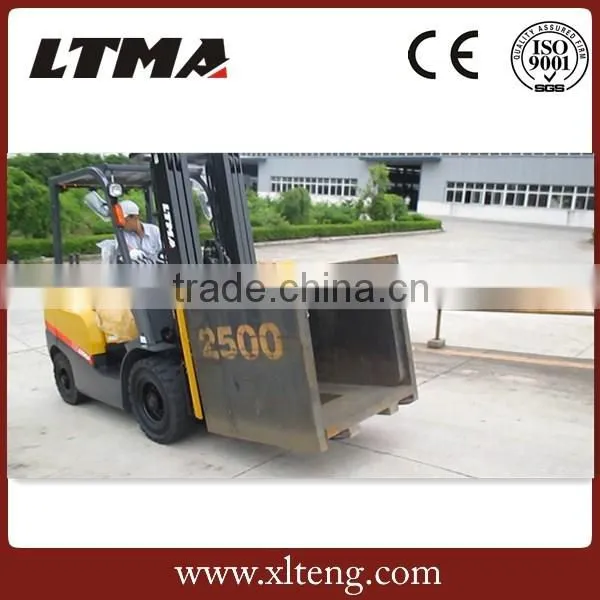

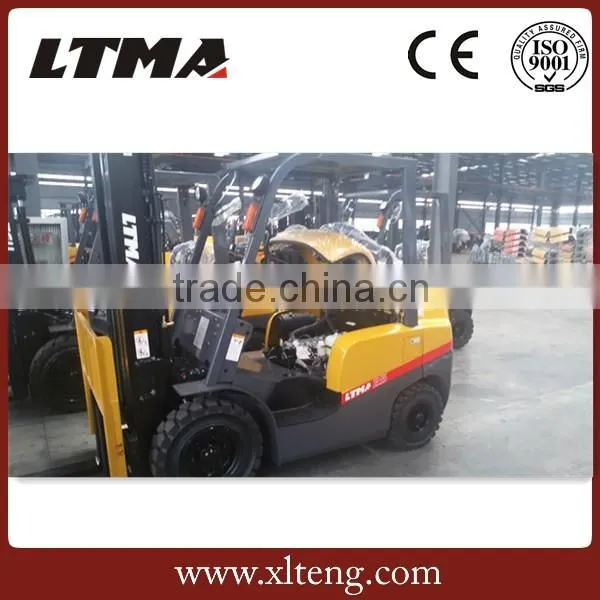

2016 Wholesale Price 2.5 ton forklift solideal tires for forklift
| FD25T Technology Specification | |||||
| Features | 1 | Manufacturer | LTMA | ||
| 2 | Model | Power shift T/M | FD25T | ||
| Manual shift T/M | FD25C | ||||
| 3 | Load capacity | kg | 2500 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Front/rear | Pnenumatic | ||
| 8 | Wheel | Front/rear | 2/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 160 | ||
| 11 | Fork size | L*W*T | mm | 1070*122*40 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2530 | ||
| 14 | Total width | mm | 1150 | ||
| 15 | Mast height (fork lowering) | mm | 1995 | ||
| 16 | Overall height fork raised | With backrest | mm | 4030 | |
| 17 | Height to head guard | mm | 2120 | ||
| 18 | Turning raduis(outside) | mm | 2240 | ||
| 19 | Front face of fork to front axle | mm | 450 | ||
| 20 | Min. right angle stacking aisle without load length&clearence | mm | 2690 | ||
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 17/19 |
| 22 | Lifting full/no load | mm/s | 550/580 | ||
| 23 | Lowering full/no load | mm/s | 450/550 | ||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 1670/830 | |
| Manual shift T/M full/no load | kg | 1700/830 | |||
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 23/18 | |
| Manual shift T/M full/no load | % | 18/18 | |||
| Weight | 26 | Truck weight | kg | 3670 | |
| 27 | Weight distribution | Full load front/rear |
kg | 5410/760 | |
| 28 | No load front/rear |
kg | 1430/2240 | ||
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 7.00-12-12PR | ||
| 31 | rear axle | 6.00-9-10PR | |||
| 32 | Wheelbase | mm | 1600 | ||
| 33 | Tread | Front/rear | mm | 970/970 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 110 | |
| Frame | mm | 115 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 |
| 37 | Engine | Model | ISUZU C240 | ||
| Rated power | kw/rpm | 34.3/2500 | |||
| Rated torque | N.m | 138/1800 | |||
| Number of cylinders | 4 | ||||
| Placement | L | 2.369 | |||
| Fuel tank capacity | L | 70 | |||
| 38 | Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |
After-sale service
We manufacturers,(LTMA) always treat the after-sale service more important than sale. Nowadays more than 10 agents around the world can supply LTMA professional after-sale service.
All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
7, How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
