Specifications
Crack sieve tube mesh welding machine1.wire diameter:2-5mm
2.tube diameter:60-1200mm
3.tube length:6000mm
4.ISO9001
Crack sieve tube mesh welding machine
Model |
60—300mm |
300—600mm |
600—1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated capacity |
100KVA |
100KVA |
100KVA |
Slot distance |
Min 0.1mm |
Min 0.25 |
Min 0.5mm |
Canister length |
Max 6000mm |
Max 6000mm |
Max 4000mm |
Weld material |
Staniless steel wire & Low carbon steel wire |
||
V-wire size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Support rod size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Overall dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KG |
11000KG |
13000KG |
Crack sieve tube mesh welding machine

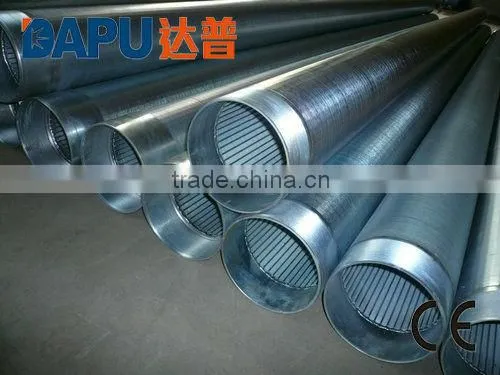

welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.
Crack sieve tube mesh welding machine
machine’s working mode: automatic mode and adjustable mode
Automatic mode: input correct variable values then the machine will work in automatic cycle.
Adjustable mode: every parts movement could be adjustable.
Crack sieve tube mesh
