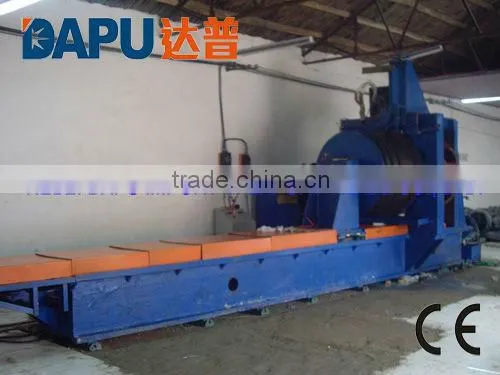

V-type Wire Tube Welding Machine, V-type Wire Screen Welding Machine

Name: V-type Wire Tube Welding Machine, V-type Wire Screen Welding Machine
Brand: DAPU
SKU: 124853433
Availability: InStock

US$ 30,000 - 90,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hebei, China

Brand Name:

DAPU

Hebei Dapu Import & Export Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hebei, China

Brand Name DAPU

Usage V-type wire tube welding machine, V-type wire screen welding machine

Voltage 380V

Current 50A

Rated Duty Cycle 50%

Rated Capacity 100KW

Dimensions 13000*1500*3300mm

Weight 10t

After-sales Service Provided Engineers available to service machinery overseas

Specifications

V-type wire tube welding machine, V-type wire screen welding machine

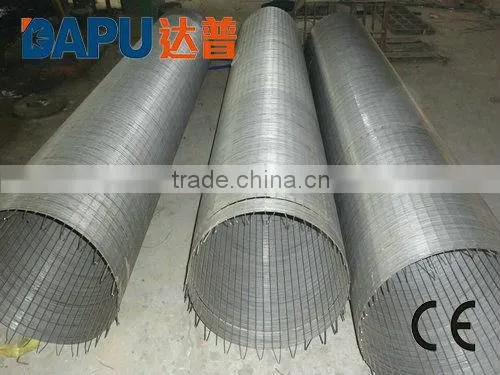

1.Wire diameter:2-5mm
2.Tube diameter:60-1200mm

V-type wire tube welding machine, V-type wire screen welding machine

Machine’s working mode: automatic mode and adjustable mode

Automatic mode: input correct variable values then the machine will work in automatic cycle.

Adjustable mode: every parts movement could be adjustable.

Model	60—300mm	300—600mm	600—1200mm
Power	3Phase 380V 50Hz	3Phase 380V 50Hz	3Phase 380V 50Hz
Rated capacity	100KVA	100KVA	100KVA
Slot distance	Min 0.1mm	Min 0.25	Min 0.5mm
Canister length	Max 6000mm	Max 6000mm	Max 4000mm
Weld material	Staniless steel wire & Low carbon steel wire
V-wire size	1.8—5.0mm	1.8—5.0mm	1.8—5.0mm
Support rod size	1.8—5.0mm	1.8—5.0mm	1.8—5.0mm
Overall dimension	1300015003300mm	1300016003400mm	1100021003800mm
Weight	10000KG	11000KG	13000KG
