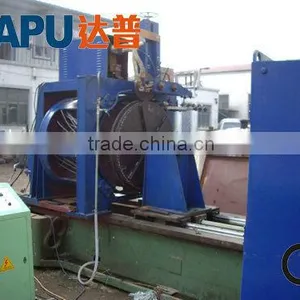

Help CenterGriddle Filter Tube Welding Machine
Related Products
-
SS Wedge Wire Screen Welding MachineUS$ 40,000 - 80,000MOQ: 1 Set -
Nonrust Steel Wedge Wire Screen Welding MachineUS$ 30,000 - 90,000MOQ: 1 Set
-
Oxidation-resisting Steel Wedge Wire Screen Welding MachineUS$ 30,000 - 90,000MOQ: 1 Set
-
Welding Machine for Wedge Wire ScreenUS$ 59,000 - 79,000MOQ: 1 Set
-
Noncorrosive Steel Wedge Wire Screen Welding MachineUS$ 30,000 - 90,000MOQ: 1 Set
Specifications
Griddle filter tube welding machine1.Wire diameter:2-5mm
2.Tube diameter:60-1200mm
3.Tube length:6000mm
4.ISO9001
Griddle filter tube welding machine
Griddle filter tube welding machine
1. Characteristics:

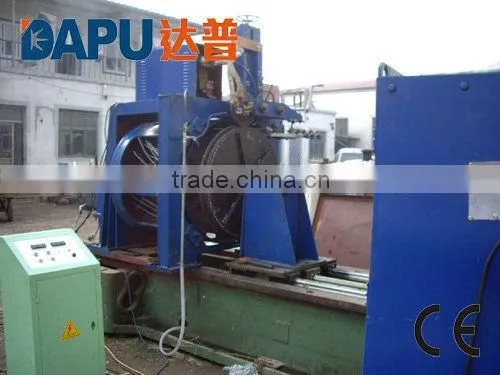

The machine is combined by CD61100 lathe, welding control cabinet, transformer roller and wire press unit. It has strongpoint of standard welding slot distance.

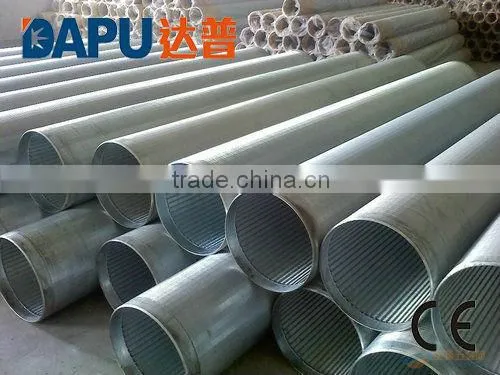

2. Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.
3. Main functions: machine’s working mode: automatic mode and adjustable mode
Automatic mode: input correct variable values then the machine will work in automatic cycle.
Adjustable mode: every parts movement could be adjustable.
Griddle filter tube welding machine
Model |
60—300mm |
300—600mm |
600—1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated capacity |
100KVA |
100KVA |
100KVA |
Slot distance |
Min 0.1mm |
Min 0.25 |
Min 0.5mm |
Canister length |
Max 6000mm |
Max 6000mm |
Max 4000mm |
Weld material |
Staniless steel wire & Low carbon steel wire |
||
V-wire size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Support rod size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Overall dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KG |
11000KG |
13000KG |
Griddle filter tube
