Specifications
Wedge wire screen welding line1)Japan Panasonnic servo motor
2)Pneumatic elements
3)Speed:6-30r/min
4)ISO9001:2000;CE

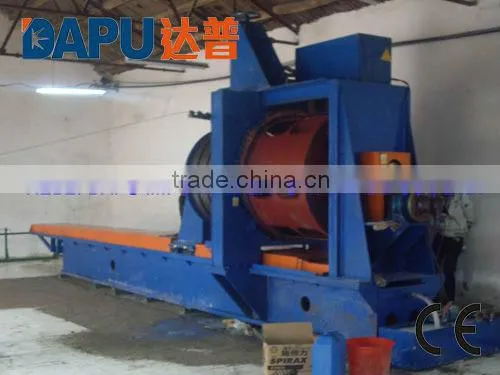

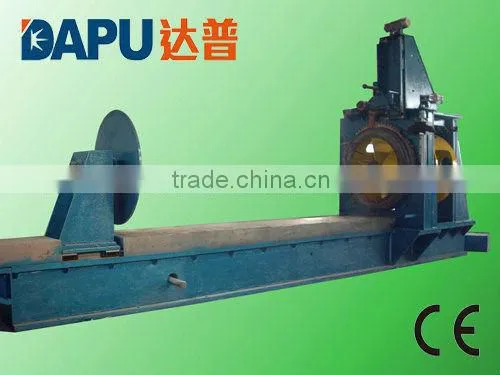

Wedged wire screen welding line
Machine Characteristics:
1.Split-hair accuracy of welding, control for both axises, servo-feed;
2.Control system:Japan Panasonnic PLC programm and HMI
3.Servo-feeds and servo-drivers:Panasonnic brand(Japan)
4.Ball and screw unit:Taiwan
5.Linear slider bearing(South Korea)
Material:
Stainless steel wire(2-5mm) and low carbon steel wire(2-5mm)
Technical Parameters:
1.Wedged wire screen diameter range: 100-400mm
2.Wedged wire screen length: max 6m
3.Slot size: 0.2-16mm
4.Welding presion: if the wire diameter tolerance is within 0.01mm, welding precision will be within +/-0.04mm.
5.Welding speed:6-30r/m adjustable based on tube diameter.
6.Welding transformer power:AC100KW
7.Driving motor power:servo motor(one 3kw, one 2kw and one 1.5kw)

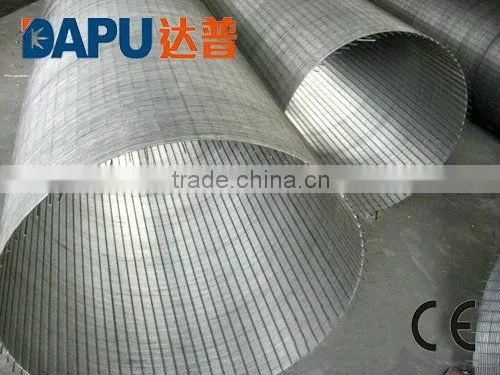

Finished Products:
