Specifications
Chicken cage mesh welding machine made in China1)Two machines for bottom and top cage mesh
2)Factory in Anping,Hebei,China
Chicken cage mesh welding machine made in China
Chicken cage mesh welding machine for bottom cage
1. This machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. The longitude wires are fed from coils. The cross wires are fed from coils while the diameter of cross wire is 1.8-2.5mm. Also the cross wires should be pre-straightened and pre-cut when the diameter of cross wire is 2.6-3.0mm.
4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.
5. Mesh pulling system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
6. Not only welding speed is fast, it is easy to learn and operate. Only one worker can finish the operation.
Chicken cage mesh welding machine for bottom cage
Wire Diameter |
1.8-3mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |

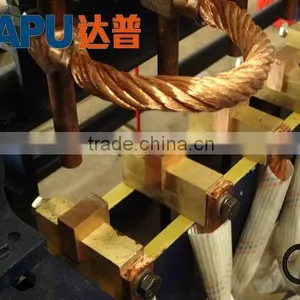

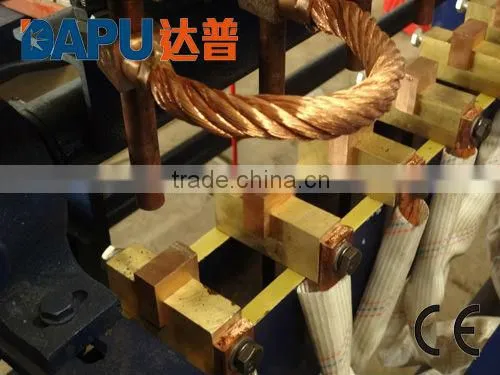

Welding Electrodes |
16 pcs |
Welding Speed |
60 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
Dia.1.8-2.5mm From wire Coils Dia.2.6-3.0mm Should be Pre-Cut |
Rated Electrical Power |
60kva*2 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size |
2.5*2.1*1.4m |
Weight |
2500kg |
Chicken cage mesh welding machine for top cage
1. The machine adopts air cylinder pulling mesh and the mesh aperture is accurate. Both sides air cylinder will cut both edges automatically.
2. The longitude wires are feeding from coils. The cross wires are feeding from coils.
3. The cross wires are feeding by servo motor automatically from coils. It can feed different length for cross wires in the same mesh sheet. It can be fed short cross wire to reserve the designed mesh hole.
4. The machine is controlled by PLC&Touch screen and it’s very easy to operate. Also the welding speed is high.
Chicken cage mesh welding machine for top cage
Wire Diameter |
2-3.5mm |
Width of Mesh |
1200mm |
Longitude Wire Space |
50-200mm |
Cross Wire Space |
25-200mm |
Welding Electrodes |
16 pcs |
Welding Speed |
45 times/min |
Longitude Wire Feeding |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
Rated Electrical Power |
60kva*2 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size |
5.5*2.1*1.5mm |
Weight |
2500kg |
Note:
Our factory can supply the auxiliary equipments,such as cage bending machine, wire straightening and cutting machine ect.
