Specifications
Pigeon cages mesh welding machine1.Easy to learn and operate
2.High speed,stable function
3.Automatic mesh cutting system

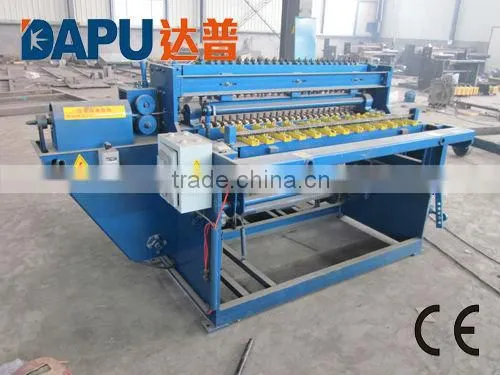

Pigeon cages mesh welding machine
There are two types you can choose, the main parameters are as follows:
Model |
120B-1 |
120B-2 |
Input power |
380V 50 Hz |
380V 50 Hz |
Max. width |
1200mm |
1200mm |
Line wire space |
25—200mm |
25—200mm |
Cross wire space |
25—200mm |
25—200mm |
Line wire diameter |
1.8—3.0mm |
1.8—3.0mm |
Cross wire diameter |
1.8—2.5mm |
1.8—3.0mm |
Rated capacity |
60kva*2 |
60kva*2 |
Welding point No. |
16 |
16 |
Motor power |
2.2kw |
2.2kw |
Feed line wire |
Coils wire |
Coils wire |
Feed cross wire |
Coil wire |
Coils wire & pre-cut wire |
Cutting mesh |
Automatic & manual |
Automatic & manual |
Welding speed |
55times/min |
55times/min |
Weight |
2500kg |
2800kg |
Dimension(l*W*H) |
2500*1800*1400mm |
2500*1800*1500mm |
Advantage:
1.Hopper device: feed cross wire automatically. Or wire feeding system: straighten and cut cross wire automatically.
2.Can be used in many kinds of cages-chicken cages, rabbite cages, pigeon cages, bird cages ect.
3.High speed, low price, high stability, high automation, precision mesh opening size.
Guarantee time:
One year since the machine was installed at buyer's factory but within 18 months against B/L date.
Pigeon cages mesh welding machine
