Specifications
Welded wire mesh machine in panel 3-6mm1.Wire diameter:3.0-6.0mm
2.Mesh width:2500mm
3.Mesh opening:50*50-300*300mm
c

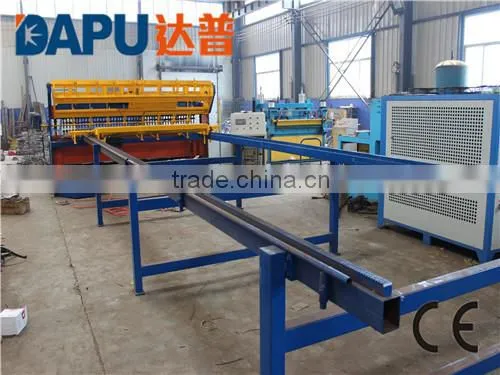

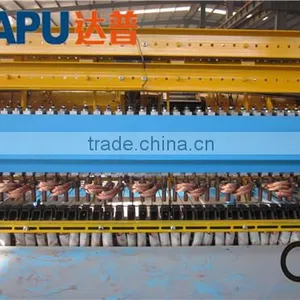

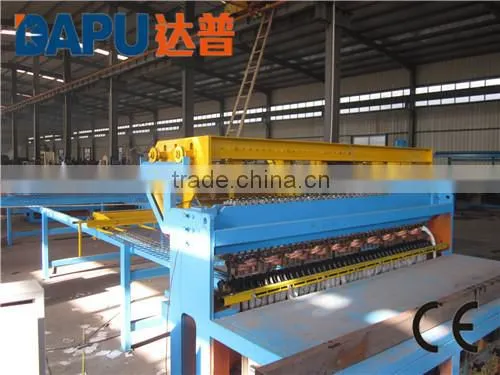

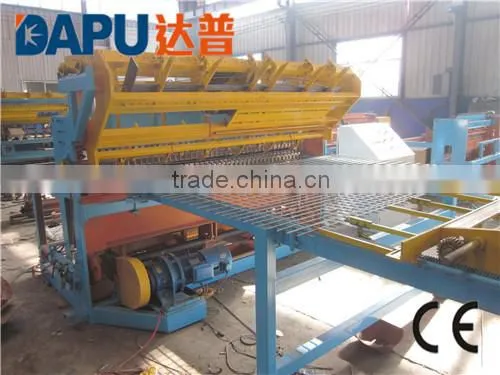

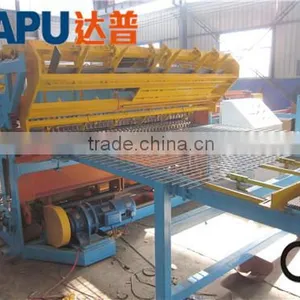

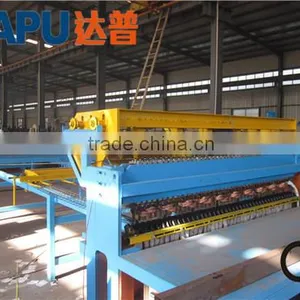

Welded wire mesh machine in panel 3-6mm
Welded wire mesh machine in panel 3-6mm
Wire Diameter |
2.5-6mm |
Width of Mesh |
2500mm |
Longitude Wire Space |
50-300mm |
Cross Wire Space |
25-300mm |
Welding Electrodes |
48 pcs |
Welding Speed |
60 times/min |
Longitude Wire Feeding |
Pre-straightened&pre-cut |
Cross Wire Feeding |
Pre-straightened&pre-cut |
Rated Electrical Power |
85kva*6 pcs |
Rated Voltage |
3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size |
8.4*3.1*1.7m |
Weight |
4200kg |
Welded wire mesh machine in panel 3-6mm
Mainly used for: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding

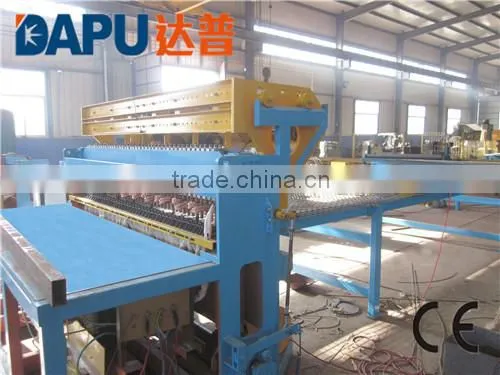

Welded wire mesh machine in panel 3-6mm

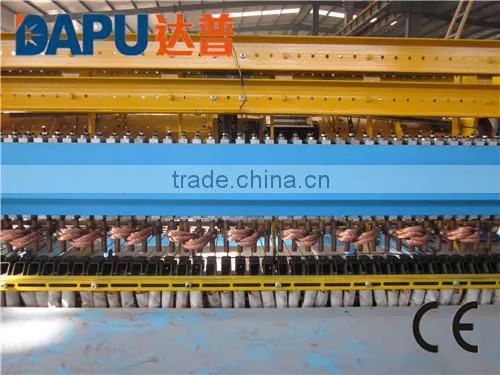

This machine adopts synchronous control technique, both welding time and separate-control welding is controlled by PLC, input panel has been divided into two kind, they are touch screen and button. This made the operation more intelligent and rationalization. This machine use electric as its motive power, and it use the step motor hopper, brake motor drive the car to put the weft. And drawing mesh use the step motor. The longitudinal and weft should be pre-cut. The biggest advantage is that can produce different aperture in both longitudinal and weft.

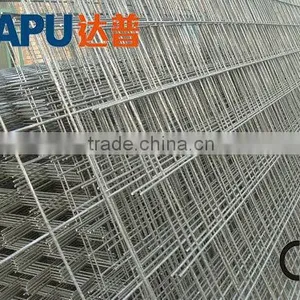

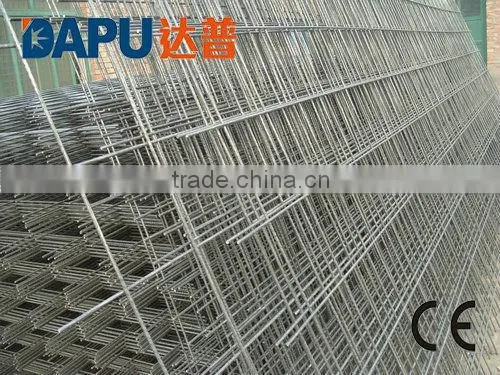

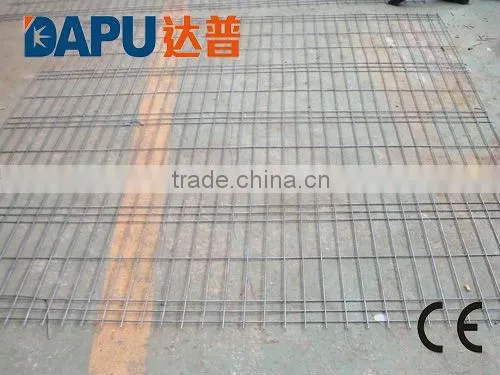

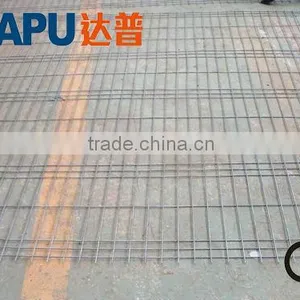

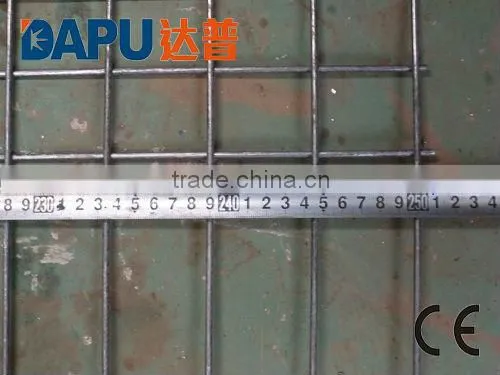

Welded wire mesh in panel
