Hi. We are a manufacturer of wire mesh machines with 18 years experience.
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine etc.

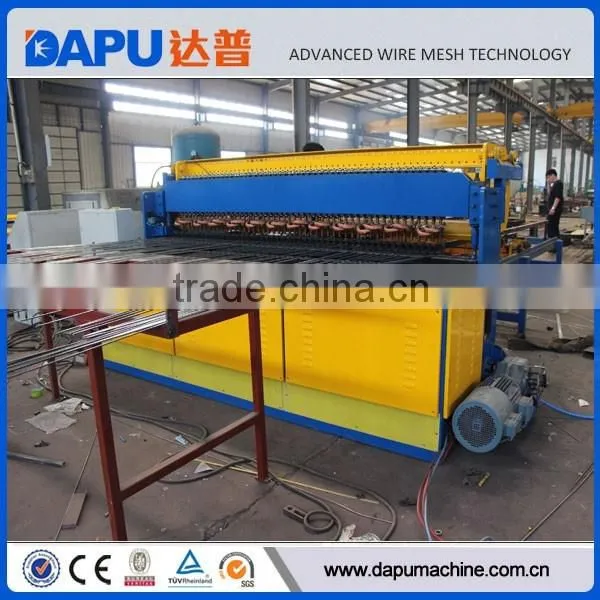

Square wire mesh fence welding machine

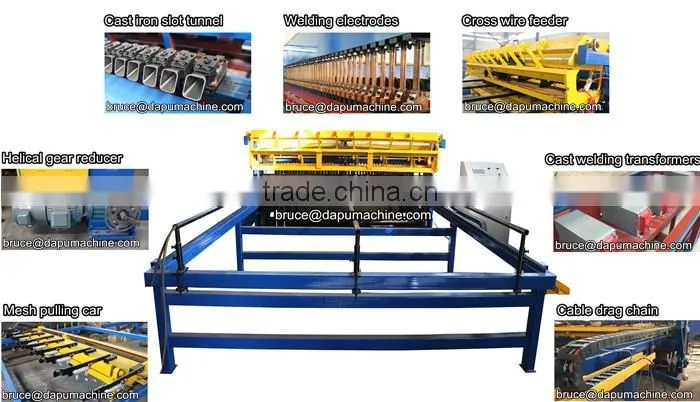

1. Main technologies
1.The control panel is more intelligent, very easy to operate. (Panasonic PLC program)
2.The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.
3.The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.
4.Pure red copper (upper) and chromised bronze (lower), durable.
5.Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

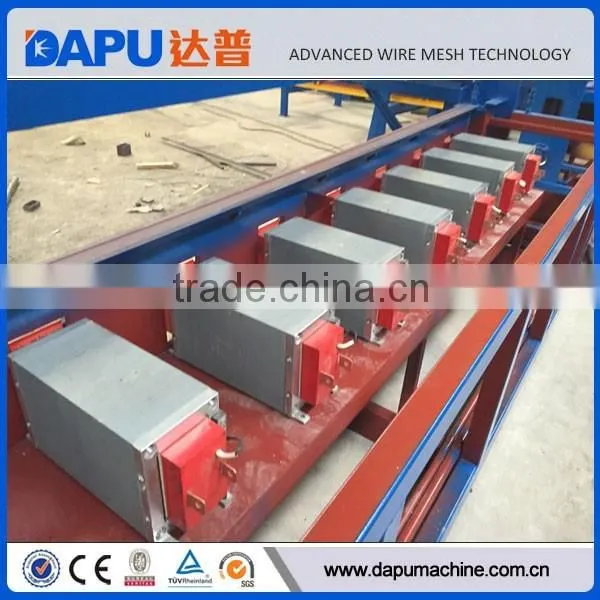

6.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

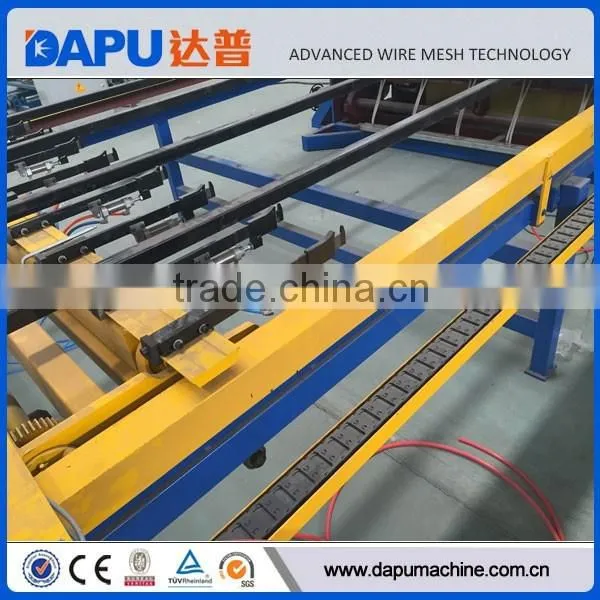

7.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8.The cable drag chain is Igus brand, imported from Germany, not easily hang down.

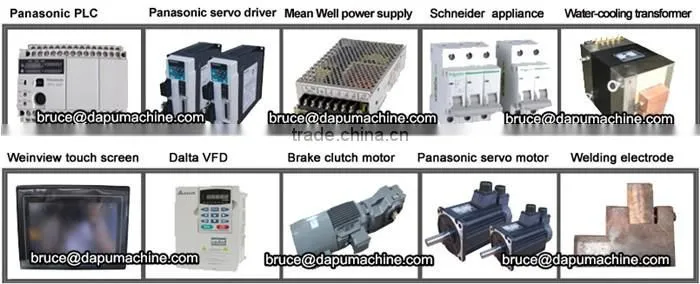

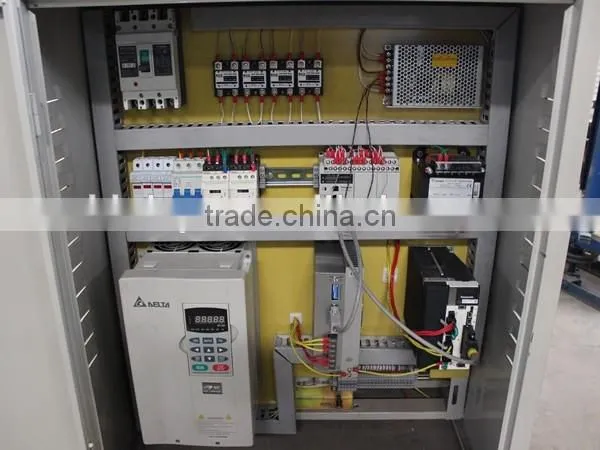

2. Main electric components
|
|
3. Technical Parameters
Model |
DP-FP-2500A |
Wire diameter |
2.5-6mm/3-5mm |
Line wire space |
50-300mm |
Cross wire space |
25/12.5mm-300mm |
Width of mesh |
Max.2.5m |
Length of mesh |
Max.6m |
Welding electrodes |
48pcs |
Welding speed |
50-75 times/min |
Rated electrical power |
125kva*6pcs |
Needed power |
Min.160kva |
Weight |
4.2T |
Overall size |
5.4m*3.2*1.7m |
4. Auxiliary Equipments

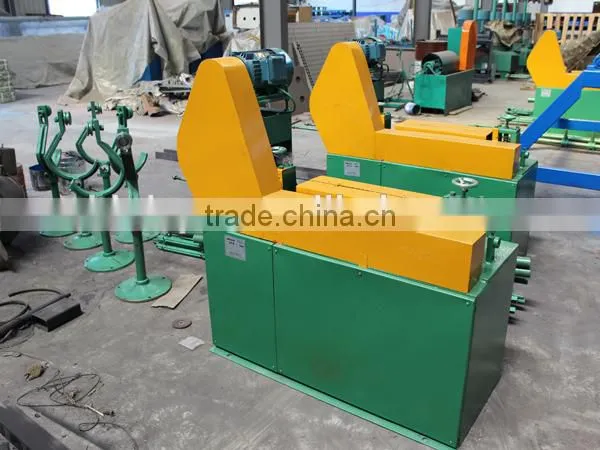

Wire straightening and cutting machine, 2 sets
|
|

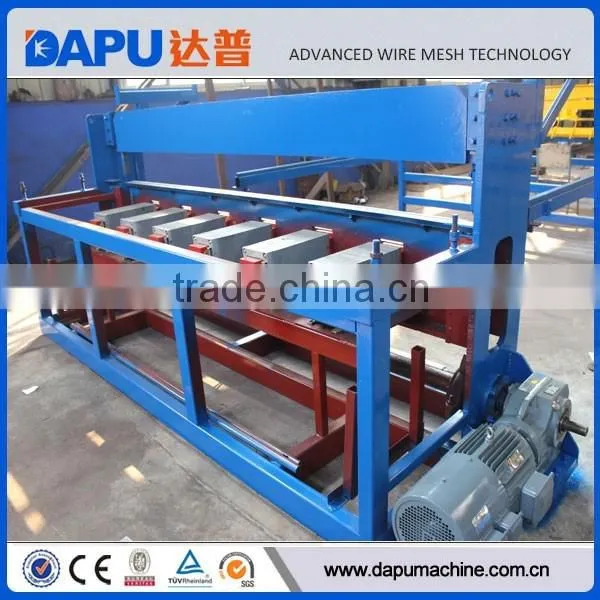

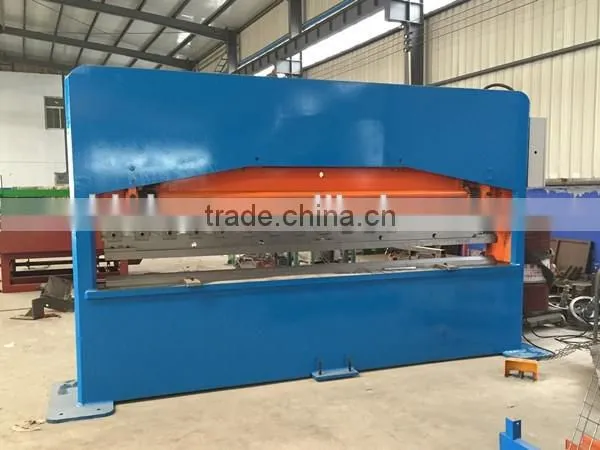

Fence mesh bending machine, 1 set
|
|

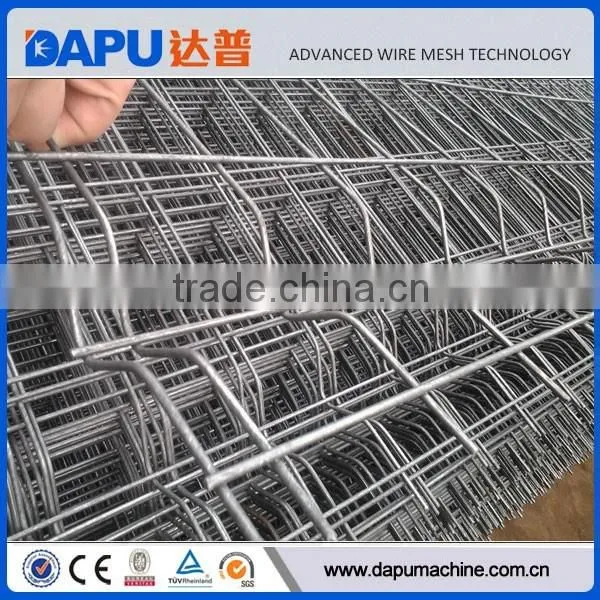

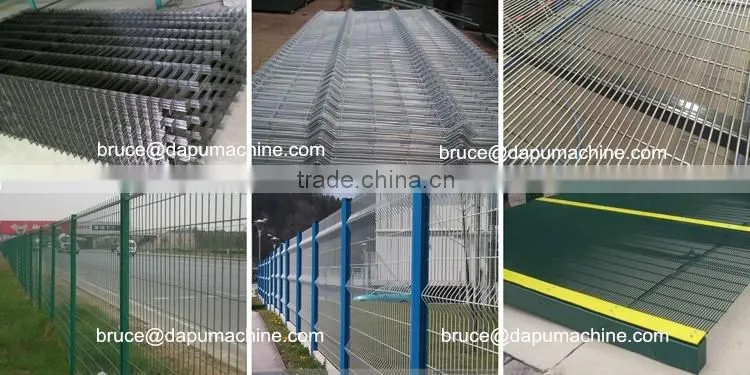

5. Finished mesh&application

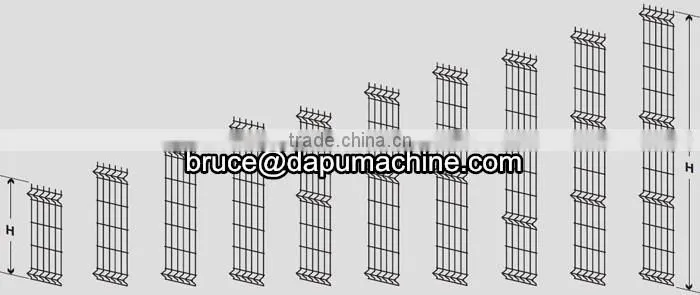

Fence panel mesh Curved fence mesh Anti-climb fence mesh (76.5*12.7mm)

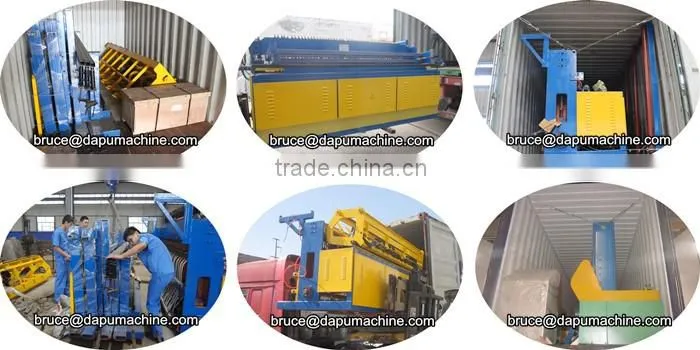

6. Loading Pictures-one 20 feet or 40 feet container
7. After-sales service
1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
8. Certificates
9. Why choose us?
1. Best machine quality
2. Advanced wire mesh technology
3. Delivery on time
4. Competitive price
5. Thirty-party inspection accept
6. Trade assurance 600000+USD
7. CE certificate
10. Contact Info
Inquiry now. We will reply as soon as possible.
