Good Quality R6160 Diesel Engine for Marine Used

Weifang U-Power Co., Ltd.
Good Quality R6160 Diesel Engine for Marine Used thumbnail-1
Good Quality R6160 Diesel Engine for Marine Used photo-1
US$ 1,500 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Boat
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Multi-cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Shandong, China
Brand Name weichai
Model Number R6160
Dimension(L*W*H) 2369x905x1425(mm)
Weight 2400 (KG)
Certification CCS/BV/ISO9001/CE certification
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

water cooled diesel engine for marine used
1)Energy saving 10%
2)International warranty one year
3)Large power,large torque

R6160  diesel engine for marine used



The speed of R6160 series is 1000r/mine with a power range of 164kw(223

hp)--255kw(350hp).

gear boxes can be applied to the engine sets with the speed ratio from 2:1 /2.5:1/3:1/3.5:1/4:1

R6160 seiries deisel engine is a new generation of 6160series which is developed by Weifang diesel engine factory in 203 to meet the requirement of market. This product integrates the intemationally-advanced engine design conception with the 50-year-long engine manufacturing experience of Weichai, boasting wide power range, low consumption and excellent emission targets.

The design of the R6160 is based on the conception of better performance, lower consumption, convenient operation and people-oriented. The main alteration includes:

Optimizing and improving the fuel system, intake and exhaust system, cooling system, lubrication system on the basis of original 6160 series.

Adopting such advanced device as wet oil pan, eletrical pre-supply fuel pump, electric starting motor and sea-fresh water heat exchanger.

While iheriting strongpoint of the original 6160, the performance is improved and the fuel cosumption is lowered ( no more than 205g/kw.h).

The operation is simplified: there's no need to pump oil manually while atarting the engine.

This 6160 series diesel engine, designed out of brand new conception, has reached internationally advanced position.



Model List:



R6160 Series Marine Diesel Engine Model List
Engine Model R6160A-2R6160A-4R6160A-6R6160ZCR6160ZC4R6160ZC2R6160ZC380R6160ZC408R6160ZC450
Cylinder No.-666666666
Bore/Strokemm160/225160/225160/225160/225160/225160/225160/225160/225160/225
DisplacementL27.1427.1427.1427.1427.1427.1427.1427.1427.14
Rated PowerkW164184202255220255280300330
Rated Speedr/min100010001000100010001000100010001000
Srarting Method-ElectricElectricElectricprneumatic motorElectricElectricElectricElectricElectric
Overhaul Periodh≥12000≥12000≥12000≥12000≥12000≥12000≥12000≥12000≥12000
Net weightkg335033503400340034003400340034003400
Size
(LxWxH)		mm2435×967×15792435×967×15792562×967×15792644×967×15792644×967×15792644×967×15792644×967×15792644×967×15792644×967×1579





6160 Series Marine Diesel Engine Model List
Engine Model 6160A-16160A-1216160A-126160A-1236160A-1256160A-136160A-13G6160A-17X6160ZCX6160ZC2X6160ZC5X6160ZC6?
Cylinder No.-666666666666
Bore/Strokemm160/225160/225160/225160/225160/225160/225160/225160/225160/225160/225160/225160/225
DisplacementL27.1427.1427.1427.1427.1427.1427.1427.1427.1427.1427.1427.14
Rated PowerkW90110124136147164184202220255220255
Rated Speedr/min7508507508508501000100010001000100010001000
Srarting Method-compression air starting Prneumatic Motor
Overhaul Periodh120001200012000120001200012000120001200012000120001200012000
Net Weightkg240024002450245024502450245025002500265026502650
Sizemm2291×905×13452367×905×14252581×905×14242595×905×14542544×923×14582602×967×1461
(LxWxH)



good quality R6160 diesel engine for marine used






WHY CHOOSE US?
1)Ten years  experience,make us more  professional than other suppliers.
2)Quick delivery: 7-15 working days delivery time
3)Perfect after sale service: provide internatinal warranty service.
4)Pay attention to quality: 3 hours test before out factory
5) Environmental protection and energy saving : low noise, low emission,low fuel consumption.
6)Once establish business relationship in the long way, can share our VIP price.




Packing plywood case

Unit PriceFOB QINGDAO,
Payment TermsT/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment.When got full payment,we release the full set of Original DOCS.
Delivery Time10 working days after received 30%deposit
MOQ1SET
Warranty 1year/1500hrs




bove table is just a reference of our product, in fact we can manufacture diffetent kinds of diesel engine with different power and performance, we are sincerely looking for partners to develop oversea market together, any questions free to let

us know,your kindly feedbacks and suggestion will be highly appreciated.



WEIFANG U-POWER CO.,LTD.
Hanting District,Weifang City,Shandong Province,P.R.China
TEL:0086-536-2222690  FAX:0086-536-2222661

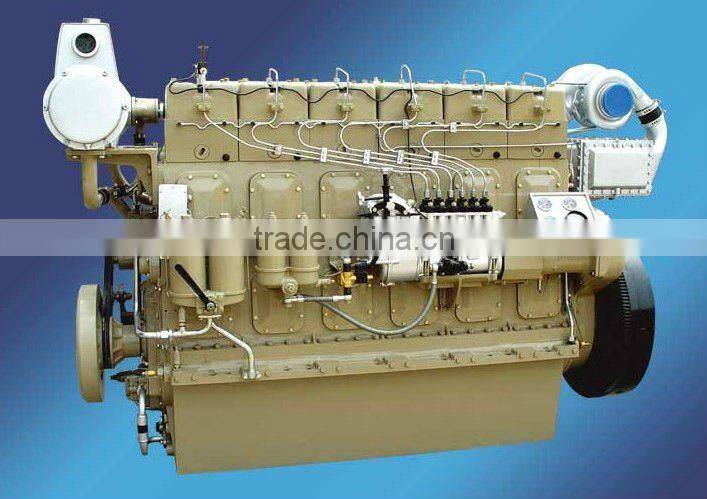

 Reference picture
