Home > Industrial Equipment & Components > Engine & Part > Engine > CE Approval 300kw CCFJ300J-WD Marine Generator Made in Weifang City

CE Approval 300kw CCFJ300J-WD Marine Generator Made in Weifang City

Name: CE Approval 300kw CCFJ300J-WD Marine Generator Made in Weifang City
Brand: Weichai
SKU: 124785367
Availability: InStock

US$ 4,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Usage:

Other, Boat, boat generating

Fuel:

Diesel

Weifang U-Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Boat, boat generating

Fuel Diesel

Stroke 4 Stroke

Cylinder Other, 6 Cylinder

Cold Style Other, forced water cooled

Start Other, Electric start, motor start or compressed air start

Place of Origin Shandong, China

Brand Name Weichai

Model Number CCFJ300J-WD

Dimension(L*W*H) 4500*1300*2320

Weight 6000kg

Certification ISO/CCS/ZY/BV

Warranty 1 year, 1year/1500 hours

After-sales Service Provided Overseas service center available

Specifications

1)marine generator output range: 300kW
2)marine generator compressed ratio 14.5:1
3)marine generator certificate:CCS,ZY,BV

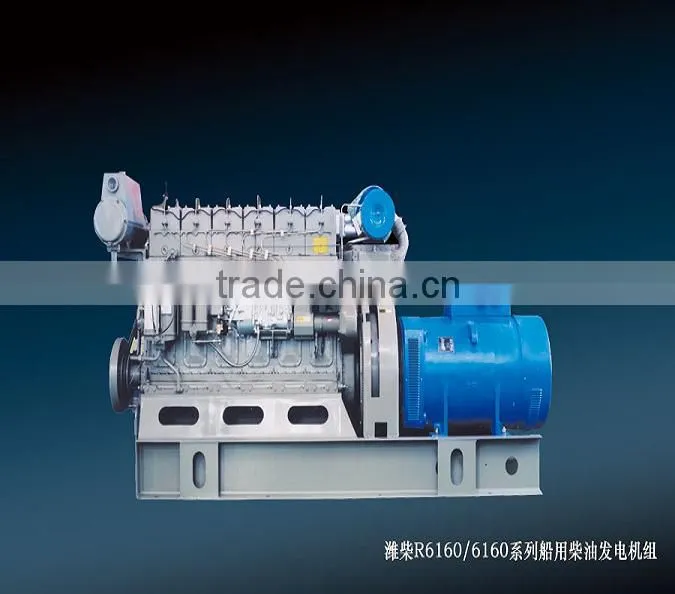

R6160/6160 Series Marine Generators

Model List for Weichai R6160/6160 Series Marine Generating Sets

Genet Model	Continuous output(kW)	Rated Voltagey(V)	Rated currency(A)	Rated loading fuel consump(kg/h)	Weichai R6160/6160 Series Diesel Engine				Exciting method	Alternator Manufacturer
Genet Model	Continuous output(kW)	Rated Voltagey(V)	Rated currency(A)	Rated loading fuel consump(kg/h)	Engine model	Max output(kW)	Rated speed(r/min)	Governing method	Exciting method	Alternator Manufacturer
CCFJ150J-WD	150	400	271	33.7	6160A-153	188	1000	Mechanic	Phrase multi-exciting	Lanzhou
CCFJ160J-WD	160	400	288	36	R6160A-4	202.4	1000	Mechanic	Phrase multi-exciting	Lanzhou
CCFJ200J-WD	200	400	361	41	R6160ZC	258.5	1000	Mechanic	Brushless	Lanzhou
CCFJ250J-WD	250	400	461	51	X6160ZC	308	1000	Mechanic	Brushless	Lanzhou
CCFJ300J-WD	300	400	541	611	R6160ZC	360	1000	Mechanic	Brushless	Lanzhou

Technical Parameters for Weichai R6160/6160 Series Marine Generating Sets

Model	Weichai R6160/6160 Series
Type	Water cooled, vertical, four stroke, direct injection, turbocharged/turbocharged intercooled
Cylinders numbers	6
Bore/stroke(mm)	160/225
Compressed ratio	14.5:1
Displacement(L)	27.14
Rated speed(r/min)	1000
Output range(kW)	184-288
Fue Weichai R6160/6160 Series Marine Generating Sets l consumption(g/kW.h)	≤197
Oil consumption	≤1.23
Stable governing rate	≤5%
Starting method	Electric start, motor start or compressed air start
Cooling method	Forced water cooled
Noise db(A)	≤108
Smoke(Bosch)	≤1.5
