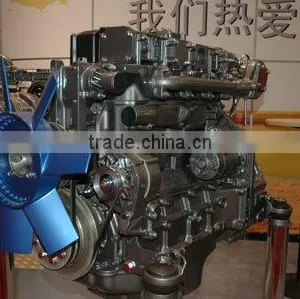

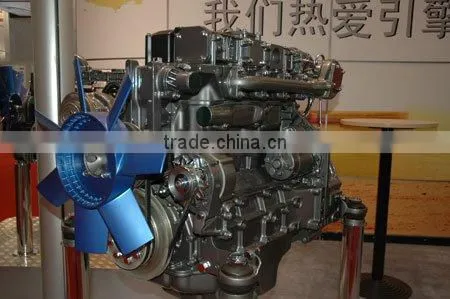

Low Price! Weichai Marine Diesel Engine With CCS Certificate

Name: Low Price! Weichai Marine Diesel Engine With CCS Certificate
Brand: Weichai
SKU: 124785307
Availability: InStock

US$ 4,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Usage:

Other, Boat, Boat engine

Fuel:

Diesel

Weifang U-Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Boat, Boat engine

Fuel Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Shandong, China

Brand Name Weichai

Model Number R6160

Dimension(L*W*H) 2367*905*1425

Weight 3400kg

Certification ISO/CE/CCS/ZY/BV

Warranty 1 year, 1year/1500 hours

After-sales Service Provided Overseas service center available

Specifications

Weichai Marine diesel engine
1)6cylinders,126*130mm
2)turbocharged intercooled
3)

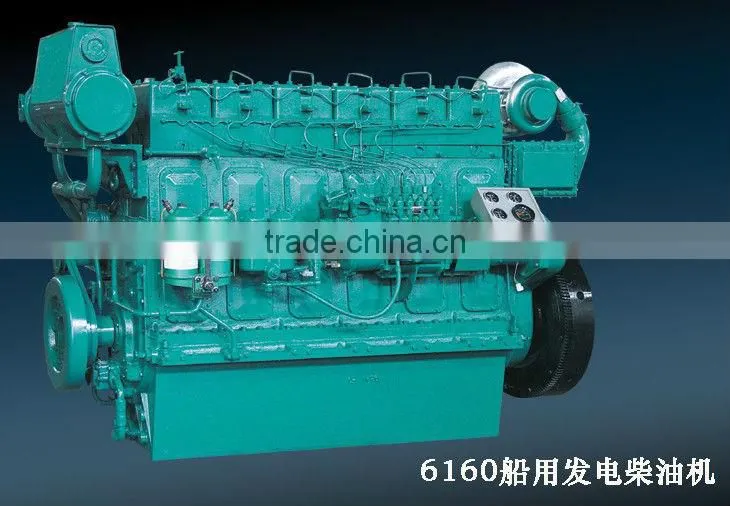

Weichai marine Diesel Engine R6160 series

1.Weichai boat diesel engine
2. 6 cylinder marine engine
3. Chinese famous marine engine
4. engine for ships and yacht

5.power range from 110 to 220kW
6.speed range from 1500 to 2100rpm
7.high reliability low smokepower
8.CE ISO9001:2000

Model List:

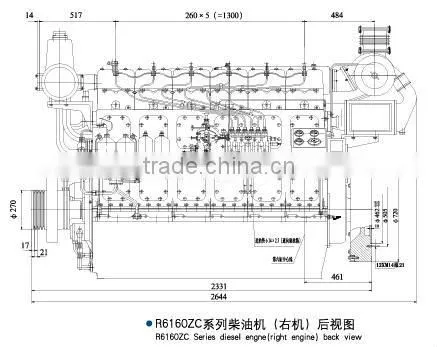

R6160 Series Marine Diesel Engine Model List
Engine Model		R6160A-2	R6160A-4	R6160A-6	R6160ZC	R6160ZC4	R6160ZC2	R6160ZC380	R6160ZC408	R6160ZC450
Cylinder No.	-	6	6	6	6	6	6	6	6	6
Bore/Stroke	mm	160/225	160/225	160/225	160/225	160/225	160/225	160/225	160/225	160/225
Displacement	L	27.14	27.14	27.14	27.14	27.14	27.14	27.14	27.14	27.14
Rated Power	kW	164	184	202	255	220	255	280	300	330
Rated Speed	r/min	1000	1000	1000	1000	1000	1000	1000	1000	1000
Srarting Method	-	Electric	Electric	Electric	prneumatic motor	Electric	Electric	Electric	Electric	Electric
Overhaul Period	h	≥12000	≥12000	≥12000	≥12000	≥12000	≥12000	≥12000	≥12000	≥12000
Net weight	kg	3350	3350	3400	3400	3400	3400	3400	3400	3400

Engine Model	R6160ZC2
Rated output	255KW/350HP
Rated speed(r/min)	1000
Type	Water cooled, inline, 4-stroke, wet cylinder liner, direct injection, turbocharged inter-cooled
Num of cylinders	6
Bore/Stroke(mm)	160/225
Fuel consumption(g/kW.h)	≤215
Stable governing rate(%)	≤10(mechanical)
Starting method	Compressed air starting
Idle speed(r/min)	600±50
Smoke(Rb)	≤1.0
Displacement(L)	27.14
(dB(A)) Noise	≤105
Net Weight(Kg)	3400
Size(mm)	2544×923×1458
Crankshaft rotation direction	counter clockwise(face to flywheel end)
Gearbox Model	WHG300
Ratio	3:1
Packing	plywood case
Payment Terms	T/T30% deposit,balance before shipment
Delivery Time	20-30working days after received 30%deposit
MOQ	1 set
