Low Price ! 250-400KW Marine Generator Made in Weifang City

Name: Low Price ! 250-400KW Marine Generator Made in Weifang City
Brand: WEICHAI
SKU: 124785339
Availability: InStock

US$ 20,000 - 25,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

WEICHAI

Model Number:

R6160/170 series

Weifang U-Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name WEICHAI

Model Number R6160/170 series

Output Type AC Three Phase

Speed 1000rpm

Frequency 50hz

Rated Power 250-400kw

Rated Voltage 380/400

Rated Current 36A

Specifications

1)marine generator output range: 250-400kW
2)compression ratio 14.5:1
3)certificate:CCS,ZY

R6160/170Z Series Marine Generator

Technical Parameters for Weichai R6160/6160 Series Marine Generating Sets

Model	Weichai R6160/6160 Series
Type	Water cooled, vertical, four stroke, direct injection, turbocharged/turbocharged intercooled
Cylinders numbers	6
Bore/stroke(mm)	160/225
Compressed ratio	14.5:1
Displacement(L)	27.14
Rated speed(r/min)	1000
Output range(kW)	184-288
Fuel consumption(g/kW.h)	≤197
Oil consumption	≤1.23
Stable governing rate	≤5%
Starting method	Electric start, motor start or compressed air start
Cooling method	Forced water cooled
Noise db(A)	≤108
Smoke(Bosch)	≤1.5

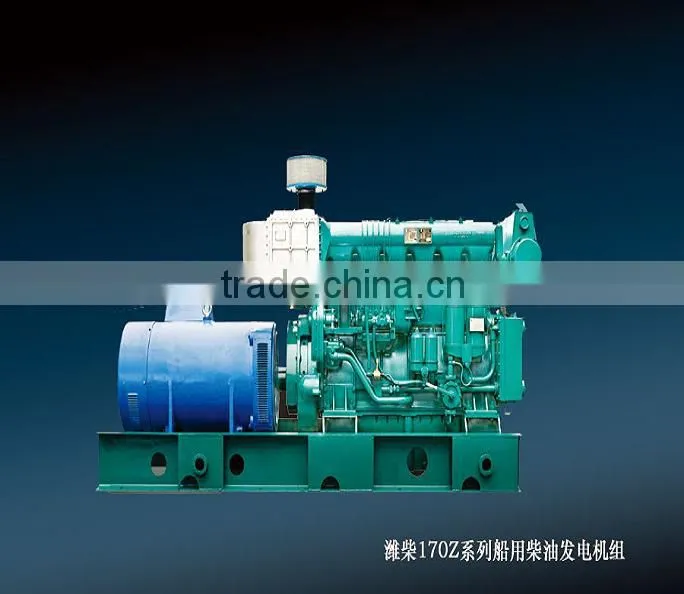

Technical Parameters for Weichai 170Z Series Marine Generating Sets

Type	Four stroke, vertical, in-line, injection, water cool, turbocharged, turbocharged intercooled
Cylinder numbers	6/8
Bore/stroke	170/200
Compression ratio	14.5:1
Displacement(L)	27.24/36.32
Min fuel consumption(g/kW.h)	≤197
Min oil consumption(g/kW.h)	≤1.0
Noise db(A)	≤108
Stable governing rate	≤5%
Firing sequence	1-5-3-6-2-4/ 1-6-2-4-8-3-7-5
Starting method	Electric starting or air starting
Cooling method	Dual-circulation water cooling
Lubricating method	Forced lubricating
Oil volume(L)	70
Smoke(Bosch)	≤1.5
Net weight	3100/3800
