50kw Deutz Diesel Generator Set Foe 2014 New Product

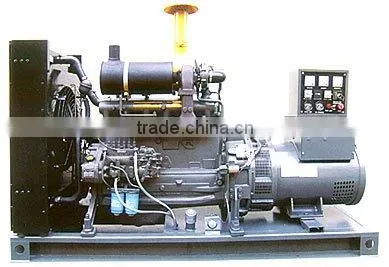

50kw Deutz Diesel Generator Set Foe 2014 New Product photo-1
Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
U-POWER
Model Number:
50GFD05
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name U-POWER
Model Number 50GFD05
Output Type AC Three Phase
Speed 1500/1800RPM
Frequency 50/60HZ
Rated Power 27.5-165KVA
Rated Voltage 400/230V
Rated Current 150A

Specifications

50KW Diesel Generator Set
1)4 strokes,water cooled
2)low fuel consumption
3)direction injection
4)turbocharged/intercooled

50KW Diesel power generator set

50kw Deutz Diesel Generator Set foe 2014 new productWeichai Deutz 226B Series Land Generating Sets is matched by 226B series diesel engine made by the joint venture of Germany and our company, and alternators of famous brand such as Stamford or Marathon. The continuous output is from 18kw to 120kw. It is departed into normal generating set and automatic generating set (AMF) according to its control method. It can be matched into trailer type, closed frame type etc.

Main components of the generating sets:

Alternator: Marathon, or Stanford alternator;

Control Panel:  Control panel is installed on common base by shock absorber. Air filter is accompied when the generating sets is delivered.

Optional components: Engine protection module, parallel equipment, common base oil tank, electric governor, automatic start, automatic transfer switch(ATS), remote-control equipment, closed frame type, rain-proof sheld, and trailer type.

Genset Model Standby output
(kVA)
Rated voltage
(V)
Min fuel consumption (g/kW.h) Weichai Deutz 226B Series Diesel Engine Alternator manufacturer Exciting method Structure
Model Max output (kW) Rated speed
r/min
Governing method Starting method Cooling method
WD27.5/3991 27.5 400/230 198 D226B-3D 33 1500 Mechanical Electrical Closed cool Marathon Brushless Integral
WD30/3992 30 400/230 198 D226B-3D 33 1500 Mechanical Electrical Closed cool Stamford
WD33/3991 26.4 400/230 198 D226B-3D 33 1500 Mechanical Electrical Closed cool Marathon
WD34/3992 34 400/230 198 D226B-3D 33 1500 Mechanical Electrical Closed cool Stamford
WD41/3991 41 400/230 198 TD226B-3D 49.5 1500 Mechanical Electrical Closed cool Marathon
WD41/3992 41 400/230 198 TD226B-3D 49.5 1500 Mechanical Electrical Closed cool Stamford
WD46.5/3992 46.5 400/230 198 TD226B-3D 49.5 1500 Mechanical Electrical Closed cool Stamford
WD55/3991 55 400/230 198 TD226B-4D 68 1500 Mechanical Electrical Closed cool Marathon
WD55/3992 55 400/230 198 TD226B-4D 68 1500 Mechanical Electrical Closed cool Stamford
WD68.5/3991 68.5 400/230 198 TD226B-4D 68 1500 Mechanical Electrical Closed cool Marathon
WD68.5/3992 68.5 400/230 198 TD226B-4D 68 1500 Mechanical Electrical Closed cool Stamford
WD88/3991 88 400/230 198 TD226B-6D 99 1500 Mechanical Electrical Closed cool Marathon
WD93.5/3992 93.5 400/230 198 TD226B-6D 99 1500 Mechanical Electrical Closed cool Stamford
WD103/3991 103 400/230 198 TD226B-6D 99 1500 Mechanical Electrical Closed cool Marathon
WD110/3992 110 400/230 198 TD226B-6D 99 1500 Mechanical Electrical Closed cool Stamford
WD123.5/3991 123.5 400/230 198 TBD226B-6D 132 1500 Mechanical Electrical Closed cool Marathon
WD123.5/3992 123.5 400/230 198 TBD226B-6D 132 1500 Mechanical Electrical Closed cool Stamford
WD137.5/3991 137.5 400/230 198 TBD226B-6D 132 1500 Mechanical Electrical Closed cool Marathon
WD137.5/3992 137.5 400/230 198 TBD226B-6D 132 1500 Mechanical Electrical Closed cool Stamford
WD165/3991 165 400/230 198 TBD226B-6D
13023811
145.2 1500 Electrical Electrical Closed cool Marathon
WD165/3992 165 400/230 198  TBD226B-6D
13023811
145.2 1500 Electrical Electrical Closed cool Stamford
