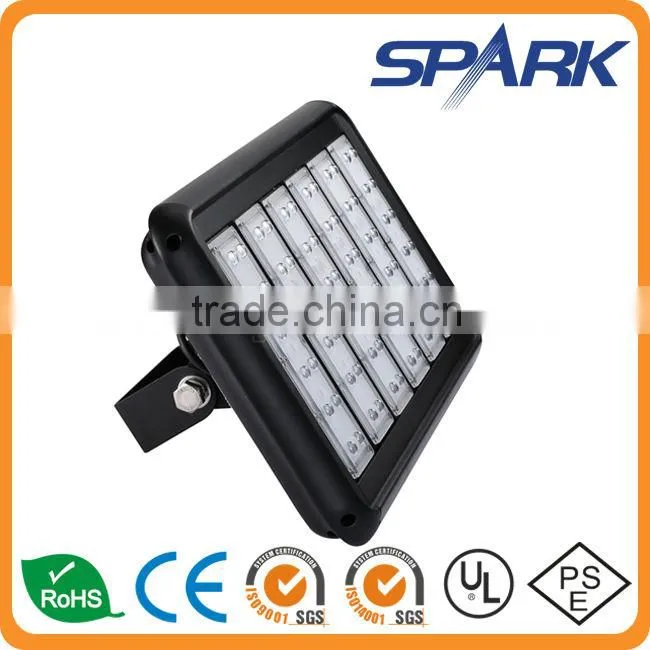

SPARK LED High-power Tunnel Light
1)More than 70% energy saving
2)Light control and time-phase dimming, further save energy
3)High quality power supply, reliable and stable, automatically reduce current against overheating temperature
4)Unique optical design & rectangular beam, suitable for roadway illumination
Spark LED Tunnel Light is designed to be outstanding dustproof and waterproof by lamp body using die-casting aluminum alloy and tempered glass and core lamp using high brightness material. Spark make every effort to perfect every details including the spare parts, improving our LED Tunnel Light to be safer, more reliable, energy-saving, longer lifespan and better applicable for public areas such as square, tunnel etc.
As professional LED Tunnel Light manufacturer, all our products have been accredited with CE & RoHS certification. In addition to standard LED Tunnel Light, we also provide customized Tunnel Light Project solution for customers. We welcome you for more information!

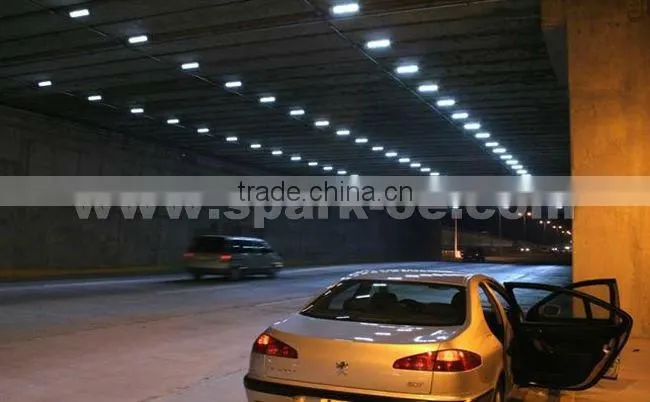

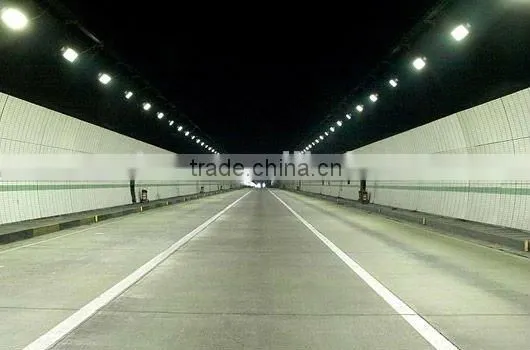

Application: tunnels, parking lots, warehouses, petrol stations etc.
Main Technology Index:
| Model No. | SPT-B180 | |
| LED Light Source | CREE XT-E R3 series LED | |
| LED Quantity | 72 x 1 PCS LED | |
| LED Luminous Efficiency | 217 lm/700mA Cool white | |
| Lamp Rated Total Power | 180W ± 10% | |
| Lamp Rated Luminous Efficiency | 95 lm/w | |
| LED Working Current | 700mA | |
| Lamp Rated Total Luminous Flux | 15,300 lm ± 10% | |
| Average lllumination and Effective Area | 3M Height | 6m×7m ≥776LUX |
| 4M Height | 8m×9.5m ≥436LUX | |
| 5M Height | 10m×12m ≥280LUX | |
| 6M Height | 12m×14m ≥194LUX | |
| Color Rendering Index(CRI) | Ra>70 | |
| Power Efficiency | 90% | |
| Color Temperature(Color Temperture) | Cool white: 5000-5700K Pure white: 4000-4500K Warm white: 3000-3500K |
|
| Beam Angle | Horizontal Axis:100° ; Vertical Axis:90° |
|
| Light Distribution Curve(Beam Pattern) | Asymmetric / Rectangular Beam | |
| Input Voltage | 100-277Vac | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | ≥ 0.95 | |
| Total Harmonic Distortion(THD) | < 15% | |
| Storage Temperature | -40°C--+80°C | |
| Working Environment | -40°C--+50°C ; 10%-90%RH | |
| Junction Temperature(Tj) | 85°C± 10%(Ta+25°C) | |
| Light Body and Lampshade Material | Aluminum Alloy | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP66 | |
| Net Weight | 8.6 kg | |
| Gross Weight | 9.75 kg | |
| Product Dimension(mm) | 585(L) x 307(W) x 217(H) (mm) | |
| Package Size(mm) | 651(L) x 370(W) x 229(H) (1 PC) | |
