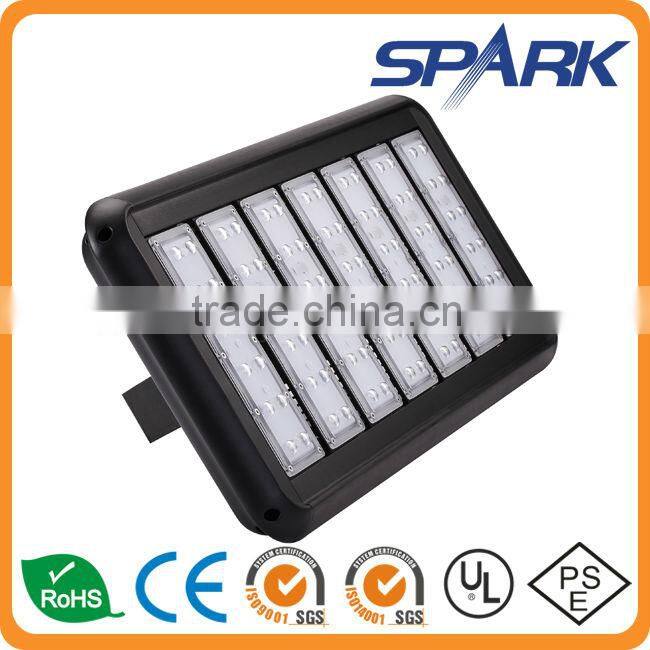

Spark Outdoor LED Tunnel Light With CE 210W

Name: Spark Outdoor LED Tunnel Light With CE 210W
Brand: Spark
SKU: 124758237
Availability: InStock

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

LED Light Source:

CREE

Input Voltage(V):

100-277

Lamp Power(W):

210

Shenzhen Spark Optoelectronics S&T Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source CREE

Input Voltage(V) 100-277

Lamp Power(W) 210

Lamp Luminous Flux(lm) 17850

Lamp Luminous Efficiency(lm/w) 95

IP Rating IP66

Certification CE, CQC, FCC, PSE, UL, VDE

Place of Origin Guangdong, China

Brand Name Spark

Model Number SPT-B210

More than 70% energy saving
Light control and time-phase dimming, further save energy
High quality power supply, reliable and stable, automatically reduce current against overheating temperature
Unique optical design & rectangular beam, suitable for roadway illumination

Model No.		SPT-B210
LED Light Source		CREE
LED Quantity		24 x 1 PCS LED
LED Luminous Efficiency		217 lm/700mA Cool white
Lamp Rated Total Power		210W ± 10%
Lamp Rated Luminous Efficiency		95 lm/w
LED Working Current		700mA
Lamp Rated Total Luminous Flux		17,850 lm ± 10%
Central lllumination and Effective Area	3M Height	6m×7m ≥854LUX
	4M Height	8m×9.5m ≥481LUX
	5M Height	10m×12m ≥308LUX
	6M Height	12m×14m ≥213LUX
Color Rendering Index(CRI)		Ra>70
Power Efficiency		90%
Color Temperature(Color Temperture)		Cool white: 5000-5700K Pure white: 4000-4500K Warm white: 3000-3500K
Beam Angle		Horizontal Axis:100° ; Vertical Axis:90°
Light Distribution Curve(Beam Pattern)		Asymmetric / Rectangular Beam
Input Voltage		100-277Vac
Frequency Range		47-63Hz
Power Factor(PF)		≥ 0.95
Total Harmonic Distortion(THD)		< 15%
Storage Temperature		-40°C--+80°C
Working Environment		-40°C--+50°C ; 10%-90%RH
Junction Temperature(Tj)		85°C± 10%(Ta+25°C)
Light Body and Lampshade Material		Aluminum Alloy
Working Lifetime		> 50,000hrs
IP Rating		IP66
Net Weight		9.7 kg
Gross Weight		10.1 kg
Product Dimension(mm)		669(L) x 307(W) x 217(H) (mm)
Package Size(mm)		737(L) x 370(W) x 229(H) (1 PC)
