Home > Lights & Lighting > LED Outdoor Lighting > LED Tunnel Light > Spark Intelligent Control LED Tunnel Light 150W

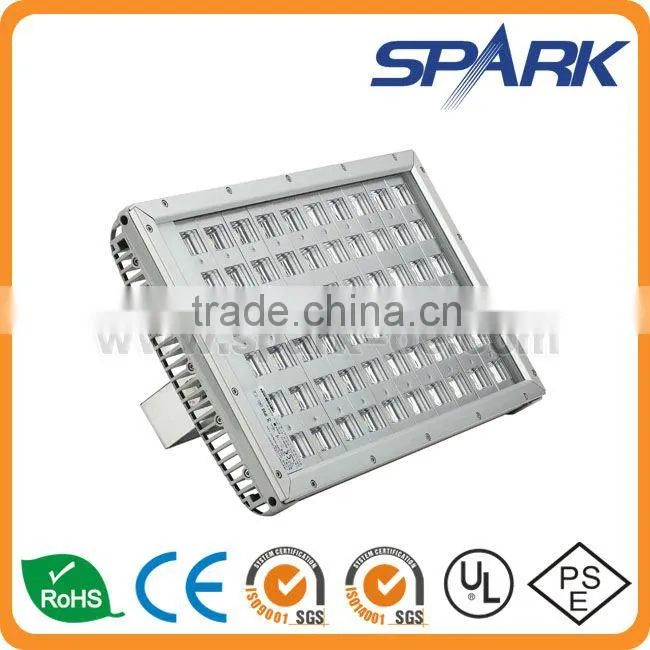

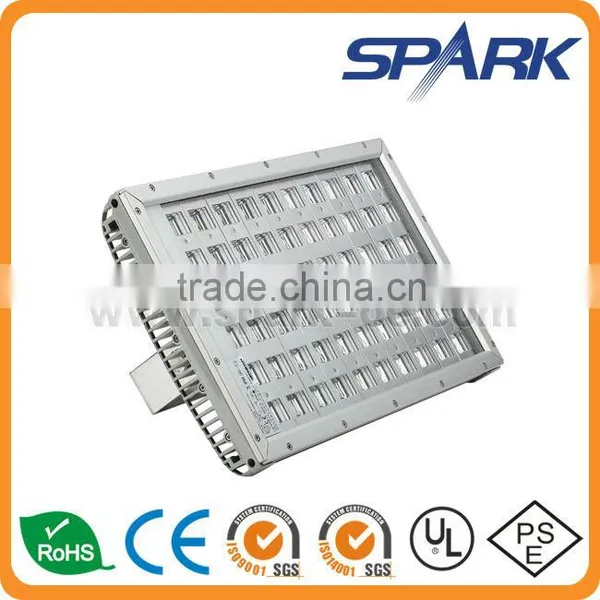

Spark Intelligent Control LED Tunnel Light 150W
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
CREE/Lumileds
Input Voltage(V):
100-277VAC
Lamp Power(W):
150
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spark New Integrated LED Tunnel Light 180WNegotiableMOQ: 2 Pieces -
Spark High Efficiency LED Tunnel Light 60WNegotiableMOQ: 2 Pieces
-
Spark 180W LED High-power Tunnel LightNegotiableMOQ: 2 Pieces
-
Spark Outdoor LED Tunnel Light With CE 210WNegotiableMOQ: 2 Pieces
-
Spark High Power LED Tunnel Light 120WNegotiableMOQ: 2 Pieces
LED Light Source
CREE/Lumileds
Input Voltage(V)
100-277VAC
Lamp Power(W)
150
Lamp Luminous Flux(lm)
12000
Lamp Luminous Efficiency(lm/w)
80
Working Temperature(℃)
-40, 80
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP65
Certification
CE, CQC, FCC, PSE, UL, VDE
Place of Origin
Guangdong, China
Brand Name
Spark LED Tunnel Light
Model Number
SPT-D150
Spark Intelligent Control LED Tunnel Light 150W
Product Description:
1. Die casting aluminum alloy lamp housing with excellent heat dissipation; clear parts are high strength toughened glass; with a good performance of dust resistance, water resistance, and shock resistance.
2. Unique optical design & rectangular beam; every single LED matched with a reflection cup, which will properly control the light distribution, and ensure illumination and uniformity of light, meanwhile, eliminate LED glare.
3. Lamp and power driver are independently assembled with high overall reliability and convenient for maintenance.
Main Technology Index:
| Model No. | SPT-D150 | |
| LED Light Source | CREE/Lumileds | |
| LED Quantity | 60 x 1 PCS LED | |
| LED Luminous Efficiency | 217 lm/700mA Cool white | |
| Lamp Rated Total Power | 150W ± 10% | |
| Lamp Rated Luminous Efficiency | 95 lm/w | |
| LED Driver Current | 700mA | |
| Lamp Rated Total Luminous Flux | 12,000 lm ± 10% | |
| Average lllumination and Effective Area | 3M Height | 6m×7m ≥610LUX |
| 4M Height | 8m×9.5m ≥342LUX | |
| 5M Height | 10m×12m ≥220LUX | |
| 6M Height | 12m×14m ≥152LUX | |
| Color Rendering Index(CRI) | Ra>70 | |
| Power Efficiency | 90% | |
| Color Temperature(Color Temperture) | Cool white: 5000-5700K Pure white: 4000-4500K Warm white: 3000-3500K |
|
| Beam Angle | 100°X90° |
|
| Input Voltage | 100-277VAC | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | ≥ 0.95 | |
| Total Harmonic Distortion(THD) | < 15% | |
| Storage Temperature | -40°C--+80°C | |
| Working Temperature | -40°C--+50°C ; 10%-90%RH | |
| Junction Temperature(Tj) | 85°C± 10%(Ta+25°C) | |
| Light Body Material | Aluminum Alloy | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP65 | |
| Net Weight | 9.35kg | |
| Product Size(mm) | 489(L) x 295(W) x 213(H) (mm) | |
| Package Size(mm) | 559(L) x 365(W) x 231(H) (1 PC) | |
