Hot Sell 5 Gallon pc Blow Moulding Machine

Name: Hot Sell 5 Gallon pc Blow Moulding Machine
Brand: Friendmachinery
SKU: 124739357
Availability: InStock

US$ 20,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Bottle, Machinery & Hardware

Plastic Processed:

Other, PC

Zhangjiagang Friend Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Bottle, Machinery & Hardware

Plastic Processed Other, PC

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name Friendmachinery

Dimension(L*W*H) 5.3*2.7*4.5

Certification CE ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.one step fully automatic
2.injection blow molding machine
3.applied with PP.PE.PS,PC,ABS ect
4.low price

Basic Equipment:KAL82 PC 5 Gallons Bottle Make Machine

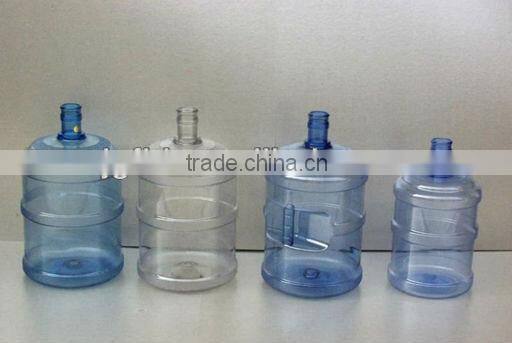

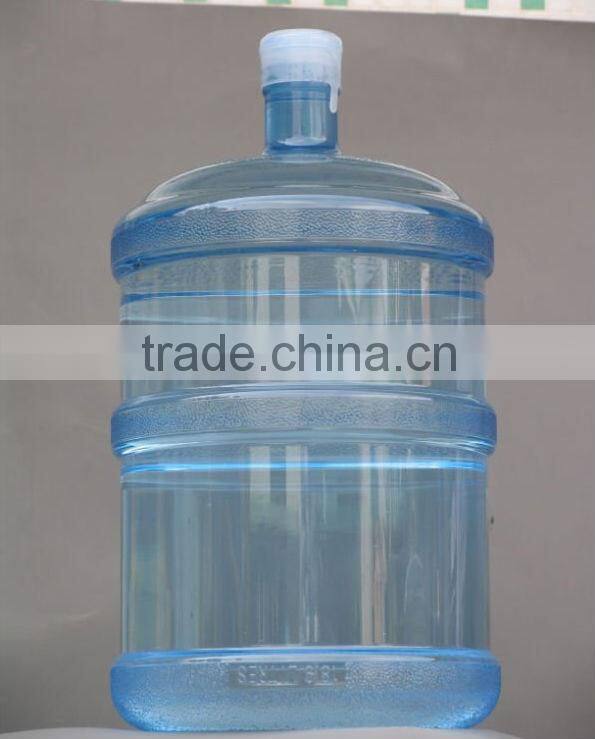

5 gallon water barrel blow mold machine

The main technical parameters

Max container capacity	L	20
Extruder System
Screw Diameter	mm	82
Screw L/D ratio	L/D	30:01:00
Screw Speed	rev. / min.	10~50
Plasticizing Capacity	Seconds/die.	60
Number of heating zone barrel	zone	5
Extruder driving Power of barrel	KW	34
Max Injection quantity	L	1.5
Die Head
Max die diameter	mm	130
Number of heating zone	zone	4
Extruder driving power	KW	8.7
Clamping Device
Platen Size(WxH)	mm	440 x 600
Platen opening stroke	mm	330~780
Clamping force	KN	210
Next blowing Device
Blowing the head off and landing trip	mm	120
Manual control Blowing the head off and landing trip	mm	80
Manipulator
Take pieces of travel	mm	1000
Framework
Lift travel	mm	250
Hydraulic System
Rated pressure of big pump	Mpa	14
Rated flow of big pump	L/min	180
Motor power of Hydraulic pumps	KW	45
Parison Controlling Of Hydraulic Servo System
Rated pressure	Mpa	6
Rated Flow	L/min	22
Motor power of Hydraulic pumps	KW	4
Pneumatical System
Air source pressure	Mpa	1
Working pressure	Mpa	0.8
Air consumption	M3 / min.	0.6
Electrical Control System
Water Supply
Water supply pressure	Mpa	0.3
Power Supply
Voltage	V	AC380V±10%
Frequency	HZ	50
Wire		three phase four wire system
Total of rated power	KW	91.7
Average power consumption	KW.h	45
Total weight	ton	11
Dimension of machine (Lx W x H)	m	5.3×2.7×4.5
