Extrusion Blow Molding Machine For PE PP HDPE PVC Bottle

Name: Extrusion Blow Molding Machine For PE PP HDPE PVC Bottle
Brand: Friendmachinery
SKU: 124739397
Availability: InStock

US$ 15,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

Other, PC PP PE PS

Zhangjiagang Friend Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed Other, PC PP PE PS

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name Friendmachinery

Dimension(L*W*H) 2.5*1.7*2.3(m)

Certification CE ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

PLC+touch screen.
center input die head.
double linear rolling motion guider in moving.
High purity

Plastic bottle making machines price

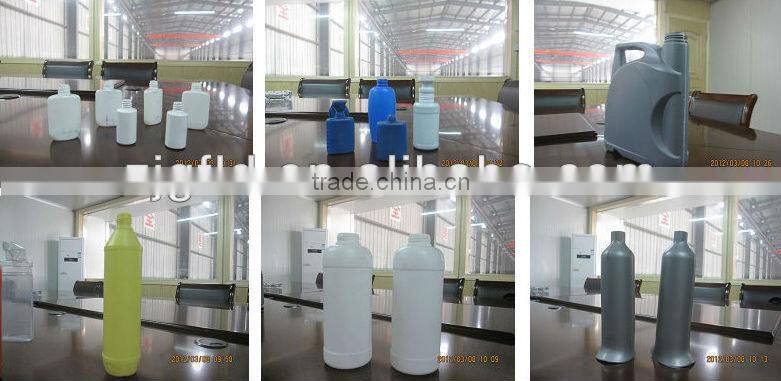

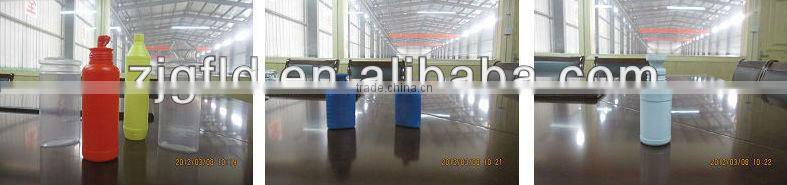

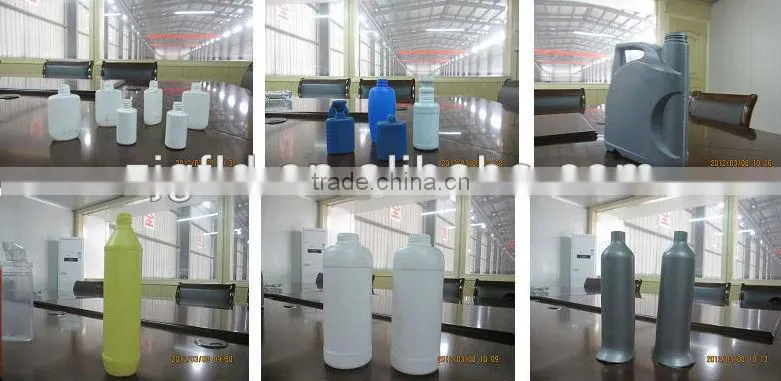

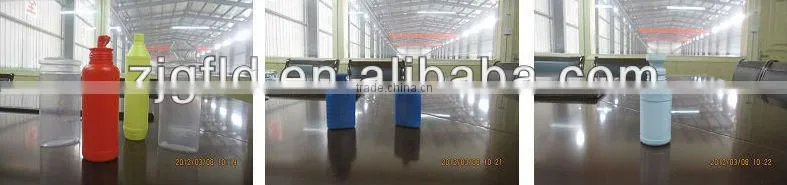

1. Sample specification:Plastic hollow product within 2-5 liters
2. Material:HDPE,PP

Plastic bottle making machines price

We customise mould and machine according customer's special requirement, Welcome customer contact with us directly .

Machine Details

Parameters

Specifications	Units	KAL50series
Material		PE.PP.PVC.PA...
Max container capacity	L	2
Number of die	set	1.2.3.4
Output(Dry Cycle)	Pc/hr	1500
Machine dimension(L×W×H)	M	2.5×1.7×2.3
Total weight	ton	3.2
Clamping unit
Clamping force	KN	40
Platen opening stroke	mm	128-368
Platen size	mm	300×320
Max mould size(W×H)	mm	300×320
Mould thickniss	mm	153-300
Power
Max drive	KW	16.5
Total power	KW	22
Fan power for screw	KW	0.14×3
Air pressure	Mpa	0.6
Air consumption	m³/min	0.4
Average energy consumption	KW	12
Extruder unit
Screw diameter	mm	50
Screw L/D ratio	L/D	22
Plasticsing capacity	Kg/hr	35
Number of heating zone	zone	3
Extruder heating power	KW	4.2
Extruder driving power	KW	5.5
Die-head
Number of heating zone	Zone	3
Power of die heating	KW	1.8
Max die pin diameter	mm	100
Center distance of double die	mm	130
Center distance of tri-die	mm	90
Center distance of tetra-die	mm	60/80

Basic Equipment

Clamping system	Single translation+High-percision guide+Large arm cylinder axle
Extruder unit	Hard gear box+Inverter
Die system	Control-incoming die with special steel
Hydraulic system	Hydraulic valve,Seal parts and Proportional control
Control system	Import PLC+Human-machine+PLC automatic temperture control model
