PVC Planetary Cutting Machine/plastic Pipe Cutter Quality Choice

PVC Planetary Cutting Machine/plastic Pipe Cutter Quality Choice thumbnail-1
PVC Planetary Cutting Machine/plastic Pipe Cutter Quality Choice photo-1
US$ 900 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hydraulic Cutting Machine, Plastic Planetary Cutter
Application:
PVC,PE ,HDPE
Contact Supplier Request Quote Chat Now
Zhangjiagang Friend Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Hydraulic Cutting Machine, Plastic Planetary Cutter
Application PVC,PE ,HDPE
Place of Origin Jiangsu, China
Brand Name Friend machinery
Model Number Pipe cutter
Rated Power 1.5-2.2KW
No-Load Rotational Speed 1.5-4m/min
Saw Blade Diameter 180mm
Max. Cutting Depth 40mm
Dimensions 50-160mm
Voltage 380V 50HZ
Power(W) 800W
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

It is mainly used in cutting plastic pipe profile which is transferred by haull-off according to the demand cutting.

Product Description

It is applicable to cleaning plane glass with thickness of 3-25mm and width of 800-2500mm lt has various specifications. Cleaning and gripping thickness is 3-12mm which is regulated automatically Glass conveying speed can be adjusted within the range of 0.5m/min-4m/min Cleaning water can be circulated for use. Temperature of hot air is adjustable/ Drying adopts cold and hot ai r to ensure complete drying of glass There is optical inspection at discha rge section Disk brush cleanser is very effective for f"mlnq glass and mirror.

model no.

XQG-250

XQG-400

XQG-630

cutting method

Planet circular type

clamping method

Griped block pneumatic clamping

suitable pipe diameter(mm)

160-250

200-400

400-630

cutting motor power(kw)

                3

suction motor power(kw)

              1.1

revolution motor power(kw)

               1.5

inlet blade motor power(kw)

2.2

2.2

5.5

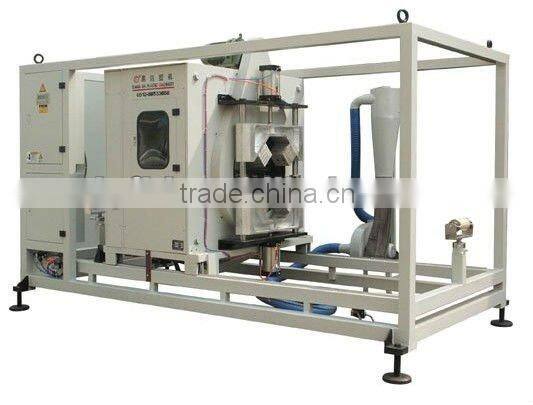

PVC Planetary cutting machine/plastic pipe cutter
