Specifications
Pipe Vacuum Calibrating Tank1. stainless steel material made.
2. High vacuum effect

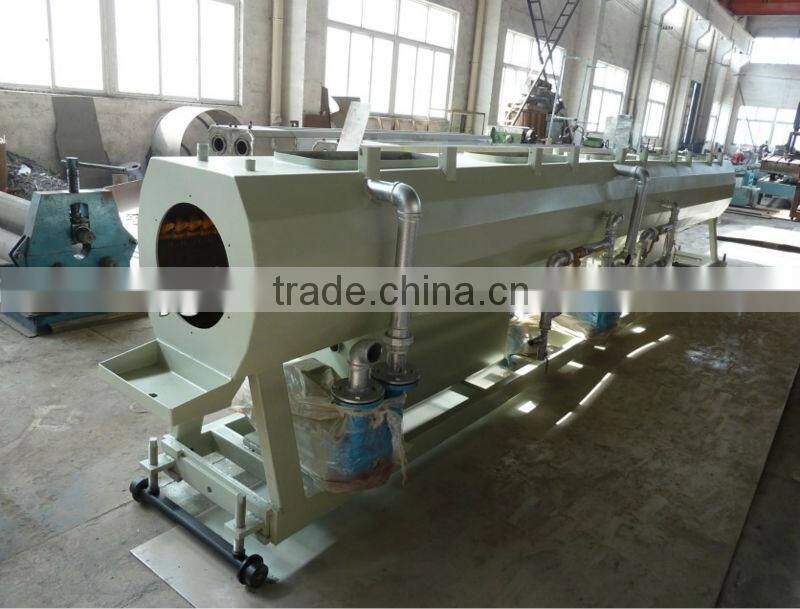

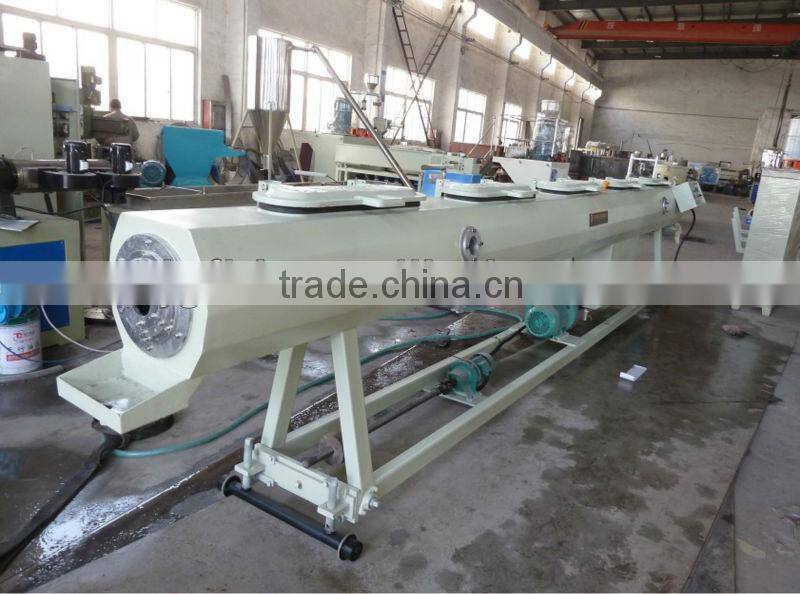

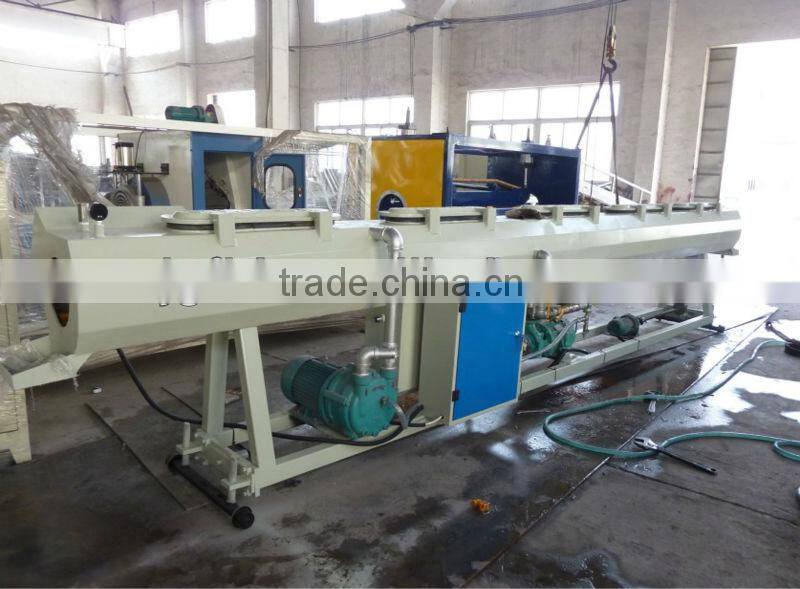

Pipe Vacuum Calibrating Tank
Pipe Vacuum Calibrating Tank are one of the important stage of plastic pipe extrusion lines.
for PE, PP, PVC, Dripping pipe lines
Pipe Vacuum Cooling Tank are one of the important stage of plastic pipe extrusion lines.
Pipe Vacuum Calibrating Tank applies vacuum to calibrate the pipes at defined diameter and also avoids pipes to have ellipse shape while producing.

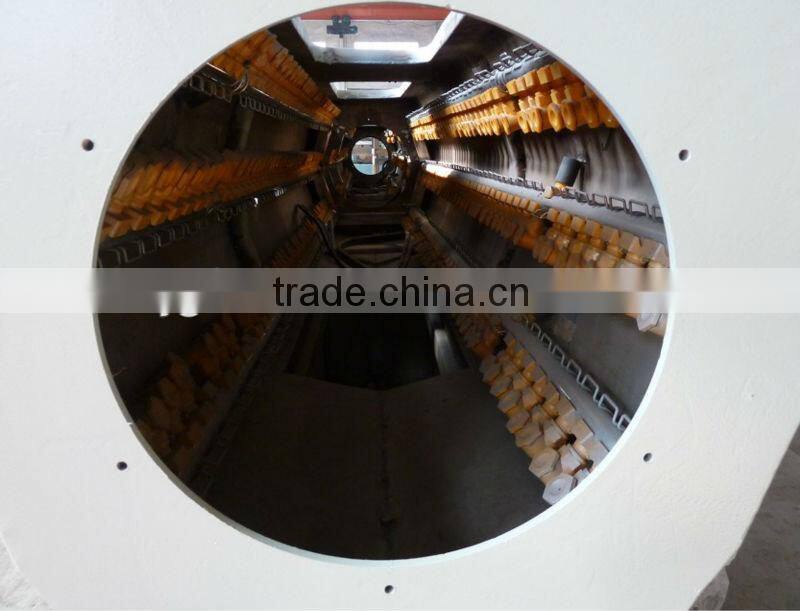

Also pipes and calibrating sleeves are cooled effectively by nozzles which are inside the tanks.
l Length |
6000 mm |
l Material inside |
4mm stainless steel |
l Cooling Type |
Spray-pouring cooling |
l Up-down Adjusting Range |
±120 mm |
|
l Left-right Adjusting Range
|
±50 mm |
l Motion Range of To and Fro |
±600 mm, Motor drive |
|
l Vacuum Pump Power
|
4kw |
|
l Water Pump
|
4kw |
l Pipe Diameter |
50~200 mm |
|
l Axes line height
|
1000 mm |
|
l Element of Electric System
|
Siemens |
l Size |
6500×800×1200mm |
