Specifications
20KW Piston Air MotorLocal Lever Control
Internal Planetary Gearbox / Internal Disc Brake
QPQ Treatment
Modular Drum Guard
"HONGXIN" Brand Ingersoll Rand Type 10 ton Air Winch
Main Technical Parameters:
1. Model No.: QJH100PKHBG-29-300
2. Air Pressure: 0.62-1.0 MPa
3. Rated Pull Force(Top Layer): 100 KN
4. Rope Speed: 0-7 m/min
5. Max Air Consumption: 19.8 m³/min (700 CFM)
6. Drum Dia.: 508 mm
7. Drum Flange Size: Dia.965 mm
8. Drum Width: 610 mm
9. Wire Rope Dia.: 29 mm
10. Rope Capacity: 300 m
11. Outline Diamension: 1740*1236*1198 mm
12. Winch Weight(Exclude Wire Rope): 1800 kg
Main Structures:
1. 20KW Piston Air Motor
2. Automatic Disc Brake
3. Sun Planetary Gearbox
4. 3-Stage Planetary Reduction Gear with QPQ Treatment
5. Handwheel Drum Brake
6. Local Level Control
7. Modular Drum Guard
8. 2 Exhaust Ports Design
Winch's Spare Parts(Provided with Winch Free)
1. Piston Air Motor's Spare Parts: Compression Rings(10 pcs),Oil Rings(5 pcs)
2. Automatic Disc Brake's Spare Parts: Friction Plates(5 pcs)
3. Handwheel Drum Brake's Spare Parts: Brake lining(1 set)
4. Winch Exhaust Port's Spare Parts: Muffler Fitted(2pcs)
5. FRL Unit: Filter-Regulator-Lubricator(1set)
6. Winch Operation & Maintenance Manual in English: (1booklet)

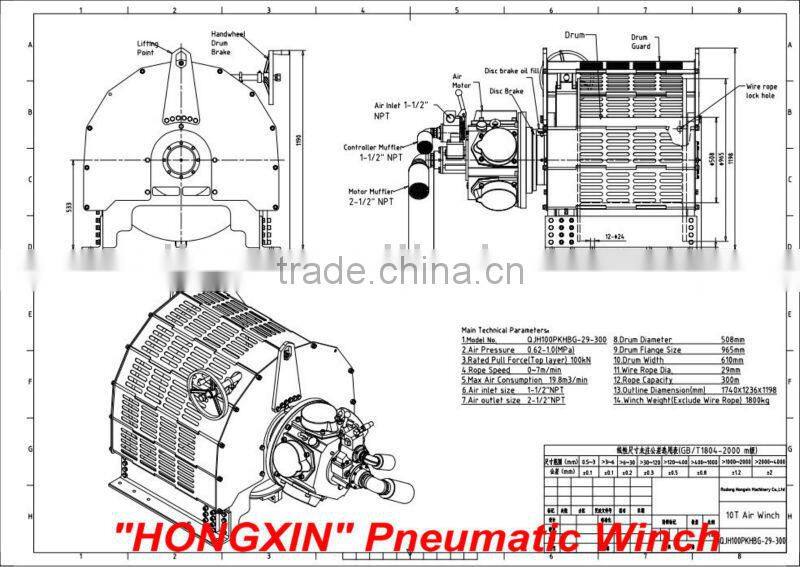

Winch Drawing For QJH100PKHBG-29-300 "HONGXIN" Brand Ingersoll Rand Type 10 ton Pneumatic Winch

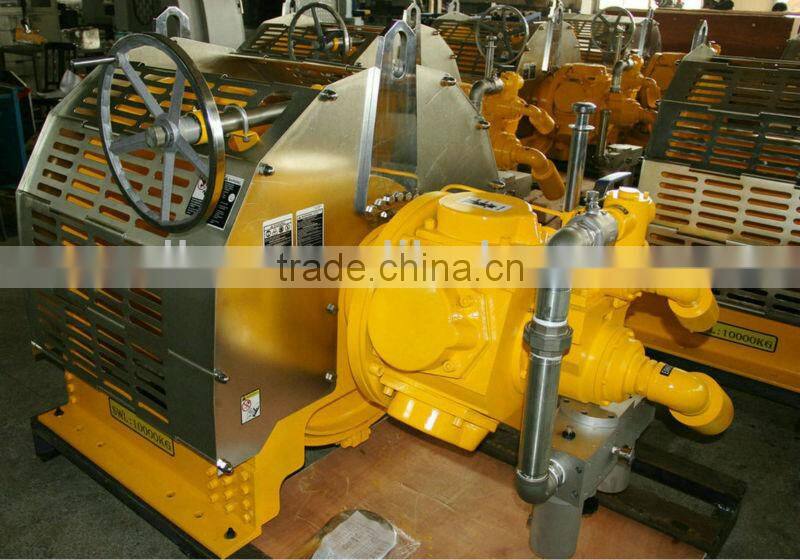

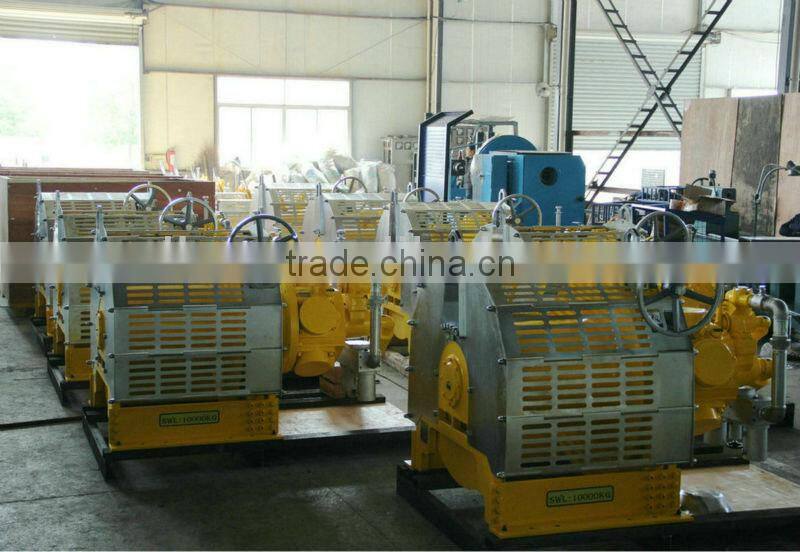

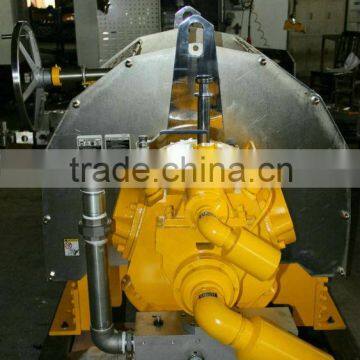

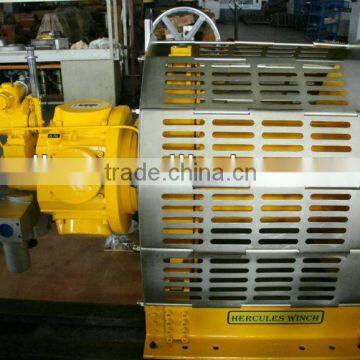

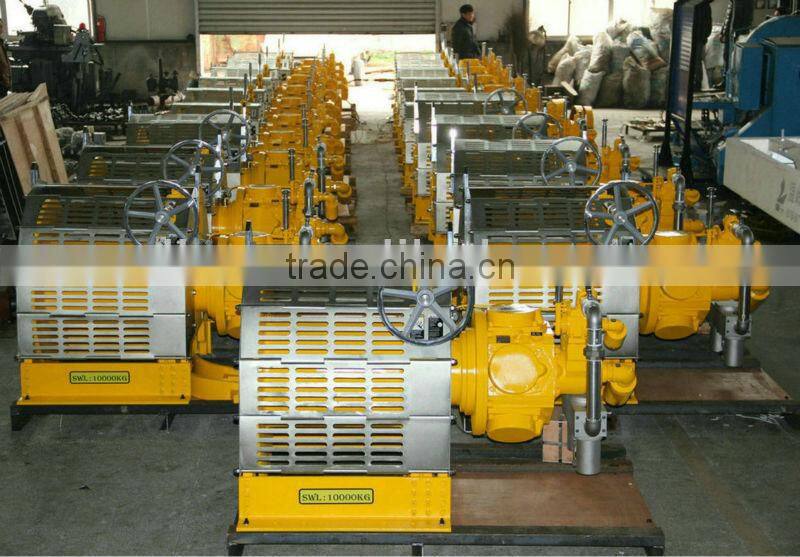

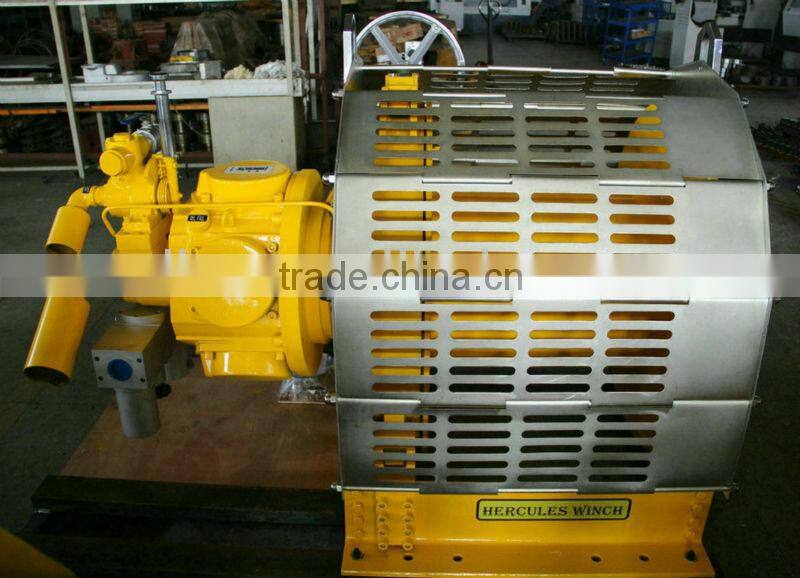

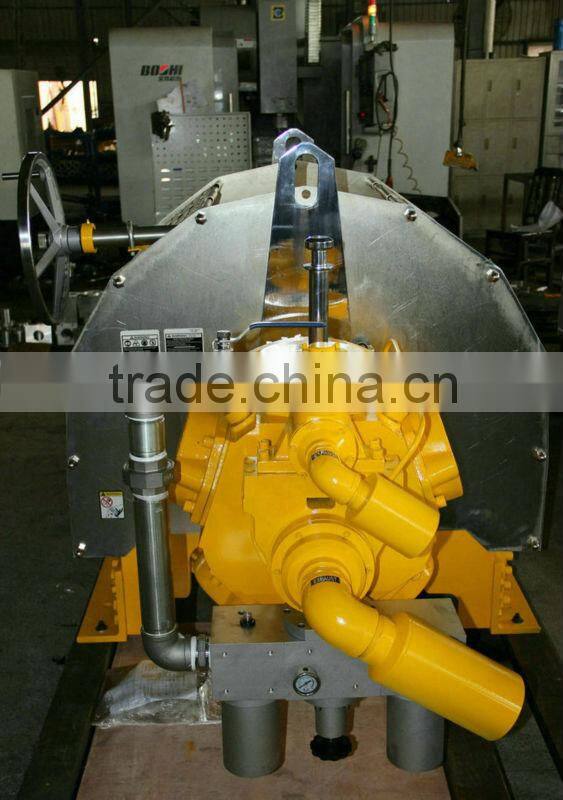

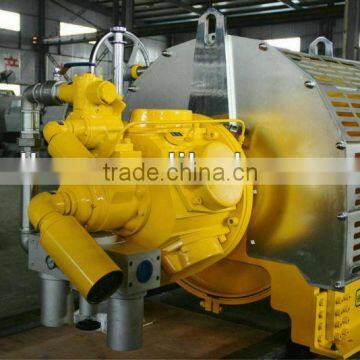

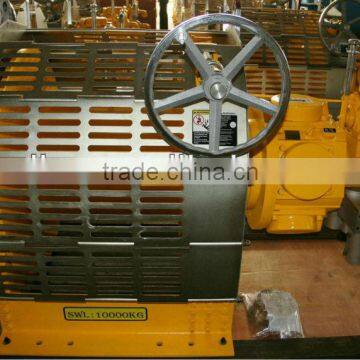

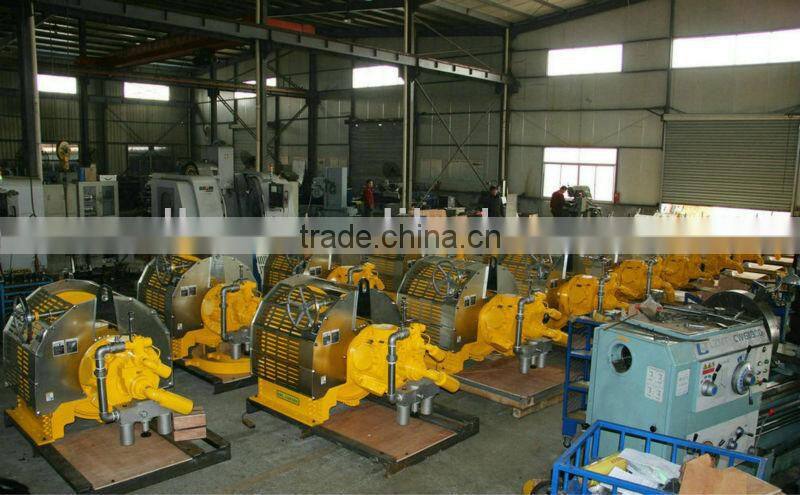

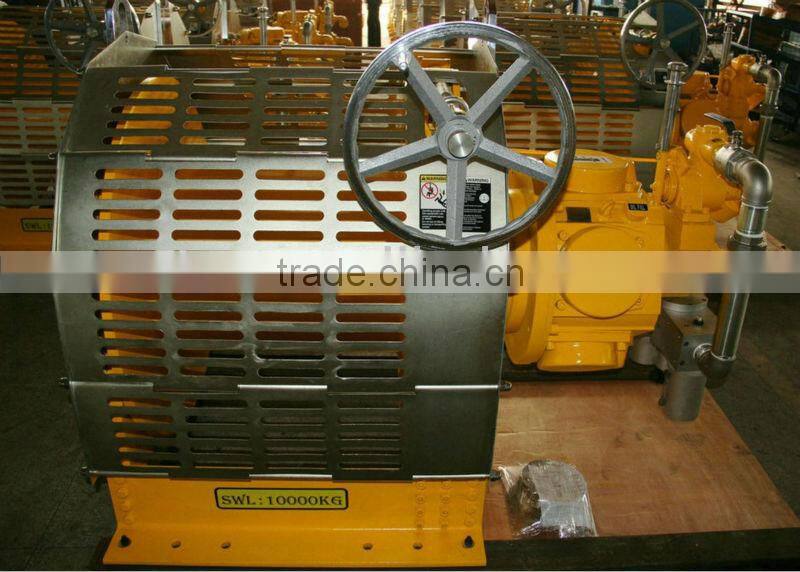

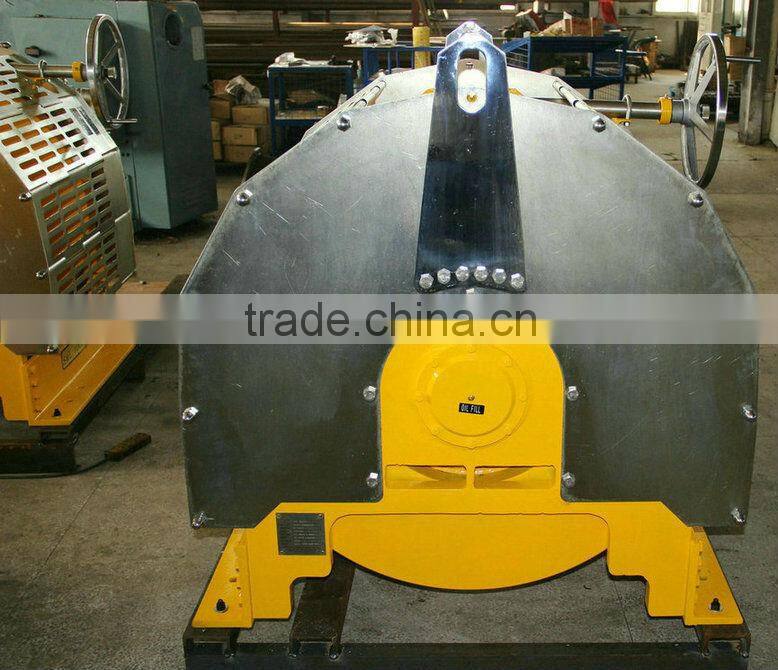

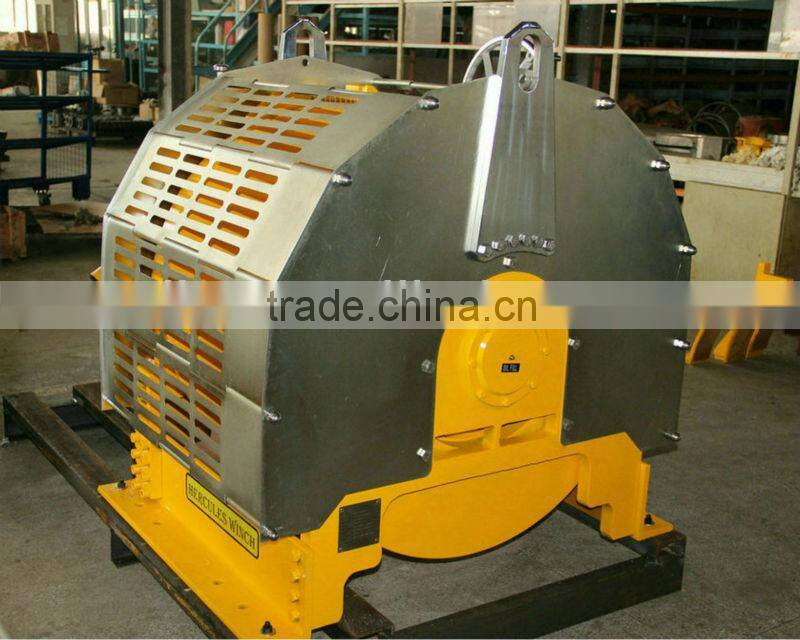

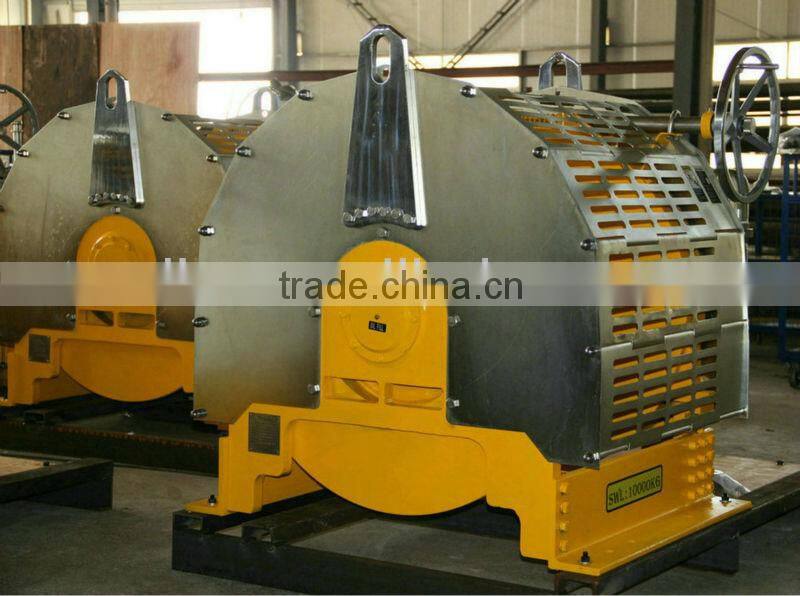

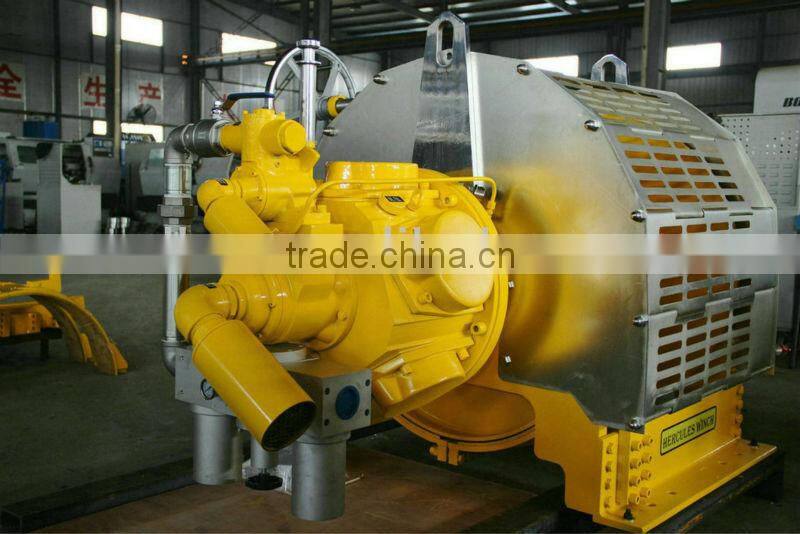

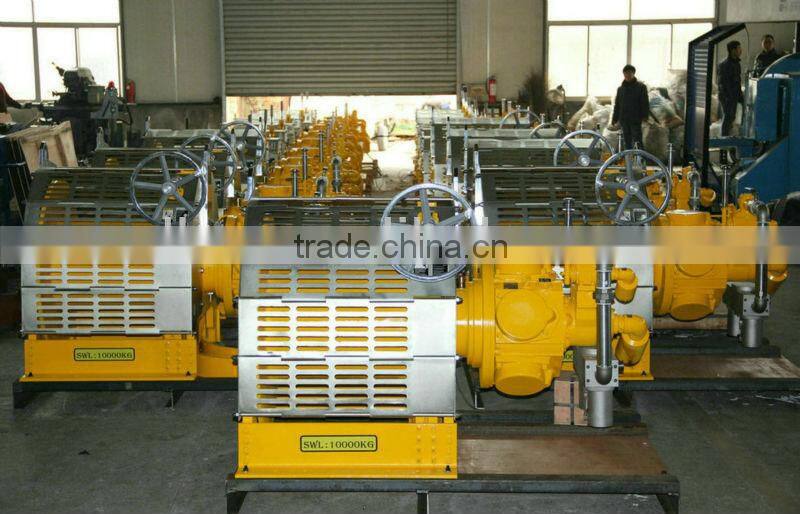

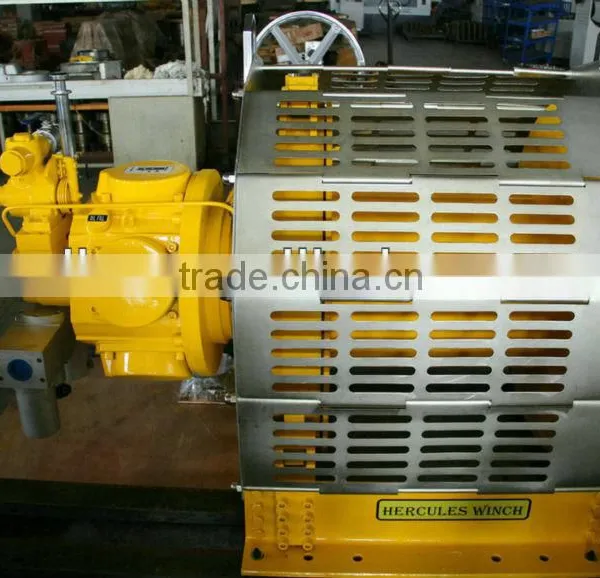

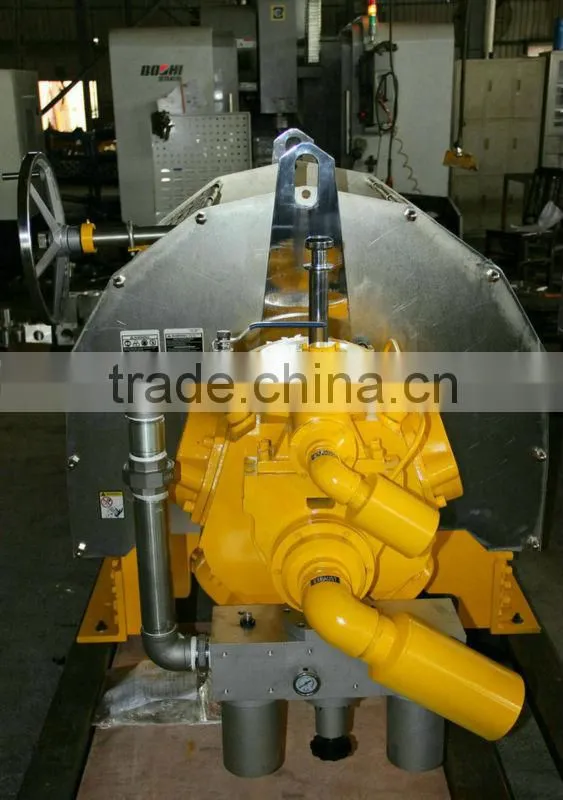

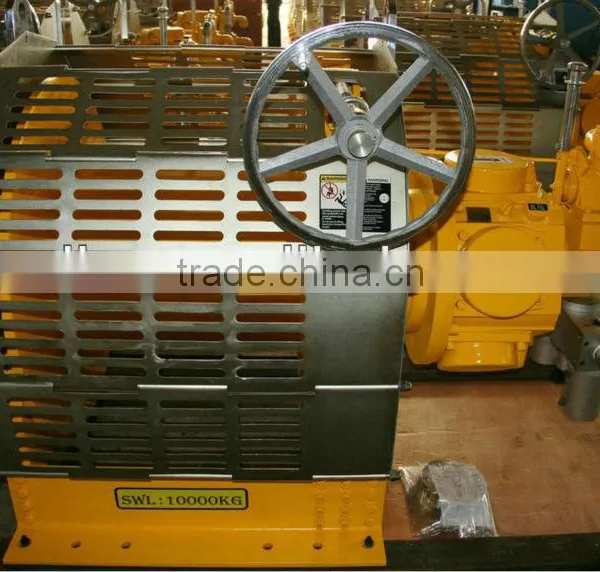

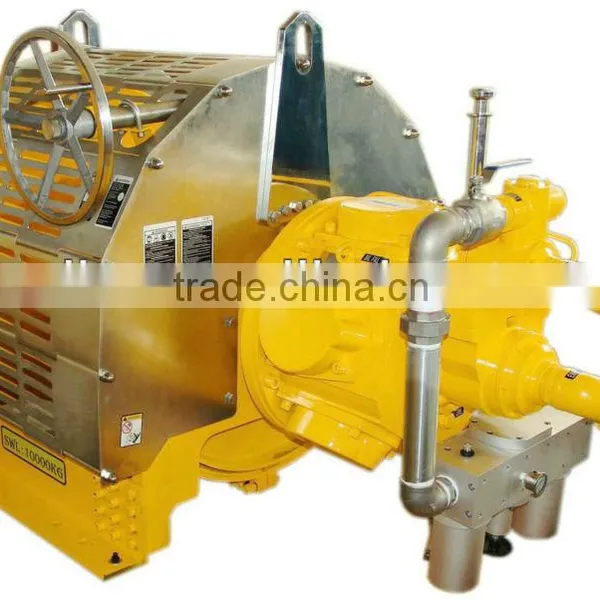

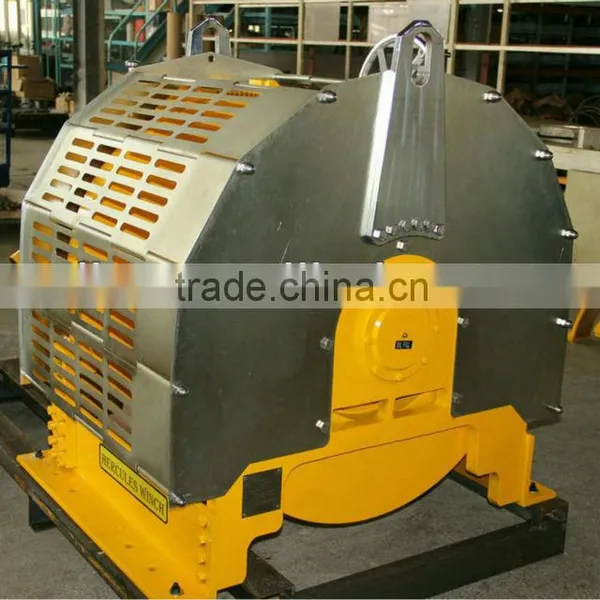

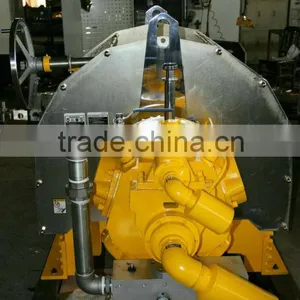

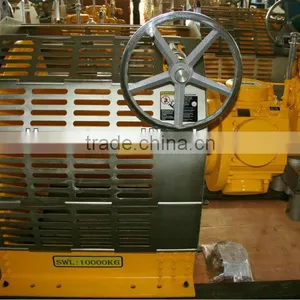

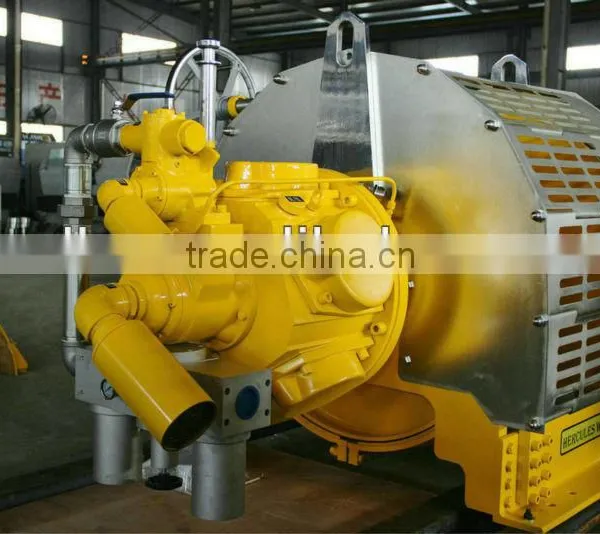

10T Air Winch Real Product Show:
