5KN Wire Rope Piston Motor Air Winches
US$ 2,500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONGXIN
Model Number:
QJH5B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10KN,1Ton Capacity,Automatic Air Cylinder Brake,Pneumatic Air Winch Quality ChoiceUS$ 2,000 - 4,500MOQ: 1 Set -
5 Ton Planetary Reducer Air WinchUS$ 10,000 - 25,000MOQ: 1 Set
-
QJH150PACMB-25-150 15T Marine Mooring Air WinchesNegotiableMOQ: 1 Set
-
5T Pneumatic Capstan WinchNegotiableMOQ: 1 Set
-
HXQJH60 Speed Regulation Air Boat Lift WinchNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONGXIN
Model Number
QJH5B
Usage
Other, Mining,Offshore,Petrol Chemical
Power Source
Pneumatic
Sling Type
Wire Rope
Maximum Lifting Weight
500kgs
Maximum Lifting Height
90m
Lift Speed
48m/min
Specifications
5KN air winches1.Compact and rugged design
2.Excellent quality with suitable price
3.Domestic advanced
4.HONGXIN Brand

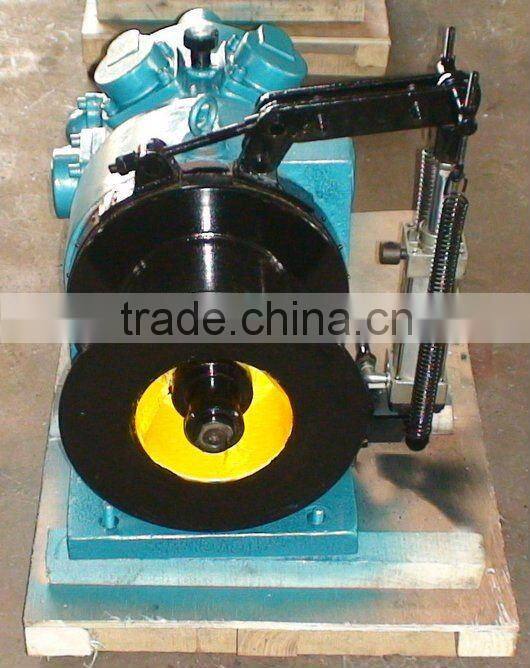

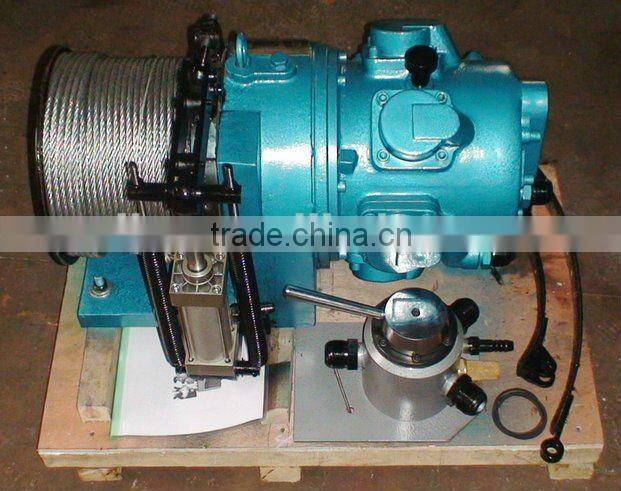

5KN wire rope piston motor air winches
"Hongxin” pneumatic winches are specially designed and built to serve the materials handling needs of all industrial, marine, construction, offshore, mining, petrol chemical and all other Industries.
Main Technical Parameters for 5KN air winch:
Description |
Parameter |
|
Model |
QJH5B |
|
Working pressure |
0.6~0.9 MPa |
|
Rated Line Pull |
5 kN |
|
Max. Lifting speed |
48 m/min |
|
Air Motor |
Rated power |
3.98 kW |
Cylinder diameter |
65 mm |
|
Cylinder number |
6pcs |
|
Piston stroke |
50 mm |
|
Drum |
Diameter |
175 mm |
Width |
175 mm |
|
Flange diameter |
290 mm |
|
Rope diameter |
8 mm |
|
Rope capacity |
90 m |
|
Outline dimensions |
Length |
683 mm |
Width |
406 mm |
|
Height |
484 mm |
|
Weight |
172 kg |
|
